Schneider Electric Handle Selector Switch - (1 NO/1 NC) 22 mm Cutout Diameter Illuminated 3 Positions
- N° de stock RS:
- 276-2584
- Référence fabricant:
- XB5AK133M5C0
- Fabricant:
- Schneider Electric
Indisponible
RS n'aura plus ce produit en stock.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
29,84 €
(TVA exclue)
36,11 €
(TVA incluse)
- N° de stock RS:
- 276-2584
- Référence fabricant:
- XB5AK133M5C0
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Number of Positions | 3 | |
| Product Type | Selector Switch | |
| Actuator Type | Handle | |
| Contact Configuration | 1 NO/1 NC | |
| IP Rating | IP67, IP66 | |
| Angle of Throw | 45 ° | |
| Series | Harmony XB5 | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw Clamp | |
| Illuminated | Yes | |
| Standards/Approvals | CSA C22.2 No 14, LROS, JIS C8201-5-1, CSA, JIS C8201-1, UL, NEMA 4X, IEC 60947-5-4, IP67, UL 508, REACH, DNV, RoHS, NEMA 13, IEC 60947-5-1, GL, IEC 60947-1, IK04, BV | |
| Switch Operation | Stay Put | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Number of Positions 3 | ||
Product Type Selector Switch | ||
Actuator Type Handle | ||
Contact Configuration 1 NO/1 NC | ||
IP Rating IP67, IP66 | ||
Angle of Throw 45 ° | ||
Series Harmony XB5 | ||
Cutout Diameter 22mm | ||
Terminal Type Screw Clamp | ||
Illuminated Yes | ||
Standards/Approvals CSA C22.2 No 14, LROS, JIS C8201-5-1, CSA, JIS C8201-1, UL, NEMA 4X, IEC 60947-5-4, IP67, UL 508, REACH, DNV, RoHS, NEMA 13, IEC 60947-5-1, GL, IEC 60947-1, IK04, BV | ||
Switch Operation Stay Put | ||
Statut RoHS : Exempté
- Pays d'origine :
- FR

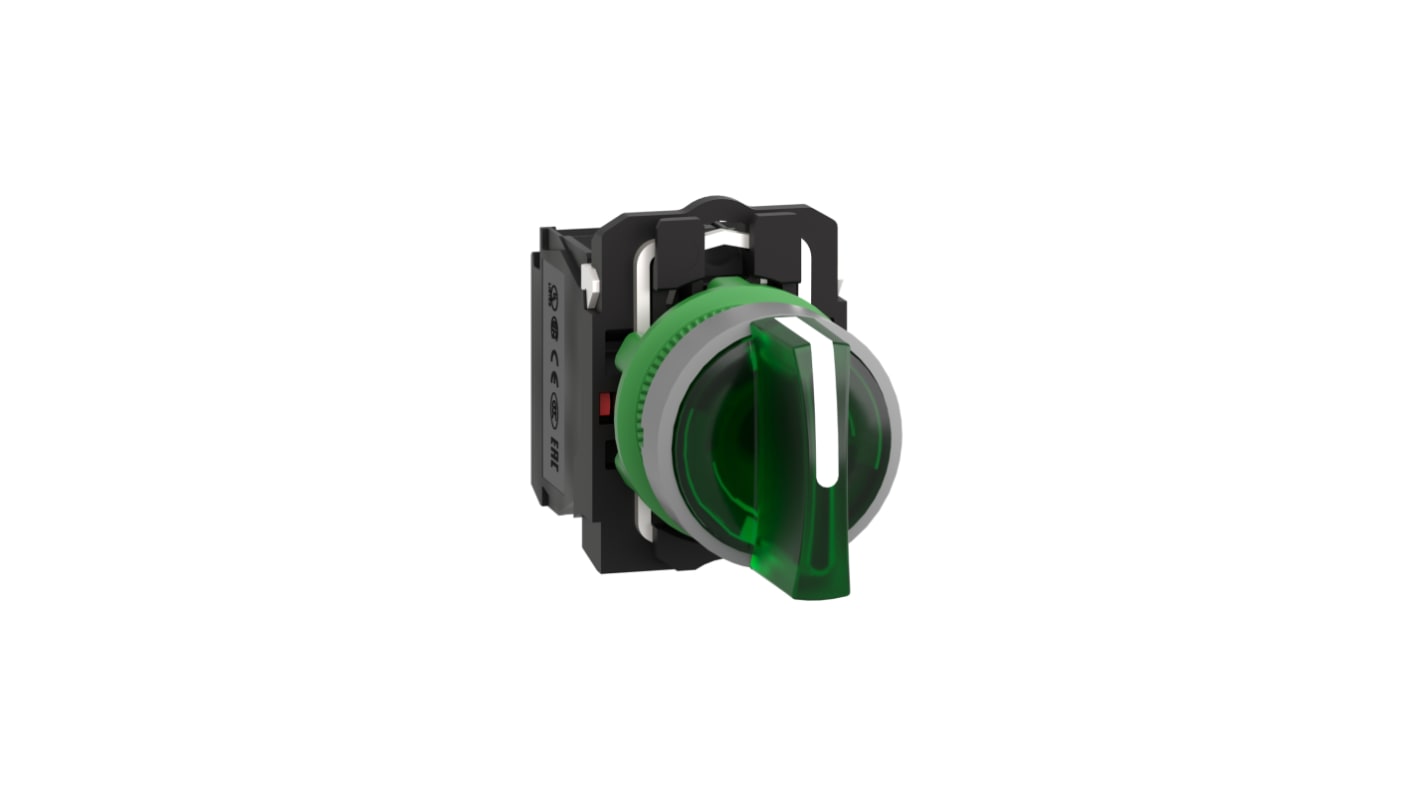

The Schneider Electric Illuminated selector switch has a 22 mm diameter makes it suitable for standard panel cut outs, and the green handle with a grey bezel provides clear visual indication. The switch features a stay put design, and its universal LED enhances visibility. With both AC and DC voltage compatibility, it offers flexibility for various applications. The switch is resistant to high pressure washing, making it suitable for use in challenging conditions. The positive opening feature enhances safety, and the switch is built to endure 500000 mechanical cycles. The specified tightening torque ensures proper installation according to IEC standards.
Mercury free
RoHS compliant
IK05 conforming to IEC 50102
IP66 and IP67 degree of protection
