Schneider Electric Selector Switch - (2 NO) 22 mm Cutout Diameter 3 Positions
- N° de stock RS:
- 276-2566
- Référence fabricant:
- XB5AG03C0
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
50,38 €
(TVA exclue)
60,96 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 20 unité(s) expédiée(s) à partir du 27 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 50,38 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 276-2566
- Référence fabricant:
- XB5AG03C0
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Number of Positions | 3 | |
| Product Type | Selector Switch | |
| Contact Configuration | 2 NO | |
| Housing Material | Gold, Plastic, Silver Alloy, Nickel | |
| IP Rating | IP67, IP66 | |
| Angle of Throw | 45 ° | |
| Series | Harmony | |
| Cutout Diameter | 22mm | |
| Terminal Type | Screw Clamp | |
| Standards/Approvals | IEC 60947-5-4, DNV, JIS C8201-1, GL, CSA, UL, EU RoHS Directive, LROS (Lloyds register of shipping), JIS C8201-5-1, BV, IEC 60947-1, IEC 60947-5-1, REACh Regulation, CSA C22.2 No 14, UL 508 | |
| Depth | 96mm | |
| Height | 42mm | |
| Width | 30mm | |
| Switch Operation | Stay Put | |
| Hazardous Area Certification | NO | |
| Key Type | 455 | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Number of Positions 3 | ||
Product Type Selector Switch | ||
Contact Configuration 2 NO | ||
Housing Material Gold, Plastic, Silver Alloy, Nickel | ||
IP Rating IP67, IP66 | ||
Angle of Throw 45 ° | ||
Series Harmony | ||
Cutout Diameter 22mm | ||
Terminal Type Screw Clamp | ||
Standards/Approvals IEC 60947-5-4, DNV, JIS C8201-1, GL, CSA, UL, EU RoHS Directive, LROS (Lloyds register of shipping), JIS C8201-5-1, BV, IEC 60947-1, IEC 60947-5-1, REACh Regulation, CSA C22.2 No 14, UL 508 | ||
Depth 96mm | ||
Height 42mm | ||
Width 30mm | ||
Switch Operation Stay Put | ||
Hazardous Area Certification NO | ||
Key Type 455 | ||
Statut RoHS : Exempté
- Pays d'origine :
- FR

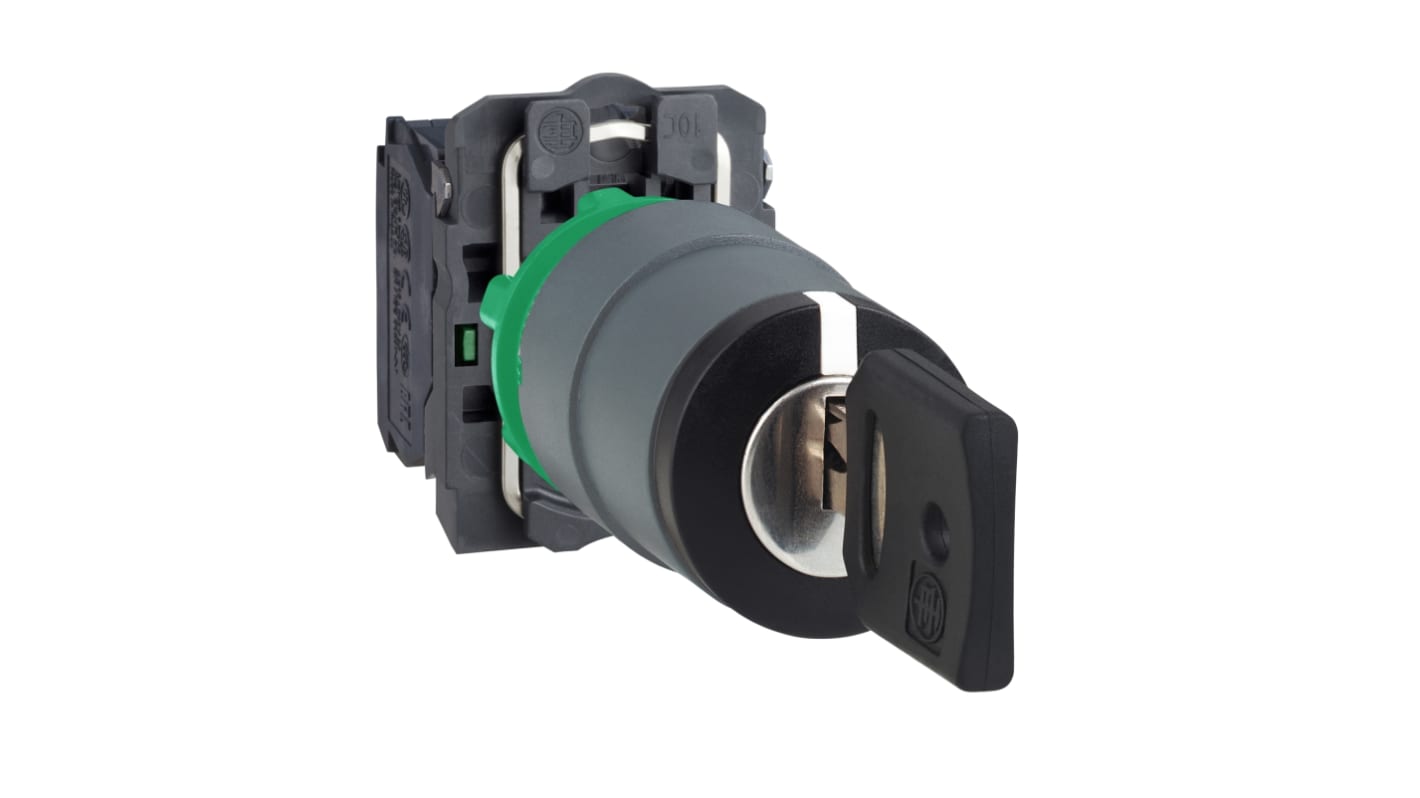

The Schneider Electric modular black key selector switch (key no.455) has 3 positions, operates with a stay-put mechanism with key withdrawal on left, centre and right position and uses screw-clamp terminals. This key selector switch provides a versatile interface for controlling your machines.
Impact resistant
Dust resistant
Water resistant
Corrosion resistant
Vibration resistant
