Siemens Short Black Handle Selector Switch - (SPDT) 22 mm Cutout Diameter Illuminated 2 Positions
- N° de stock RS:
- 181-2853
- Référence fabricant:
- 3SU1100-2BF60-3MA0
- Fabricant:
- Siemens
Sous-total (1 unité)*
32,12 €
(TVA exclue)
38,87 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 2 unité(s) prête(s) à être expédiée(s)
- Plus 3 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 32,12 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 181-2853
- Référence fabricant:
- 3SU1100-2BF60-3MA0
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Number of Positions | 2 | |
| Product Type | Selector Switch | |
| Actuator Type | Short Black Handle | |
| Contact Configuration | SPDT | |
| IP Rating | IP66, IP69, IP67 | |
| Angle of Throw | 90 ° | |
| Series | SIRIUS ACT 3SU11 | |
| Cutout Diameter | 22mm | |
| Terminal Type | Spring Terminal | |
| Illuminated | Yes | |
| Standards/Approvals | RoHS | |
| Switch Operation | Latching | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Number of Positions 2 | ||
Product Type Selector Switch | ||
Actuator Type Short Black Handle | ||
Contact Configuration SPDT | ||
IP Rating IP66, IP69, IP67 | ||
Angle of Throw 90 ° | ||
Series SIRIUS ACT 3SU11 | ||
Cutout Diameter 22mm | ||
Terminal Type Spring Terminal | ||
Illuminated Yes | ||
Standards/Approvals RoHS | ||
Switch Operation Latching | ||
- Pays d'origine :
- DE

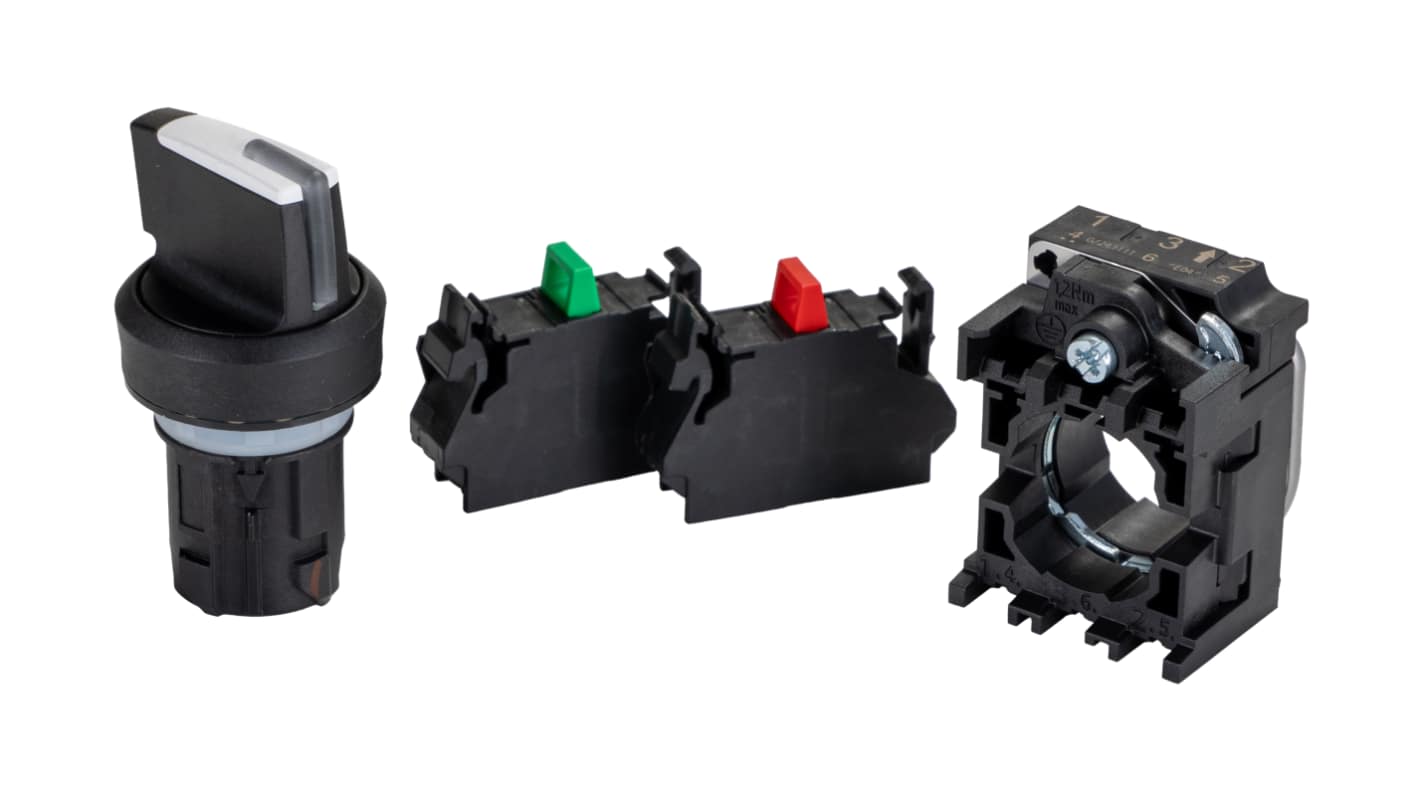

Siemens Selector Switch, 22mm Cutout Diameter, 10A Max Current - 3SU1100-2BF60-3MA0
This illuminated selector switch is designed for controlling electrical circuits with a user-friendly mechanism. It has a short black handle for easy operation, and the durable plastic body measures 22mm. This unit provides reliable switching capabilities, making it suitable for various industrial applications.
Features & Benefits
• Illuminated design improves visibility in low-light conditions
• 90° latching operation ensures stable position control
• Robust plastic construction enhances durability in challenging environments
• SPDT configuration allows for flexible circuit management
• Compatible with spring-loaded terminals for straightforward installation
• Rated for high voltages up to 500V for effective performance
Applications
• Suitable for that require frequent switching
• Can be used in electrical enclosures and panels
• Employed in control circuits for industrial equipment
Can it withstand extreme temperatures?
Yes, it operates effectively from -25°C to +70°C.
Is it suitable for both AC and DC voltages?
Yes, this switch supports operating voltages of 5V to 500V.
Will it maintain performance in damp conditions?
Yes, it is rated with a protection class of IP66, IP67, and IP69K.
