Schneider Electric Stay Put, Handle Rotary Switch Selector Switch - (1 CO) 16 mm Cutout Diameter 2 Positions
- N° de stock RS:
- 177-535
- Numéro d'article Distrelec:
- 304-10-520
- Référence fabricant:
- XB6EAD221P
- Fabricant:
- Schneider Electric
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
15,84 €
(TVA exclue)
19,17 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 32 unité(s) prête(s) à être expédiée(s)
- Plus 17 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 15,84 € |
| 5 - 9 | 15,37 € |
| 10 + | 14,86 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 177-535
- Numéro d'article Distrelec:
- 304-10-520
- Référence fabricant:
- XB6EAD221P
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Rotary Switch Selector Switch | |
| Number of Positions | 2 | |
| Actuator Type | Stay Put, Handle | |
| Contact Configuration | 1 CO | |
| IP Rating | IP65 | |
| Series | Harmony XB6 | |
| Cutout Diameter | 16mm | |
| Standards/Approvals | IEC 60947-1 IEC 60947-5-1 JIS C 4520 JIS C 852 UL 508 CSA C22.2 No 14 | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Rotary Switch Selector Switch | ||
Number of Positions 2 | ||
Actuator Type Stay Put, Handle | ||
Contact Configuration 1 CO | ||
IP Rating IP65 | ||
Series Harmony XB6 | ||
Cutout Diameter 16mm | ||
Standards/Approvals IEC 60947-1 IEC 60947-5-1 JIS C 4520 JIS C 852 UL 508 CSA C22.2 No 14 | ||
Statut RoHS : Exempté
- Pays d'origine :
- CN

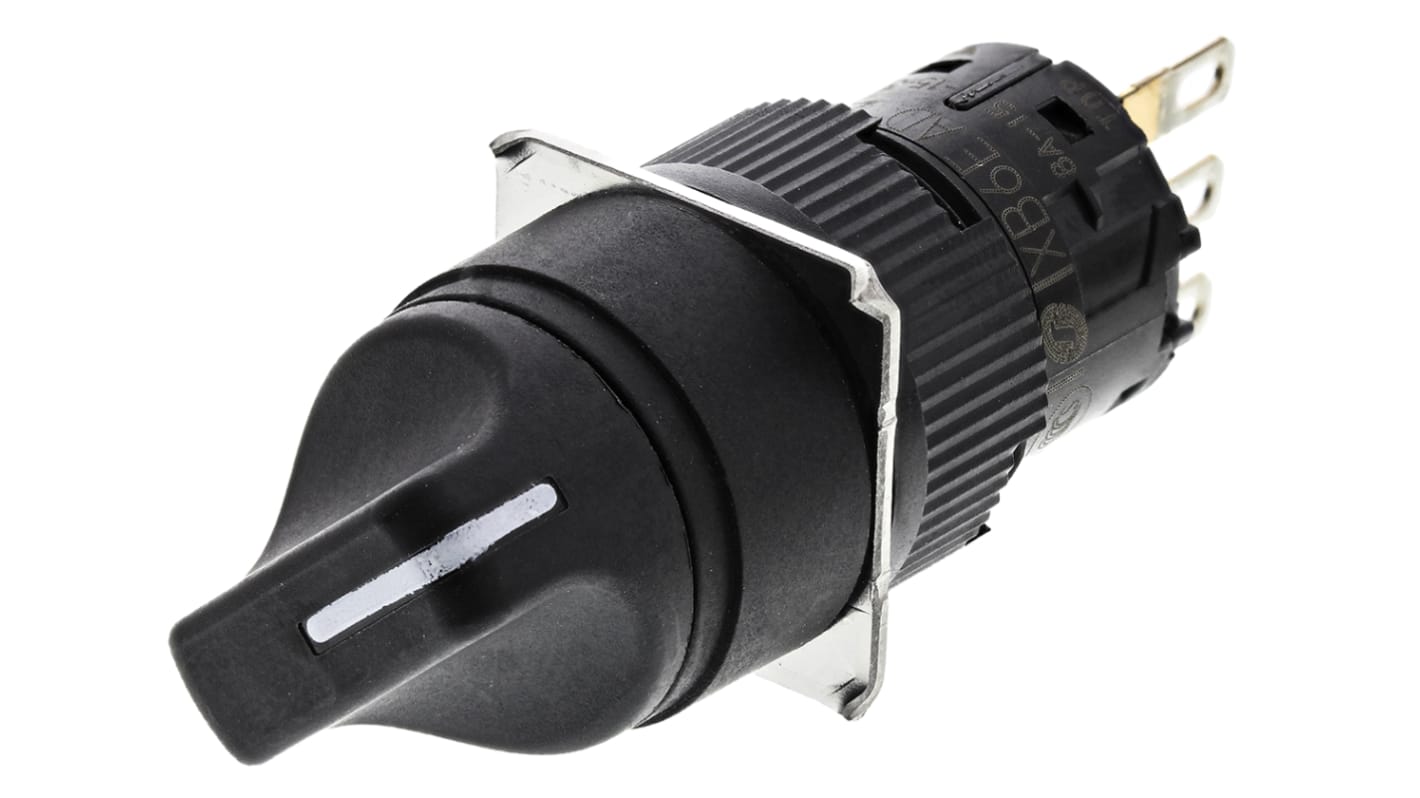

Schneider Electric Harmony XB6 Series Rotary Switch Selector Switch, 1A DC/500mA AC Maximum Current, Quick Connect/Solder Tag Terminal - XB6EAD221P
This selector switch provides reliable control for various automation and electrical applications. It features a handle actuator, ensuring an intuitive user experience for precise positioning. Designed for durability and performance, it is suitable for environments that require dependable manual control.
Features & Benefits
• Offers two distinct positions for control versatility
• Designed with a stay put mechanism for stability
• Quick connect terminals facilitate installation
• Rated for low current, enhancing safety across applications
• Green Premium certification highlights environmental responsibility
Applications
• Utilised in control panels for industrial machinery
• Suitable for HVAC systems necessitating manual operation
• Ideal for automation systems needing compact control solutions
• Applicable in circuit control for electrical panels
• Used in audio equipment for selecting audio sources
What type of terminals does it use for connections?
It features insulated faston and solder terminals for flexible connectivity options.
How can it improve safety in my application?
The low current rating reduces risks associated with overheating and other hazards.
Is it suited for outdoor use?
Although it has an IP65 protection rating, consider its operational range for outdoor environments.
Can it withstand mechanical shocks?
Yes, it is designed to resist shocks up to 10g, making it robust for various applications.
What is the installation requirement for this product?
It requires a mounting diameter of 16mm and a simple cut-out for quick installation.
