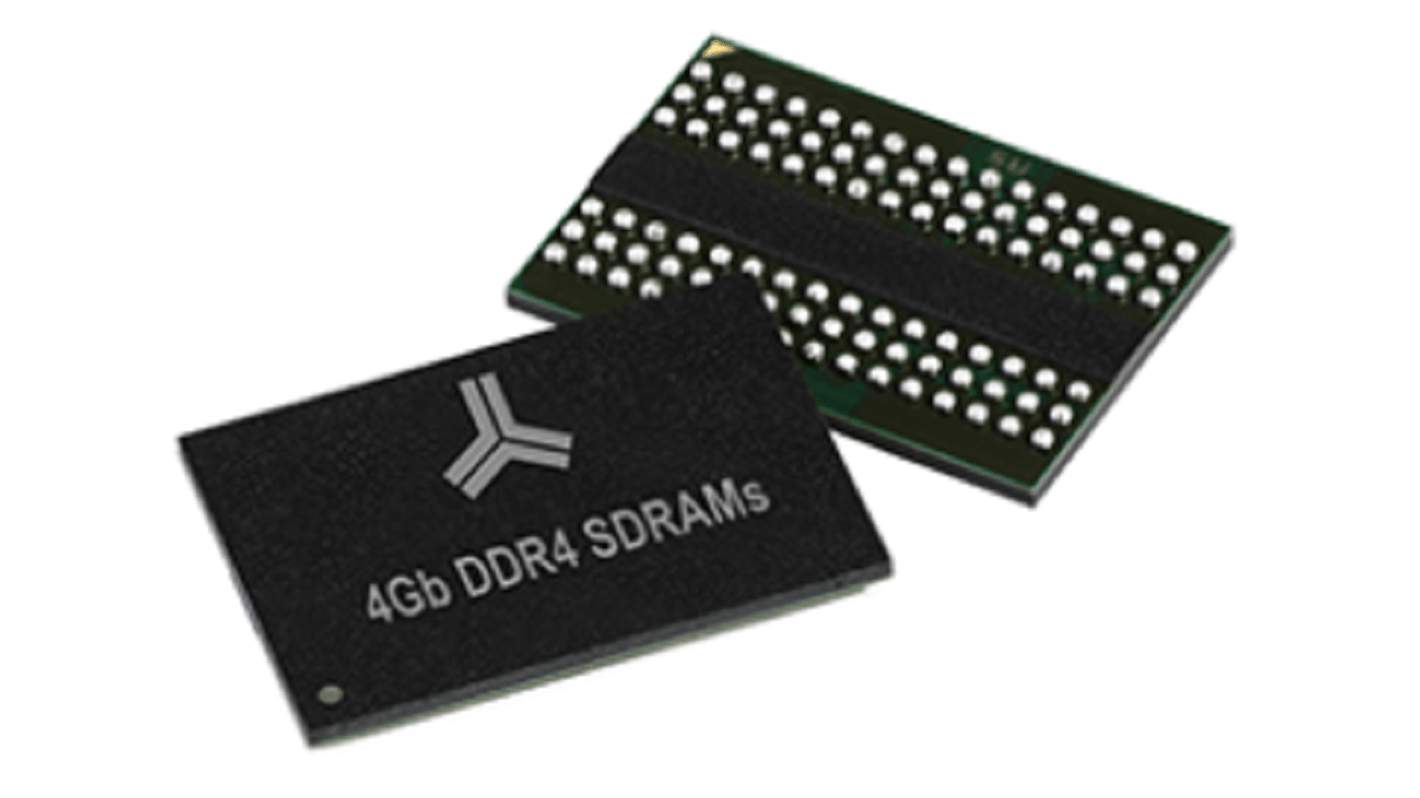

Alliance Memory SDRAM 4 GB Surface, 78-Pin 8 bit FBGA-78 Ball
- N° de stock RS:
- 259-2146
- Référence fabricant:
- AS4C512M8D4-75BIN
- Fabricant:
- Alliance Memory
Offre groupée disponible
Sous-total (1 plateau de 242 unités)*
8 598,744 €
(TVA exclue)
10 404,548 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 18 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le plateau* |
|---|---|---|
| 242 - 242 | 35,532 € | 8 598,74 € |
| 484 - 726 | 35,319 € | 8 547,20 € |
| 968 + | 35,07 € | 8 486,94 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 259-2146
- Référence fabricant:
- AS4C512M8D4-75BIN
- Fabricant:
- Alliance Memory
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Alliance Memory | |
| Memory Size | 4GB | |
| Product Type | SDRAM | |
| Organisation | 512M x 8 | |
| Data Bus Width | 8bit | |
| Maximum Clock Frequency | 1333MHz | |
| Number of Bits per Word | 8 | |
| Maximum Random Access Time | 18ns | |
| Mount Type | Surface | |
| Package Type | FBGA-78 Ball | |
| Pin Count | 78 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 95°C | |
| Width | 1.2 mm | |
| Height | 7.5mm | |
| Series | AS4C512M8D4 | |
| Length | 10.6mm | |
| Standards/Approvals | RoHS | |
| Maximum Supply Voltage | 1.26V | |
| Automotive Standard | No | |
| Minimum Supply Voltage | 1.14V | |
| Sélectionner tout | ||
|---|---|---|
Marque Alliance Memory | ||
Memory Size 4GB | ||
Product Type SDRAM | ||
Organisation 512M x 8 | ||
Data Bus Width 8bit | ||
Maximum Clock Frequency 1333MHz | ||
Number of Bits per Word 8 | ||
Maximum Random Access Time 18ns | ||
Mount Type Surface | ||
Package Type FBGA-78 Ball | ||
Pin Count 78 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 95°C | ||
Width 1.2 mm | ||
Height 7.5mm | ||
Series AS4C512M8D4 | ||
Length 10.6mm | ||
Standards/Approvals RoHS | ||
Maximum Supply Voltage 1.26V | ||
Automotive Standard No | ||
Minimum Supply Voltage 1.14V | ||
The Alliance Memory synchronous DRAM with DDR4 memory class. It is JEDEC standard compliant and low-power auto self refresh (LPASR).
Density: 4Gb
Organization: 512M x 8
Package: 78-ball FBGA
Speed: 1200MHz
Temp. range (°C): 0 to +95
16 internal banks: 4 groups of 4 banks each
8n-bit pre-fetch architecture
Target Applications:
Portable electronics, such as smartphones and tablets
5G designs, computing applications, surveillance systems, smart meters, human-machine interfaces (HMI), digital signal controllers, and PNDs
