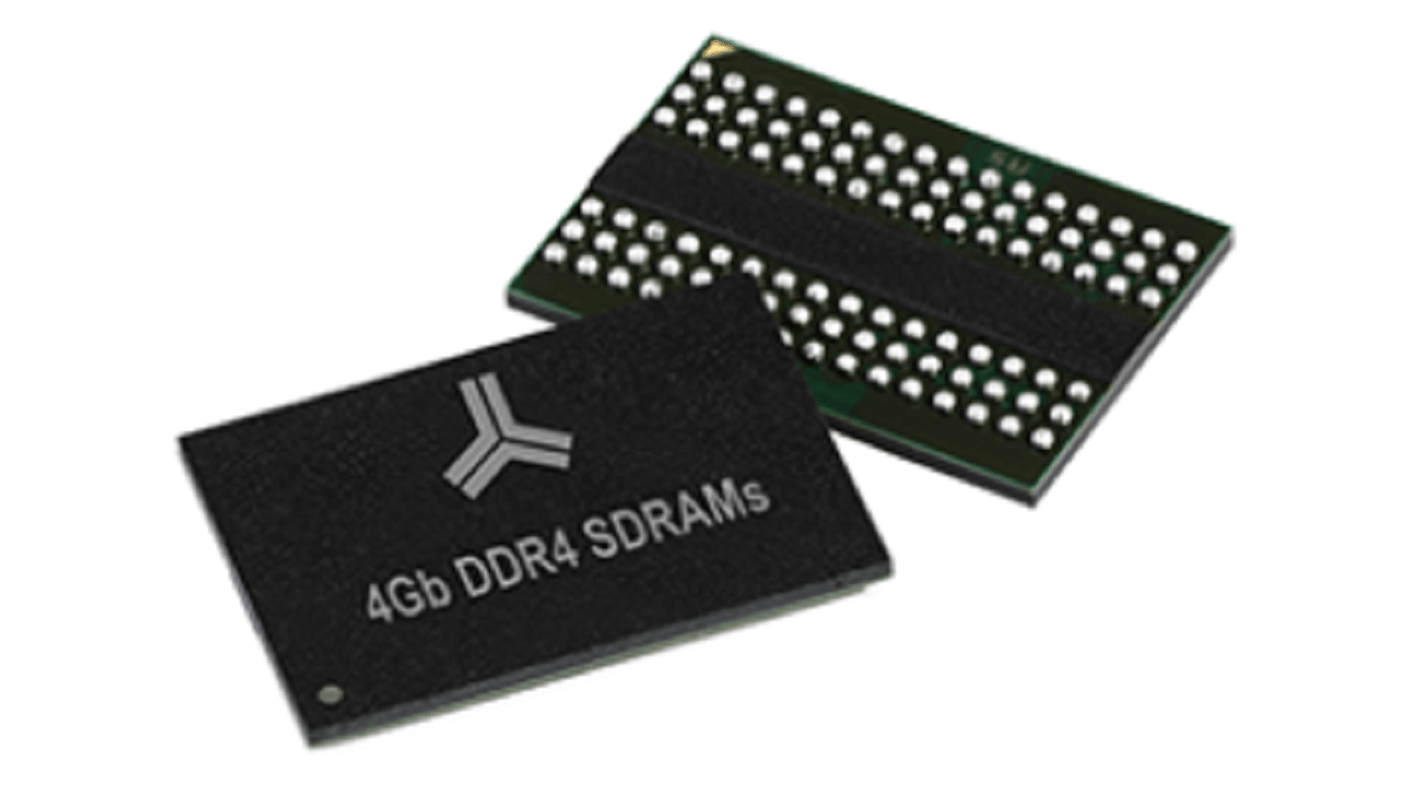

Alliance Memory SDRAM 4 GB Surface, 96-Pin FBGA-96 Ball

Voir l’ensemble des SDRAM
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
259-2137
Référence fabricant:
AS4C256M16D4A-75BIN
Fabricant:
Alliance Memory
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Alliance Memory

Product Type

SDRAM

Memory Size

4GB

Organisation

256M x 16

Number of Bits per Word

16

Maximum Clock Frequency

1333MHz

Maximum Random Access Time

18ns

Mount Type

Surface

Package Type

FBGA-96 Ball

Pin Count

96

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

95°C

Length

13.5mm

Height

7.5mm

Width

1.2 mm

Series

AS4C256M16D4A

Standards/Approvals

RoHS

Minimum Supply Voltage

1.14V

Automotive Standard

No

Maximum Supply Voltage

1.26V

The Alliance Memory synchronous DRAM with DDR4 memory class. It is JEDEC standard compliant and low-power auto self refresh (LPASR).

Density: 4Gb

Organization: 256M x 16

Package: 96-ball FBGA

Speed: 1600MHz

Temp. range (°C): 0 to +95

Bidirectional differential data strobe, DQS &DQS#

8n-bit pre-fetch architecture

Target Applications:


Portable electronics, such as smartphones and tablets

5G designs, computing applications, surveillance systems, smart meters, human-machine interfaces (HMI), digital signal controllers, and PNDs
