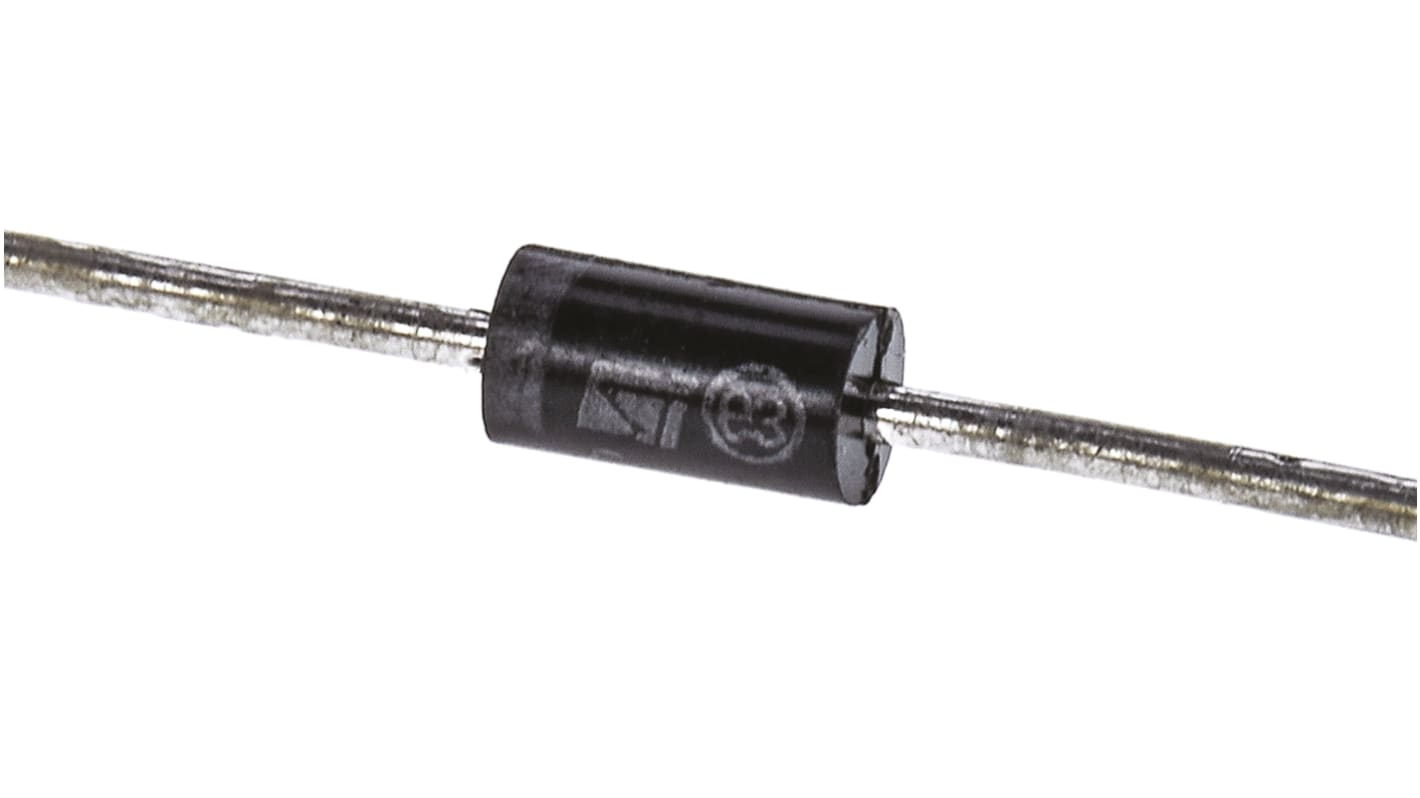

STMicroelectronics 40 V 1 A Diode Schottky 2-Pin DO-204AL 1N5819
- N° de stock RS:
- 486-4460
- Référence fabricant:
- 1N5819
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
0,88 €
(TVA exclue)
1,065 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Dernier stock RS
- 675 restante(s), prêt à être expédié
- Plus 1 690 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 45 | 0,176 € | 0,88 € |
| 50 - 495 | 0,158 € | 0,79 € |
| 500 - 2495 | 0,136 € | 0,68 € |
| 2500 - 4995 | 0,108 € | 0,54 € |
| 5000 + | 0,08 € | 0,40 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 486-4460
- Référence fabricant:
- 1N5819
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Product Type | Diode | |
| Mount Type | Through Hole | |
| Package Type | DO-204AL | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Diode Configuration | Single | |
| Series | 1N5819 | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 900mV | |
| Minimum Operating Temperature | -60°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A | |
| Peak Reverse Current Ir | 10mA | |
| Maximum Operating Temperature | 125°C | |
| Height | 2.7mm | |
| Width | 2.7 mm | |
| Standards/Approvals | No | |
| Diameter | 2.72 mm | |
| Length | 5.2mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Product Type Diode | ||
Mount Type Through Hole | ||
Package Type DO-204AL | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Diode Configuration Single | ||
Series 1N5819 | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 900mV | ||
Minimum Operating Temperature -60°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 25A | ||
Peak Reverse Current Ir 10mA | ||
Maximum Operating Temperature 125°C | ||
Height 2.7mm | ||
Width 2.7 mm | ||
Standards/Approvals No | ||
Diameter 2.72 mm | ||
Length 5.2mm | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
STMicroelectronics 1N5817/8/9 Low Drop Power Schottky Rectifiers
The Vishay 1N5817, 1N5818 and 1N5819 are a family of low-drop 1A Schottky rectifier diodes. They are designed for switch-mode power supplies and high frequency DC-to-DC converters.
Features:
Fast switching
Low forward voltage drop
Small conduction loss
Very low switching loss
Where are they used?
1N5817-1N5819 are designed for low voltage, high frequency inverters, freewheeling, polarity protection and small battery chargers.
What is the operating junction temperature?
-65°C to +150°C
Versions Available:
1N5817 - 20V
1N5818 - 30V
1N5819 - 40V
Diodes and Rectifiers, STMicroelectronics
