Pilz 24 V dc Safety Relay Dual Channel With 8 Safety Contacts and 1 Auxilary Contact Compatible With Expansion Module

  • N° de stock RS 245-1955
  • Référence fabricant 774150
  • Fabricant Pilz
Documentation technique
Législations et de normes
Déclaration de conformité RoHS
Pays d'origine : DE
Détails du produit

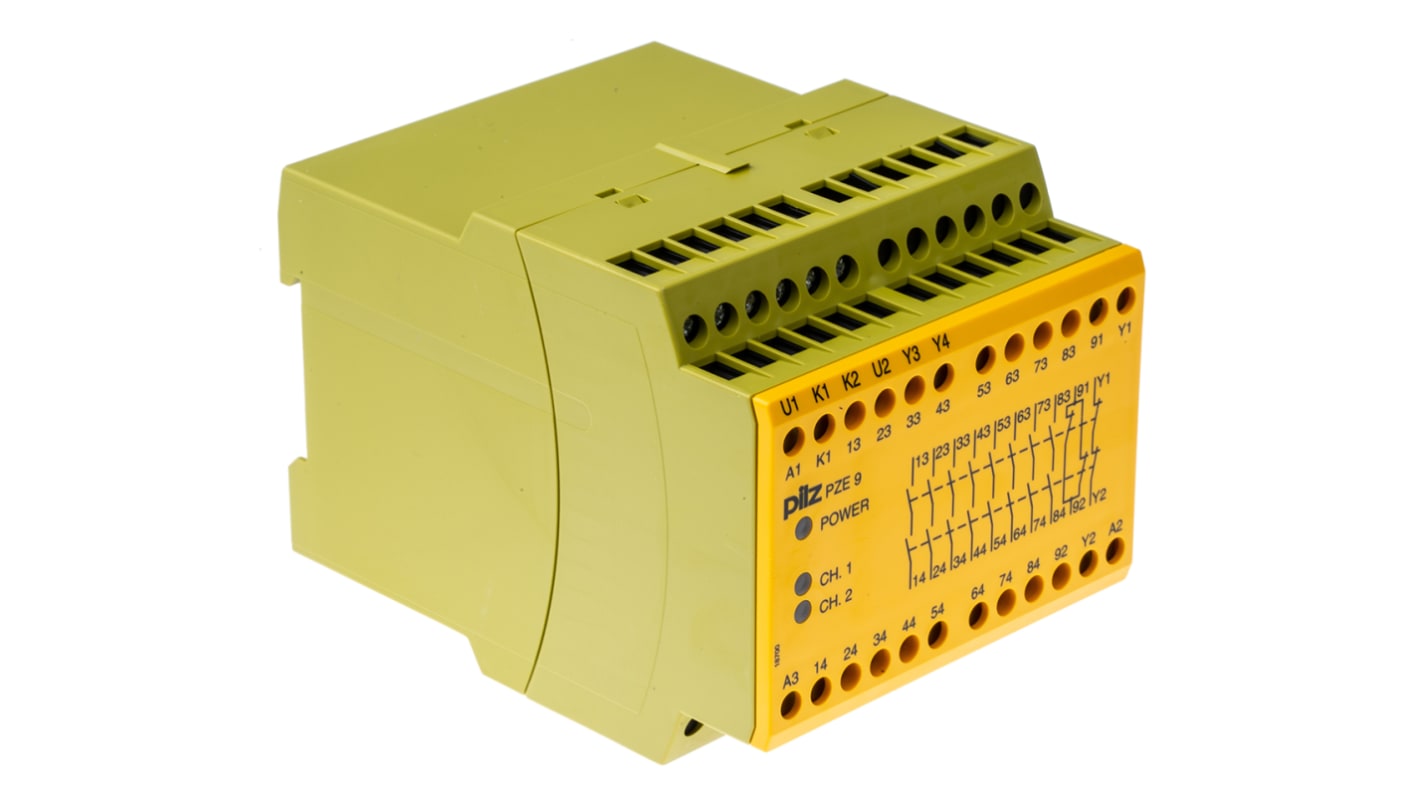

PZE 9 24VDC 8n/o Safety Relay Expansion from PILZ

The PILZ PZE 9, primarily used for increasing the number of contacts you can use between your safety related control devices such as E stops, safety gates and more. The reliability Safety Relay technology from PILZ means you can control your environment with confidence that the safety status is being monitored.

Features and benefits

• Universal power supply, compatible with many different outlets of power sources
• LED indicator for switching your channel status from 1 to 2 and also to monitor your supply voltage
• Plug in terminal connections with either a spring loaded terminal or screw terminal giving you versatility in where your unit can be used.
• Feedback loop monitoring come with all base units allowing you to monitor the safety loop and identify hazards before they happen.
• Single or Dual channel input operation (Single channel are used more beneficially with smaller type machines where you need to use a dedicated logic device that only has a small function to cut off in an emergency – Dual allows you to take control of more safety circuits and control a greater amount of control zones at any given time)

Safety features

• Earth fault in the feedback loop can be detected depending on the base unit that is used
• Earth faults in the input circuit can be detected as the output will de-energise the relays and open the safety contacts.
• The device will retain its safety functions in any case of component failures ensuring your safety.
• Any safety functions in your existing circuit can be easily transferred with this expansion module with ease.
• Detection of shorts across contacts is possible with this expansion model

Applications

• Guard systems
• Emergency stop buttons
• Pull wire emergency stop switches
• Safety light curtains
• Safety sensors

Technical safety parameters

• EN 60204-1
• EN 62061
• EN ISO 13849-1
• VDE 0113-1

Note

All base units must have a feedback control loop

Approvals

60204-1; EN60947-4-1; EN60947-5-1

Spécifications
Attribut Valeur
Supply Voltage 24 V dc
Number of Channels 2
Auxiliary Contacts 1
Function Expansion Module
Safety Contacts 8
Range PNOZ X
Terminal Type Screw
Depth 121mm
Length 87mm
Width 90mm
5 Livraison dès le lendemain
26 Sous 1 jours (stock Europe)
Prix Each
227,20
(TVA exclue)
274,91
(TVA incluse)
Unité
Prix par unité
1 +
227,20 €
