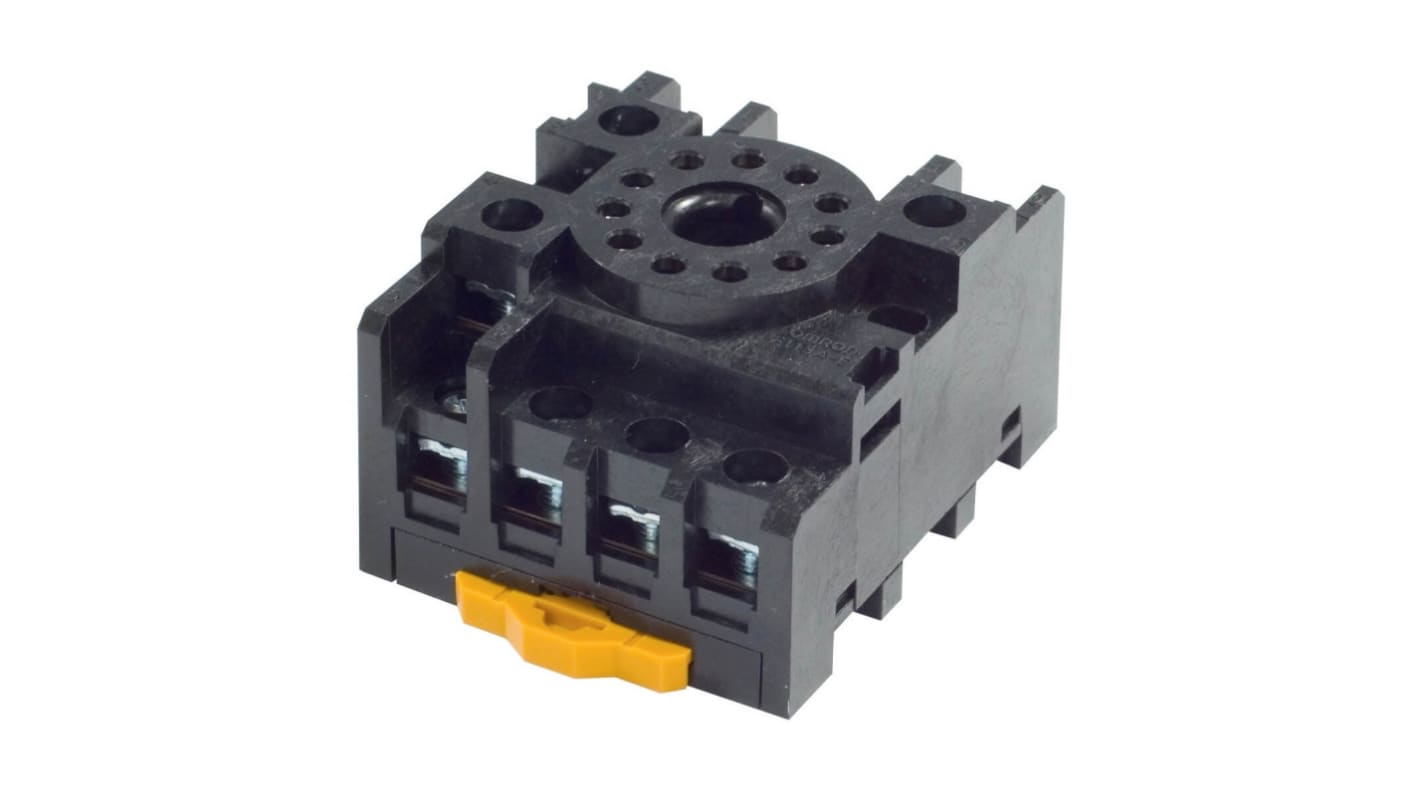

Omron 11 Pin 250V ac DIN Rail Relay Socket, for use with MKS Series

N° de stock RS:: 794-8249
Numéro d'article Distrelec:: 148-08-275
Référence fabricant:: PF113A-N
Fabricant:: Omron

Omron 11 Pin 250V ac DIN Rail Relay Socket, for use with MKS Series

Offre groupée disponible

Price la pièce**

6,08 €

(TVA exclue)

7,36 €

(TVA incluse)

21 En stock, livraison sous 1 jour(s) (stock Europe)*

62 En stock, livraison sous 3 à 5 jours (stock Europe)

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

FRAIS de livraison offerts pour toute commande de plus de 75,00 €

Unité	Prix par unité
1 - 4	6,08 €
5 - 9	5,74 €
10 +	5,61 €

**Prix donné à titre indicatif

N° de stock RS:: 794-8249
Numéro d'article Distrelec:: 148-08-275
Référence fabricant:: PF113A-N
Fabricant:: Omron

11 Pin Socket PF113A Data Sheet

MK Series

Omron MK Series reliable general-purpose relays with long life assured by silver contacts.

Long life (minimum 100,000 electrical operations)
Built-in operation indicator (mechanical, LED), diode surge suppression, varistor surge suppression
The contact operation can be easily checked by mechanical indicator and/or push-to-test button options
Conforms to CENELEC standards
VDE approved versions available

Omron Relay Socket, 250V AC Voltage, 10A Current Rating - PF113A-N

This relay socket is integral for connecting devices within automated systems. It is compatible with the MKS series and serves various industrial applications, ensuring effective operation in electrical circuits. With a 250V AC capacity and a 10A current rating, it is suitable for a wide range of settings, from manufacturing to intricate electronic assemblies.

Features & Benefits

• Robust screw termination for secure connections
• IP20 rated for protection against dust
• Accommodates solid and stranded wires
• Operating temperature range from -25°C to +85°C

Applications

• Utilised with MKS series components in control panels
• Suitable for machinery and automation systems
• Can be installed in DIN rail configurations
• Commonly found in electrical distribution systems
• Employed in modular control solutions

How do I install this component onto a DIN rail?

Align the socket with the DIN rail and push down firmly until it snaps securely into place.

What wire sizes are compatible with this connection?

It accommodates solid and stranded wire sizes from 0.5mm² to 2.5mm².

Can it be used in outdoor applications?

No, this socket is rated for indoor use only and has an IP20 rating, which offers limited protection.

What is the maximum torque I should apply to the screws?

Screws should be tightened to a maximum torque of 0.8 Nm for optimal performance.

How does the operating temperature range affect its performance?

The extensive operating temperature range ensures functionality under various environmental conditions, accommodating both cold and hot climates.

Attribut	Valeur
Voltage	250V ac
For Use With	MKS Series
Accessory Type	Relay Socket
Mounting Type	DIN Rail
Current Rating	10A
Termination Type	Screw
Number of Contacts	11
