Omron 8 Way 250 V ac DIN Rail Relay Socket, for use with G2R-2-S Series
- N° de stock RS:
- 794-8211
- Référence fabricant:
- P2RF-08-S
- Fabricant:
- Omron
Offre groupée disponible
Sous-total (1 unité)*
10,41 €
(TVA exclue)
12,60 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 110 unité(s) prête(s) à être expédiée(s)
- Plus 251 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 10,41 € |
| 5 - 9 | 9,90 € |
| 10 + | 9,56 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 794-8211
- Référence fabricant:
- P2RF-08-S
- Fabricant:
- Omron
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Omron | |
| Voltage | 250 V ac | |
| Product Type | Relay Socket | |
| For Use With | G2R-2-S Series | |
| Current | 10A | |
| Terminal Type | Screw | |
| Standards/Approvals | UL, CSA, RoHS, IEC | |
| Mount Type | DIN Rail | |
| Number of Contacts | 8 | |
| Sélectionner tout | ||
|---|---|---|
Marque Omron | ||
Voltage 250 V ac | ||
Product Type Relay Socket | ||
For Use With G2R-2-S Series | ||
Current 10A | ||
Terminal Type Screw | ||
Standards/Approvals UL, CSA, RoHS, IEC | ||
Mount Type DIN Rail | ||
Number of Contacts 8 | ||
- Pays d'origine :
- CN

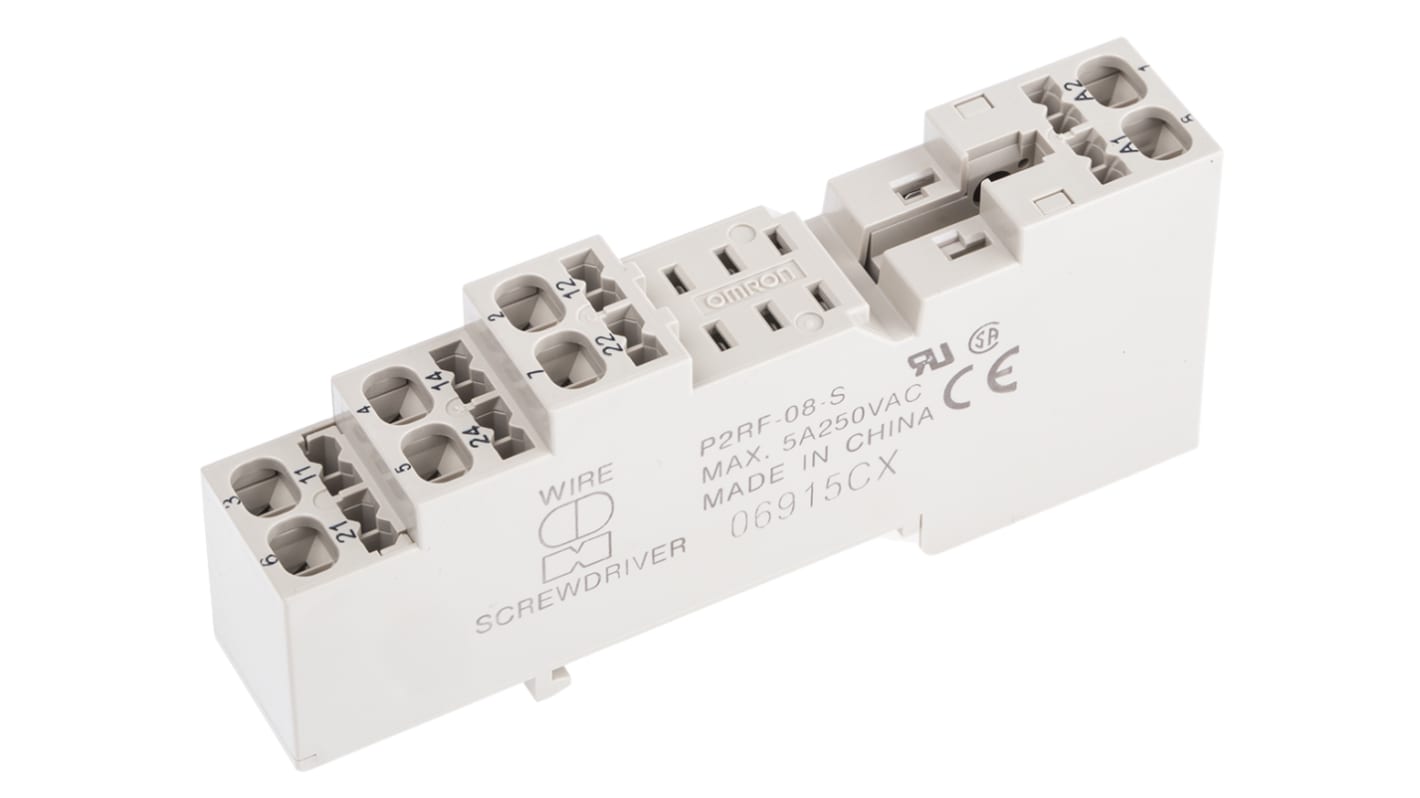

OMRON Relay Socket, 92 (H) x 18 (W) x 32.6mm (D), 250V AC Insulation Voltage - P2RF Series - P2RF-08-S
Need to mount a plug-in relay in a snap? Reach for this relay socket from OMRON. It's specially designed to fit switchgear from OMRON's G2R range of slim and space-saving devices used to switch industrial components such as actuators. As the socket acts as an electrical interference between a circuit and your switchgear, it's quick and easy to mount or remove a relay. Thanks to its screwless clamp terminals, you benefit from reduced wiring time, as springs hold conductors firmly in place. These terminals are also vibration-resistant, giving you peace of mind in harsh settings.
Features & Benefits
• IP20-rated housing is protected against finger touch and tools and wires larger than 12mm
• Offers reliable performance in a wide operating temperature range between -55°C and +70°C
• Helps you maximise packing space, thanks to its compact dimensions of 92 (H) x 18 (W) x 32.6mm (D)
Applications
• Industrial process control
• Oil and gas industries
• Automotive manufacturing
• Aerospace technology
How do I remove a relay from this socket?
It comes with a handy release lever, making it a cinch to remove a relay without the need for tools.
P2RF-S Series
Omron P2RF-S Series screwless clamp terminal sockets with finger protection.
Screwless clamping greatly contributes to reducing wiring time
Better contact reliability
Double wiring possible on all the terminals
Safe terminal arrangement: coil terminals separated from contact terminals
Unique ejector enables easy relay replacement
Nameplate available
