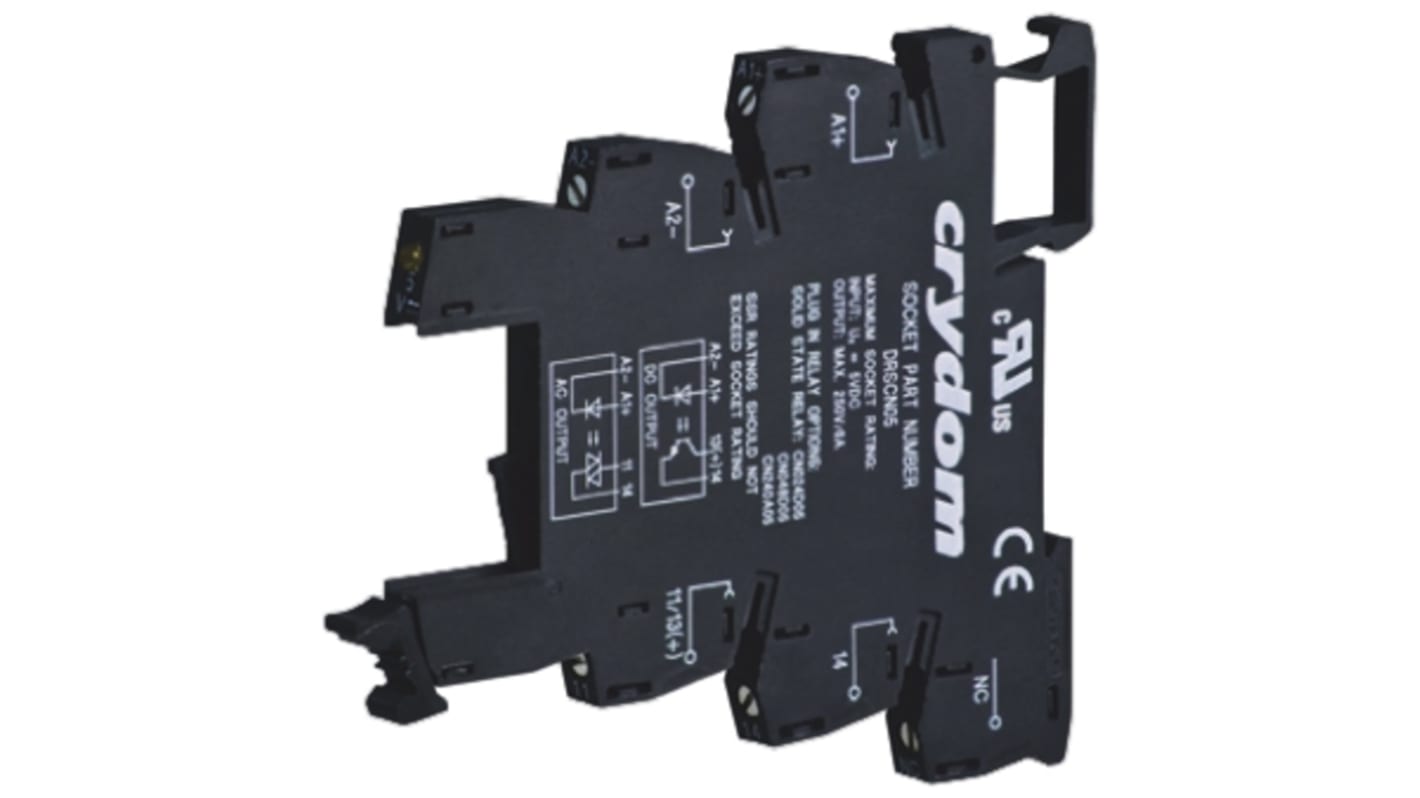

Sensata / Crydom DRA & DRS 24V dc DIN Rail Relay Socket, for use with CN Series
- N° de stock RS:
- 720-3994
- Référence fabricant:
- DRSCN24
- Fabricant:
- Sensata / Crydom
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
34,05 €
(TVA exclue)
41,20 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 62 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 34,05 € |
| 5 - 9 | 33,07 € |
| 10 + | 31,25 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 720-3994
- Référence fabricant:
- DRSCN24
- Fabricant:
- Sensata / Crydom
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Sensata / Crydom | |
| Voltage | 24V dc | |
| Product Type | Relay Socket | |
| For Use With | CN Series | |
| Current | 8A | |
| Series | DRA & DRS | |
| Terminal Type | Screw | |
| Standards/Approvals | CE, RoHS, UL, IEC | |
| Mount Type | DIN Rail | |
| Sélectionner tout | ||
|---|---|---|
Marque Sensata / Crydom | ||
Voltage 24V dc | ||
Product Type Relay Socket | ||
For Use With CN Series | ||
Current 8A | ||
Series DRA & DRS | ||
Terminal Type Screw | ||
Standards/Approvals CE, RoHS, UL, IEC | ||
Mount Type DIN Rail | ||
DRSCN Series Relay Sockets
Crydom DRSCN series sockets are designed to accept industry-standard 5 mm relay package. They allow for easy installation and removal of the CN series SSRs and any other relay in a similar type package. These sockets are 6.2 mm wide and mount on standard 35mm DIN Rail. DRSCN sockets include convenient wire termination for field wiring and an LED input status indicator.
Features and Benefits
6.2 mm DIN Rail mount socket;LED input status indicator;Compatible with CN series SSR
Crydom Solid State Relay and Accessories
