Phoenix Contact 1 Way 24 V ac, 24V dc DIN Rail Relay Base
- N° de stock RS:
- 135-677
- Référence fabricant:
- 2982799
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 135-677
- Référence fabricant:
- 2982799
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Relay Base | |
| Voltage | 24, 24V ac | |
| Current | 3A | |
| Terminal Type | Terminal Block | |
| Standards/Approvals | UKCA, cULus, CE | |
| Mount Type | DIN Rail | |
| Number of Contacts | 1 | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Relay Base | ||
Voltage 24, 24V ac | ||
Current 3A | ||
Terminal Type Terminal Block | ||
Standards/Approvals UKCA, cULus, CE | ||
Mount Type DIN Rail | ||
Number of Contacts 1 | ||
Statut RoHS : Exempté
- Pays d'origine :
- DE

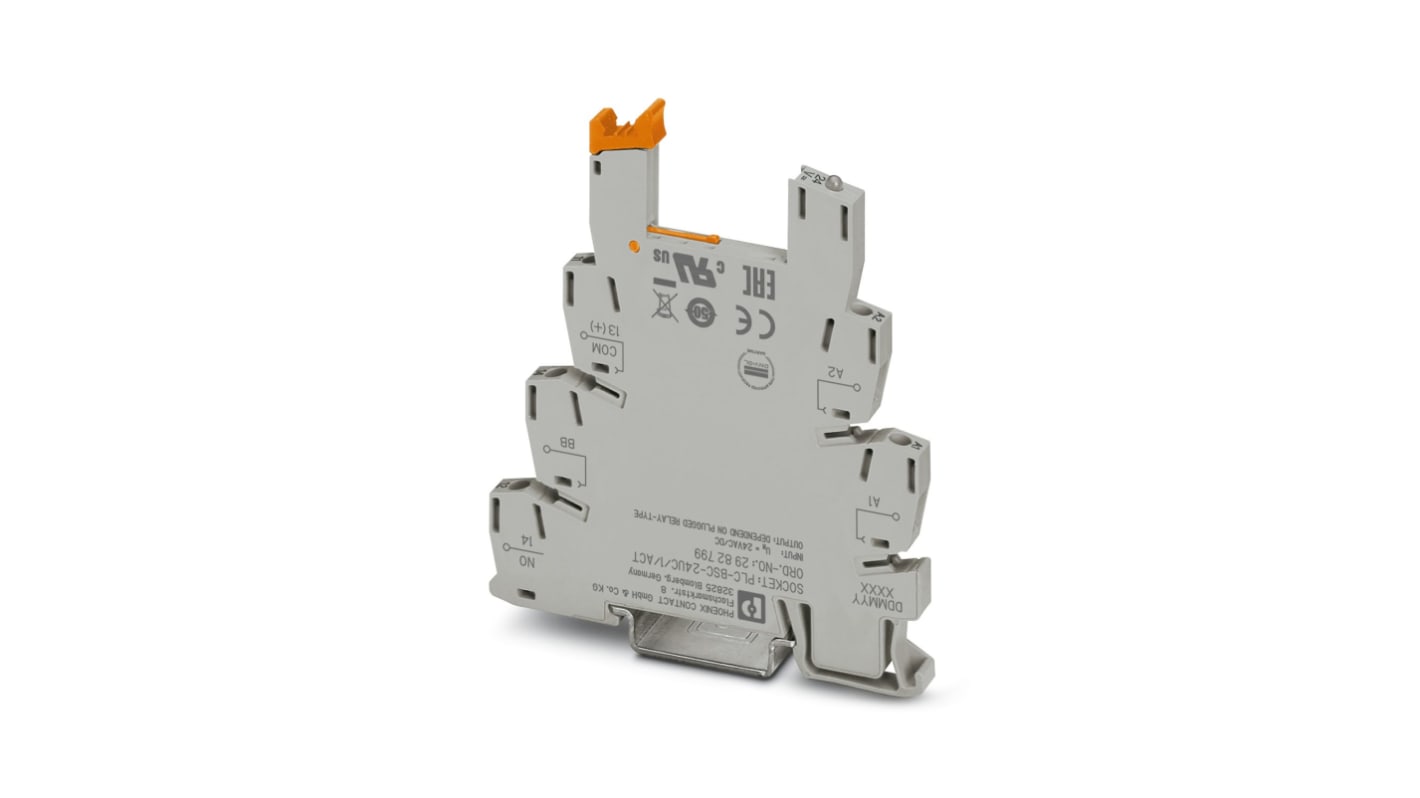

The Phoenix Contact Relay Base is a 6.2 mm PLC basic terminal block for output functions with a screw connection. It is designed for mounting on DIN rail NS 35/7.5 and features a load return line connection. With its 1 N/O contact and input voltage of 24 V AC/DC, this relay base is ideal for coupling the controller and actuators, such as motors, contactors, valves, etc.
Mounts on DIN rail NS 35/7.5 for convenience
Includes load return line connection for efficiency
One N/O contact for flexible control
Suitable for motors, contactors, and valves
Reliable performance with 24 V AC/DC input
Ideal for coupling controllers and actuators
