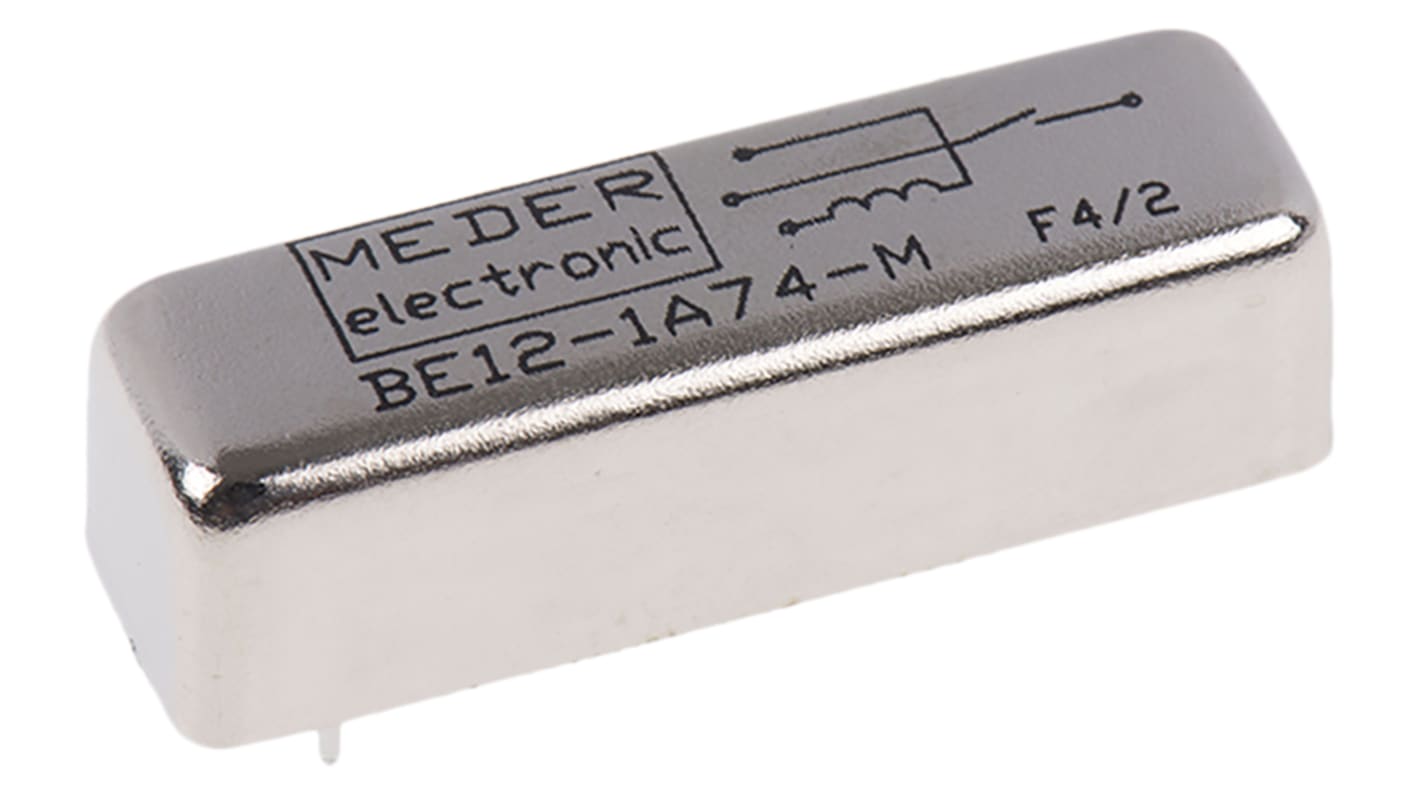

Meder PCB Mount Reed Relay, 12V dc Coil, SPST, 200V dc Max, 1 A Max, 2145Ω
- N° de stock RS:
- 349-1803
- Référence fabricant:
- BE12-1A74-M
- Fabricant:
- Meder
49 En stock pour livraison sous 1 jour(s)
Prix la pièce
22,34 €
(TVA exclue)
27,03 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 24 | 22,34 € |
| 25 - 99 | 20,56 € |
| 100 - 249 | 18,77 € |
| 250 - 499 | 17,45 € |
| 500 + | 16,09 € |
- N° de stock RS:
- 349-1803
- Référence fabricant:
- BE12-1A74-M
- Fabricant:
- Meder
Documentation technique
Législations et de normes
Détails du produit
SPNO Reed Relay BE Series
Sealed with PU resin
Encapsulated in a nickel-plated steel case for magnetic screening
Contact Material Ru
Maximum switching current 1A
Vibration resistance: 10g at 10-2000 Hz
Operating temperature range: -20°C to +70°C
Encapsulated in a nickel-plated steel case for magnetic screening
Contact Material Ru
Maximum switching current 1A
Vibration resistance: 10g at 10-2000 Hz
Operating temperature range: -20°C to +70°C
Spécifications
Attribut | Valeur |
|---|---|
| Contact Configuration | SPST |
| Coil Voltage | 12V dc |
| Mounting Type | PCB Mount |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 250V ac |
| Maximum Switching Voltage DC | 200V dc |
| Coil Power | 67mW |
| Coil Resistance | 2145Ω |
| Length | 32.4mm |
| Height | 10mm |
| Depth | 9.5mm |
| Dimensions | 32.4 x 9.5 x 10mm |
| Isolation Coil To Contact | 2kV ac |
| Number of Poles | 1 |
| Contact Resistance | 120 mΩ |
| Operating Temperature Range | -20 → +70°C |
| Minimum Operating Temperature | -20°C |
| Maximum Switching Power DC | 30 W |
| Operating Time Including Bounce | 0.5ms |
| Terminal Type | Through Hole |
| Maximum Operating Temperature | +70°C |
