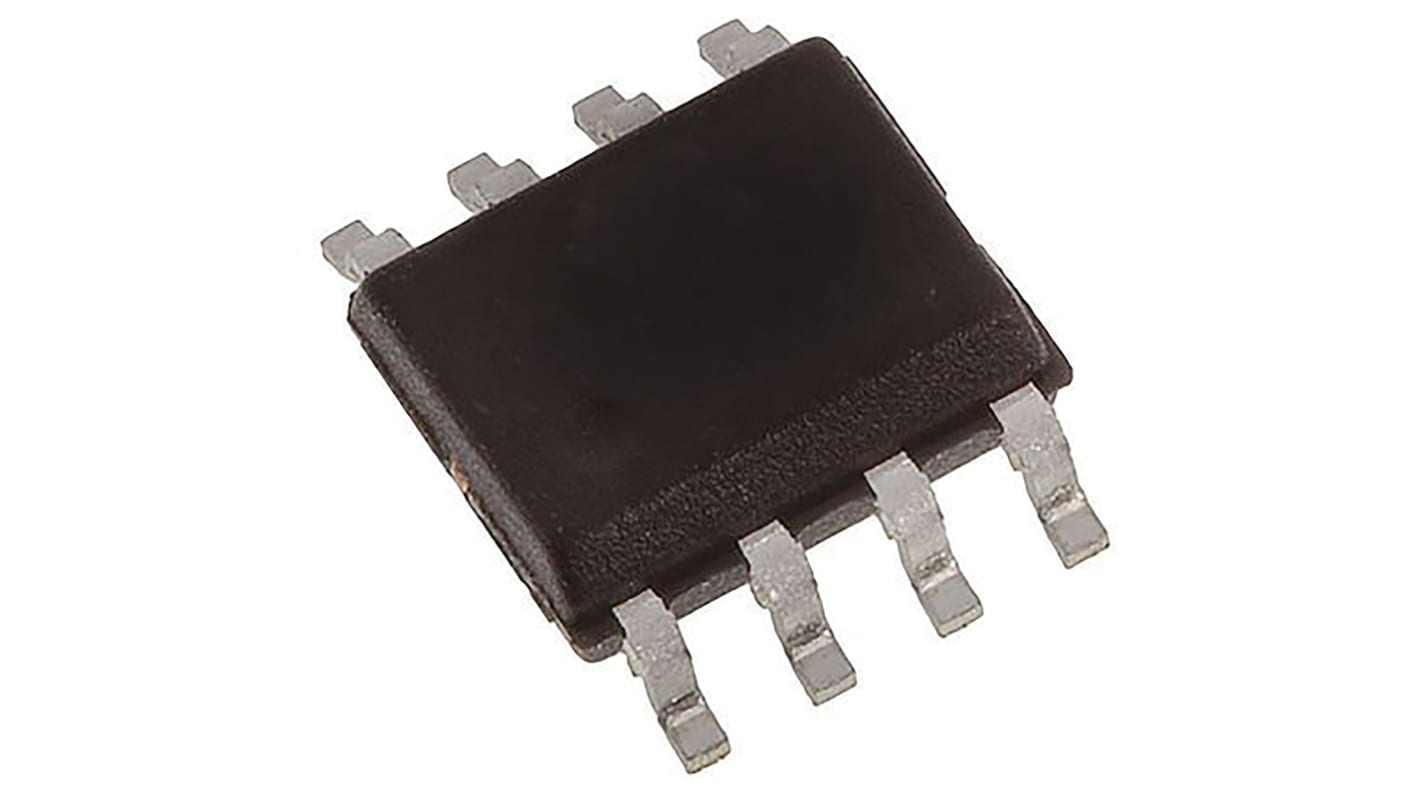

STMicroelectronics UC2845BD1, PWM Controller, 500 kHz 8-Pin, SOIC
- N° de stock RS:
- 168-7315
- Référence fabricant:
- UC2845BD1
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Sous-total (1 tube de 100 unités)*
75,00 €
(TVA exclue)
91,00 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 100 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 300 unité(s) expédiée(s) à partir du 07 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le tube* |
|---|---|---|
| 100 - 400 | 0,75 € | 75,00 € |
| 500 - 900 | 0,715 € | 71,50 € |
| 1000 - 1900 | 0,545 € | 54,50 € |
| 2000 + | 0,49 € | 49,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 168-7315
- Référence fabricant:
- UC2845BD1
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Maximum Switching Frequency | 500 kHz | |
| Output Current | 1 A | |
| Control Method | Current | |
| Number of Outputs | 1 | |
| Mounting Type | Surface Mount | |
| Fall Time | 50ns | |
| Rise Time | 50ns | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Topology | Boost, Flyback | |
| Maximum Duty Cycle | 50% | |
| Dimensions | 5 x 4 x 1.25mm | |
| Length | 5mm | |
| PWM Controller Type | Current Mode | |
| Width | 4mm | |
| Height | 1.25mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +150 °C | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Maximum Switching Frequency 500 kHz | ||
Output Current 1 A | ||
Control Method Current | ||
Number of Outputs 1 | ||
Mounting Type Surface Mount | ||
Fall Time 50ns | ||
Rise Time 50ns | ||
Package Type SOIC | ||
Pin Count 8 | ||
Topology Boost, Flyback | ||
Maximum Duty Cycle 50% | ||
Dimensions 5 x 4 x 1.25mm | ||
Length 5mm | ||
PWM Controller Type Current Mode | ||
Width 4mm | ||
Height 1.25mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +150 °C | ||
PWM Controllers, STMicroelectronics
Pulse-width modulator (PWM) controllers can support isolated and non-isolated AC-DC and DC-DC switch mode power supplies. They are based on the most popular topologies in both single-ended, such as fly-back, forward or quasi-resonant controllers, and double-ended configurations, such as asymmetrical half-bridge, for Switch Mode Power Supplies (SMPS).
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
The PMW controllers also integrate a comprehensive set of protections for enhanced robustness and reliability.
PWM (Pulse Width Modulation) Controllers, STMicroelectronics
