RS PRO Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, Red LED, 250 V ac @ 200
- N° de stock RS:
- 891-9867
- Fabricant:
- RS PRO
Offre groupée disponible
Sous-total (1 unité)*
9,03 €
(TVA exclue)
10,93 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 4 unité(s) prête(s) à être expédiée(s)
- Plus 1 504 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 1 000 unité(s) expédiée(s) à partir du 23 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 9,03 € |
| 5 - 9 | 8,75 € |
| 10 - 24 | 8,50 € |
| 25 - 49 | 8,04 € |
| 50 + | 7,42 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 891-9867
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 13.6mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Black | |
| Contact Configuration | SPST | |
| Voltage Rating | 250 V ac @ 200 mA, 50 V dc @ 200 mA | |
| Push Button Style | Round | |
| LED Colour | Red | |
| IP Rating | IP67 | |
| Contact Current Rating | 200 mA @ 50 V dc, 500 mA @ 32 V ac | |
| Contact Material | Gold Over Silver | |
| Contact AC Voltage Rating | 250V | |
| Contact DC Voltage Rating | 50V | |
| Case Colour | Chrome | |
| Terminal Type | Solder Lug | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 13.6mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Black | ||
Contact Configuration SPST | ||
Voltage Rating 250 V ac @ 200 mA, 50 V dc @ 200 mA | ||
Push Button Style Round | ||
LED Colour Red | ||
IP Rating IP67 | ||
Contact Current Rating 200 mA @ 50 V dc, 500 mA @ 32 V ac | ||
Contact Material Gold Over Silver | ||
Contact AC Voltage Rating 250V | ||
Contact DC Voltage Rating 50V | ||
Case Colour Chrome | ||
Terminal Type Solder Lug | ||
- Pays d'origine :
- CN

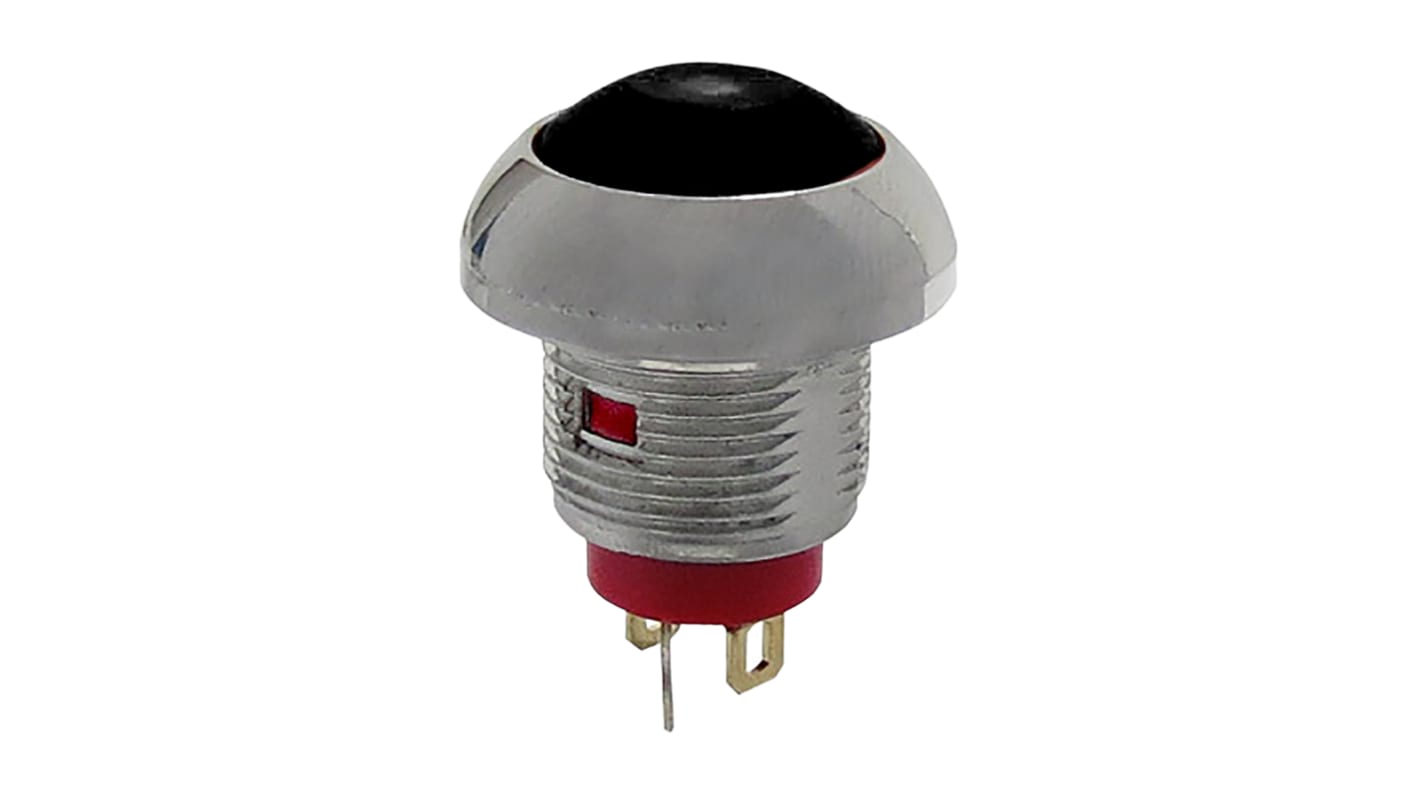

RS PRO Single Pole Single Throw (SPST) Momentary Red LED Miniature Push Button Switch, IP67, 13.6 mm (Dia.), Threaded
Make controlling your circuit a breeze with this single pole single throw (SPST) momentary red LED (light-emitting diode) miniature push button switch from RS PRO. It's fitted with high-quality gold-over-silver contacts for effective conductivity with no voltage loss.
The product has a bright red illuminated LED, so you can easily tell when there's power running through your circuit. This button is IP67 rated, which means it can be submerged in up to a metre of water for half an hour and will also withstand extremely dusty and dirty environments.
The product has a bright red illuminated LED, so you can easily tell when there's power running through your circuit. This button is IP67 rated, which means it can be submerged in up to a metre of water for half an hour and will also withstand extremely dusty and dirty environments.
Features and Benefits
• Black round cap actuator
• Chrome case colour
• Contact AC voltage rating of 250 V
• Single Pole Single Throw (SPST) contact configuration
• Contact current rating of 200 mA at 50 V DC, 500 mA at 32 V AC
• Contact DC voltage rating of 50 V
• Gold-over-silver contact material
• Illuminated
• IP (Ingress Protection) rating of IP67
• Red LED colour
• Threaded mounting type
• Panel cut out size of 13.6 mm (diameter)
• Standards met include IEC 60629 2001, PB Lead-Free, RoHS (Restriction of Hazardous Substances)
• Momentary switch operation
• Solder-lug terminal type
• Voltage rating of 250 V AC at 200 mA, 50 V DC at 200 mA
• Chrome case colour
• Contact AC voltage rating of 250 V
• Single Pole Single Throw (SPST) contact configuration
• Contact current rating of 200 mA at 50 V DC, 500 mA at 32 V AC
• Contact DC voltage rating of 50 V
• Gold-over-silver contact material
• Illuminated
• IP (Ingress Protection) rating of IP67
• Red LED colour
• Threaded mounting type
• Panel cut out size of 13.6 mm (diameter)
• Standards met include IEC 60629 2001, PB Lead-Free, RoHS (Restriction of Hazardous Substances)
• Momentary switch operation
• Solder-lug terminal type
• Voltage rating of 250 V AC at 200 mA, 50 V DC at 200 mA
