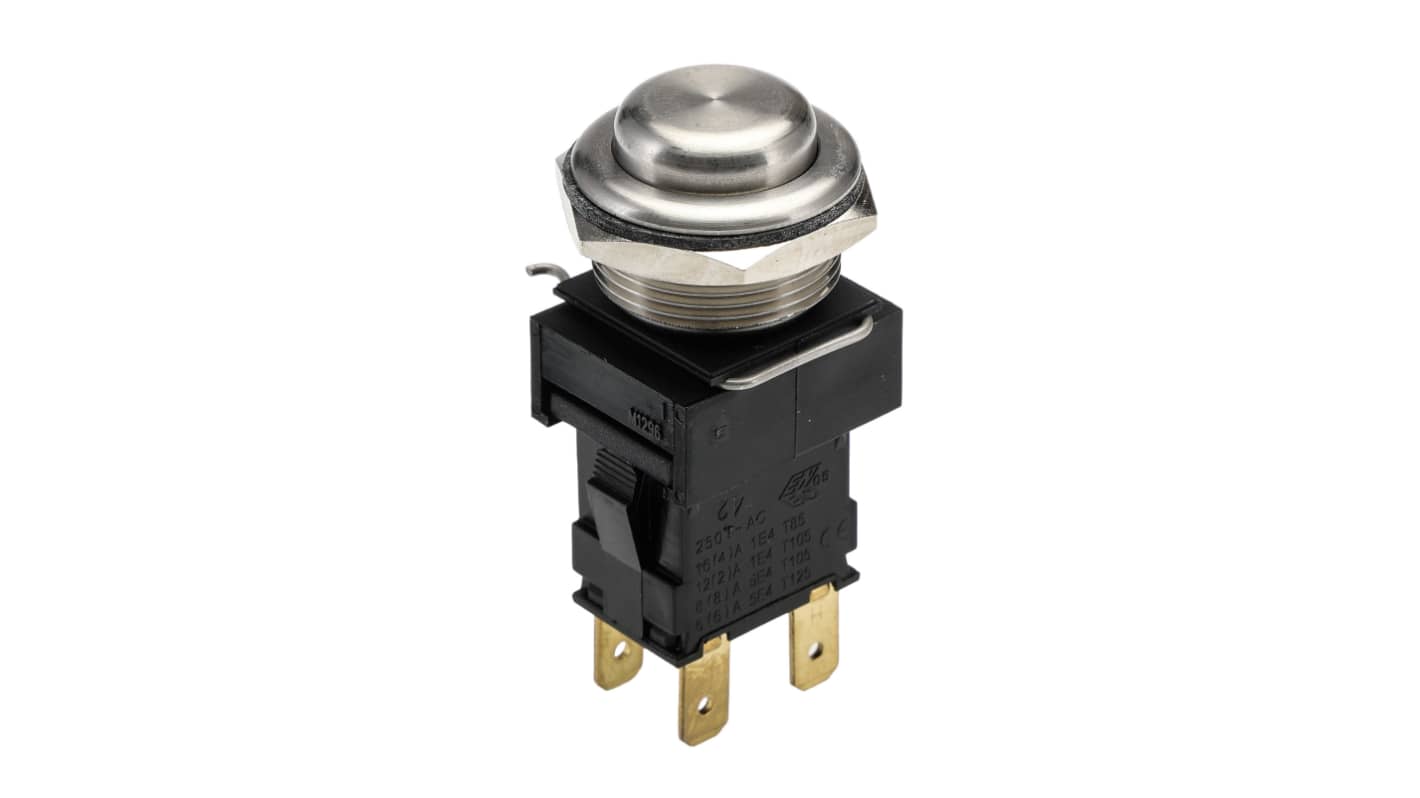

Arcolectric (Bulgin) Ltd 8300 Series Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, DPDT, 250V ac, IP66

N° de stock RS:: 861-0324
Référence fabricant:: H8351RPAAA
Fabricant:: Arcolectric (Bulgin) Ltd

Arcolectric (Bulgin) Ltd 8300 Series Push Button Switch, Momentary, Panel Mount, 19.2mm Cutout, DPDT, 250V ac, IP66

Offre groupée disponible

Price la pièce**

21,41 €

(TVA exclue)

25,91 €

(TVA incluse)

4 En stock, livraison sous 1 jour(s) (stock Europe)*

7 En stock, livraison sous 3 à 5 jours (stock Europe)

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

FRAIS de livraison offerts pour toute commande de plus de 75,00 €

Vérifier le stock en temps réel

Unité	Prix par unité
1 - 9	21,41 €
10 - 24	19,65 €
25 - 49	18,84 €
50 - 99	18,20 €
100 +	16,70 €

**Prix donné à titre indicatif

N° de stock RS:: 861-0324
Référence fabricant:: H8351RPAAA
Fabricant:: Arcolectric (Bulgin) Ltd

Datasheet - Push Button Switches

Bulgin 8300 Series Push Button Switch, 19.2mm Panel Cut Out Diameter, 250V AC Voltage Rating - H8351RPAAA

This push button switch is a versatile momentary switch designed for panel mounting applications. With a rectangular push button style, it features a compact cut-out size of 19.2mm in diameter, making it suitable for a variety of electrical installations. The robust design ensures durability while maintaining an IP66 rating for effective protection against dust and water.

Features & Benefits

• Designed for momentary operation for precise control
• DPDT configuration allows for versatile circuit applications
• Rated at 250V AC to meet high voltage requirements
• High current rating of 16A supports demanding applications
• IP66 rated for reliable resistance to moisture and dust
• Rectangular shape provides a modern aesthetic for panels

Applications

• Typically used in industrial automation control panels
• Ideal for electrical panels requiring momentary switching
• Suitable for equipment needing robust and reliable control
• Commonly employed in mechanical systems requiring precise operation

How does the momentary switch function in different applications?

The momentary switch engages only when pressed, allowing for temporary circuit activation. This functionality is essential in scenarios requiring temporary control, such as starting motors or triggering alarms.

What benefits does the IP66 rating provide for this switch?

The IP66 rating signifies that the switch is fully dust-tight and can withstand powerful water jets, making it suitable for outdoor and harsh environmental applications where moisture and debris might otherwise cause damage.

Can this push button switch handle high current loads effectively?

The switch is rated for 16A, making it capable of managing significant electrical loads without risk of overheating or failure, ensuring reliability in demanding applications.

What mounting options are available for this switch?

It is designed for panel mounting, allowing for easy installation into control panels, with precise cut-out dimensions for a secure fit. The tab terminal type simplifies connections to circuits.

How does the rectangular push button enhance usability?

The rectangular shape provides a larger surface area for easier activation, improving both user experience and accessibility in environments where swift operation is essential.

Attribut	Valeur
Switch Operation	Momentary
Illuminated	No
Panel Cut Out Diameter	19.2mm
Series	8300
Mounting Type	Panel Mount
Contact Configuration	DPDT
Voltage Rating	250V ac
Push Button Style	Rectangular
IP Rating	IP66
Contact Current Rating	16 A
Legend	(Blank)
Case Colour	Black
Manufacturer Part No.	H8351RPAAA
Terminal Type	Tab
Panel Cut Out Height	19.3mm
Maximum AC Voltage	250V ac
Panel Cut Out Width	12.9mm
