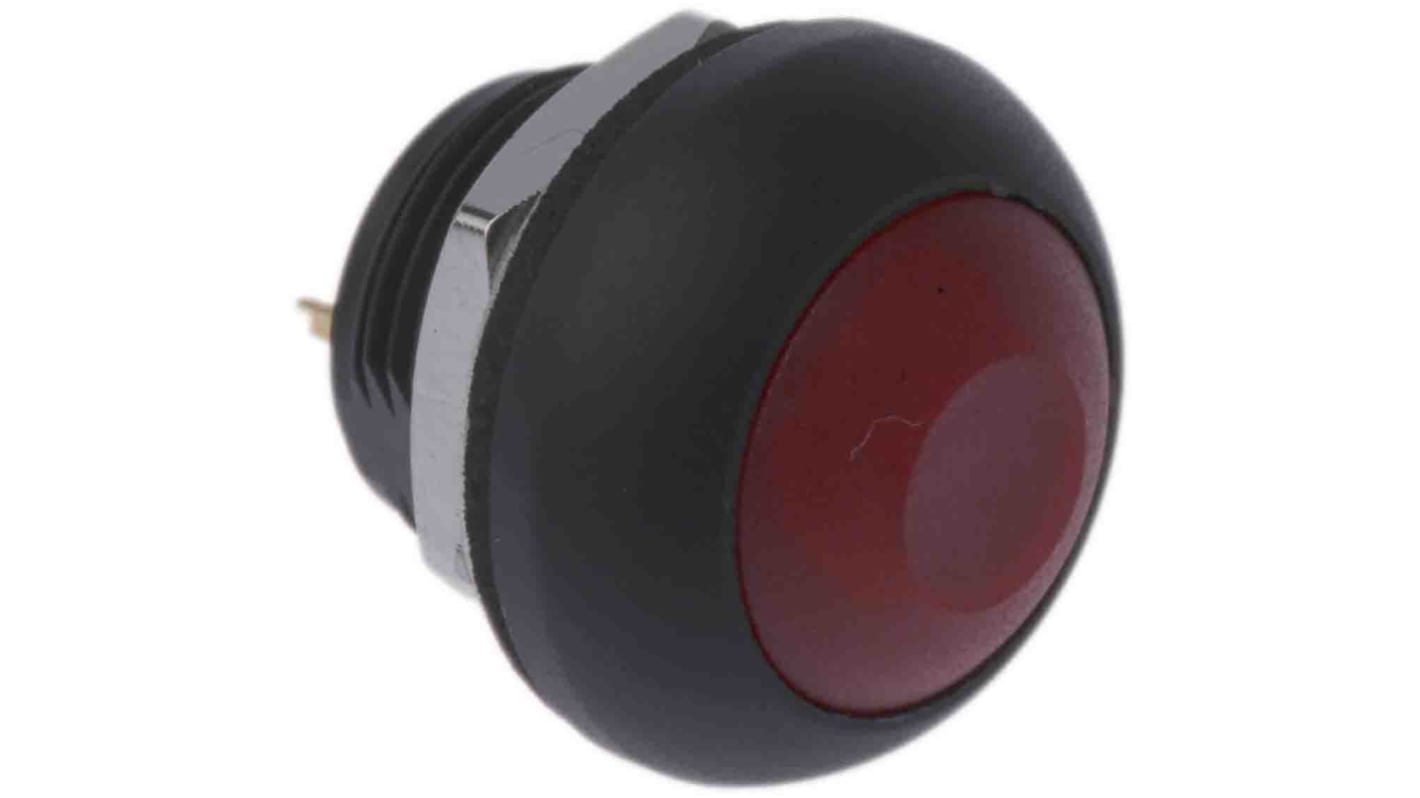

RS PRO Miniature Push Button Switch, Momentary, PCB, 13.6 mm Cutout, SPST, Red LED, IP67, 50 V
- N° de stock RS:
- 820-7599
- Fabricant:
- RS PRO
Offre groupée disponible
Sous-total (1 unité)*
4,57 €
(TVA exclue)
5,53 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 149 unité(s) expédiée(s) à partir du 19 janvier 2026
- Plus 176 unité(s) expédiée(s) à partir du 19 janvier 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 4,57 € |
| 10 - 24 | 4,44 € |
| 25 - 49 | 4,30 € |
| 50 - 99 | 4,07 € |
| 100 + | 3,74 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 820-7599
- Fabricant:
- RS PRO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | RS PRO | |
| Product Type | Miniature Push Button Switch | |
| Actuator Colour | Red | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cutout Size | 13.6 mm | |
| Mount Type | PCB | |
| Contact Configuration | SPST | |
| LED Colour | Red | |
| Terminal Type | PC Terminal | |
| IP Rating | IP67 | |
| Actuator Style | Cap | |
| Contact AC Voltage | 32V | |
| Contact DC Voltage | 50V | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | SPST | |
| Standards/Approvals | RoHS, Lead-Free | |
| Switch Contact Current | 400 mA | |
| Sélectionner tout | ||
|---|---|---|
Marque RS PRO | ||
Product Type Miniature Push Button Switch | ||
Actuator Colour Red | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cutout Size 13.6 mm | ||
Mount Type PCB | ||
Contact Configuration SPST | ||
LED Colour Red | ||
Terminal Type PC Terminal | ||
IP Rating IP67 | ||
Actuator Style Cap | ||
Contact AC Voltage 32V | ||
Contact DC Voltage 50V | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration SPST | ||
Standards/Approvals RoHS, Lead-Free | ||
Switch Contact Current 400 mA | ||
Sub-Miniature Push Button Switches
This Sub-Miniature push button switch with momentary switch operation and 1-pole on-off switch from our own RS PRO brand offer an excellent mechanism for controlling a machine or a process.
A cap is made from high-quality Polyamide 6/6 with gold over silver plated contact. Push button switches available with threaded bushing or snap in panel mounting.
• Operating force: 2N-5N
• Contact bounce: 10 ms
• Mechanical life: 1000000 cycles
• Soldering: 350°C maximum for 5 seconds
Typical applications for this sub-miniature push button switch would be:
• Test Equipment
• Telecommunications
• Networking
• Handheld Appliances
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
