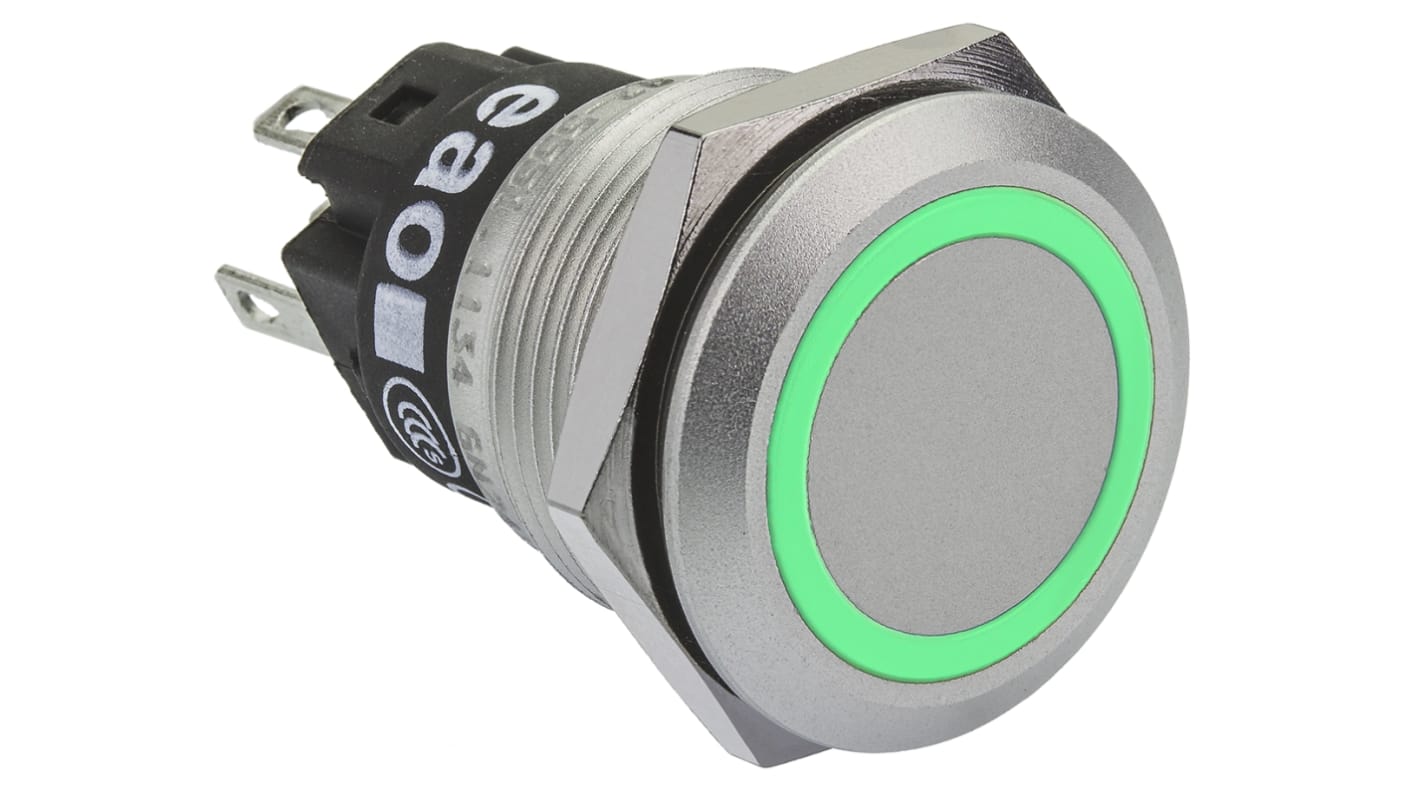

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Green LED, 240V, IP65, IP67

N° de stock RS:: 811-4097
Numéro d'article Distrelec:: 301-27-198
Référence fabricant:: 82-5551.1133
Fabricant:: EAO

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPDT, Green LED, 240V, IP65, IP67

Voir la catégorie

Offre groupée disponible

Sous-total (1 unité)*

23,67 €

(TVA exclue)

28,64 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

En stock

Plus 32 unité(s) expédiée(s) à partir du 15 décembre 2025
Plus 429 unité(s) expédiée(s) à partir du 15 décembre 2025

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 - 9	23,67 €
10 - 24	21,11 €
25 - 49	18,92 €
50 - 149	16,64 €
150 +	16,07 €

*Prix donné à titre indicatif

N° de stock RS:: 811-4097
Numéro d'article Distrelec:: 301-27-198
Référence fabricant:: 82-5551.1133
Fabricant:: EAO

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	EAO
	Switch Operation	Momentary
	Illuminated	Yes
	Series	82
	Panel Cut Out Diameter	19mm
	Mounting Type	Panel Mount
	Contact Configuration	SPDT
	Voltage Rating	240V
	Push Button Style	Round
	LED Colour	Green
	IP Rating	IP65, IP67
	Contact Current Rating	3A
	Contact Material	Silver Alloy
	Case Colour	Silver
	Contact AC Voltage Rating	240V
	Manufacturer Part No.	82-5551.1133
	Contact DC Voltage Rating	240V
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-30°C
	Operating Temperature Range	-30°C to +70°C
	Terminal Type	Plug In, Solder

	Sélectionner tout
	Marque EAO
	Switch Operation Momentary
	Illuminated Yes
	Series 82
	Panel Cut Out Diameter 19mm
	Mounting Type Panel Mount
	Contact Configuration SPDT
	Voltage Rating 240V
	Push Button Style Round
	LED Colour Green
	IP Rating IP65, IP67
	Contact Current Rating 3A
	Contact Material Silver Alloy
	Case Colour Silver
	Contact AC Voltage Rating 240V
	Manufacturer Part No. 82-5551.1133
	Contact DC Voltage Rating 240V
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -30°C
	Operating Temperature Range -30°C to +70°C
	Terminal Type Plug In, Solder

Se connecter pour voir les modèles CAO

Pays d'origine :: CN

EAO Series 82 Illuminated Anti-Vandal Switches

Series 82 illuminated anti-vandal switches from EAO. The switches have an aesthetic design combined with a robust metal housing and conform to protection ratings; IK10 (physical attack) and IP67 (Dust and waterproof), making them ideal for use in public areas and harsh conditions. Three size versions are available for mounting into cut-outs of 16, 19 and 22mm.

Aluminium construction
Flat, convex and raised button types available
Daylight readable illumination
Excellent tactile switching action

Approvals

CE, UL

EAO Push Button Switch, 5A Switching Current, 22mm Front Diameter - 82 Series - 82-5551.1133

For reliable machine control, choose this EAO push button switch. Its snap-action mechanism immediately switches your components when activated, giving you efficient device control. As the unit illuminates with a green LED, it's easy to see the status of your processes. The product's momentary actuator only works when pressed, so it's suitable for short-term processes. Its low operating current of just 14mA means it's an energy-efficient choice.

Features & Benefits

• Aluminium lens material for resistance to corrosion and impact
• Silver contacts are highly conductive and corrosion-resistant for reliable switching
• Flush mounting design means it won't protrude from your panel, helping to prevent accidental actuation
• Compact cutout diameter of 19mm for installation in areas with limited space

Applications

• Material handling
• Drinks dispensers
• Domestic appliances
• Automotive industry

Can I use this push button switch in damp environments?

Yes, this switch has an IP67 rating, which indicates complete protection against dust and submersion in 1m of water for up to 30 minutes. This makes it suitable for use in areas exposed to heavy moisture.
