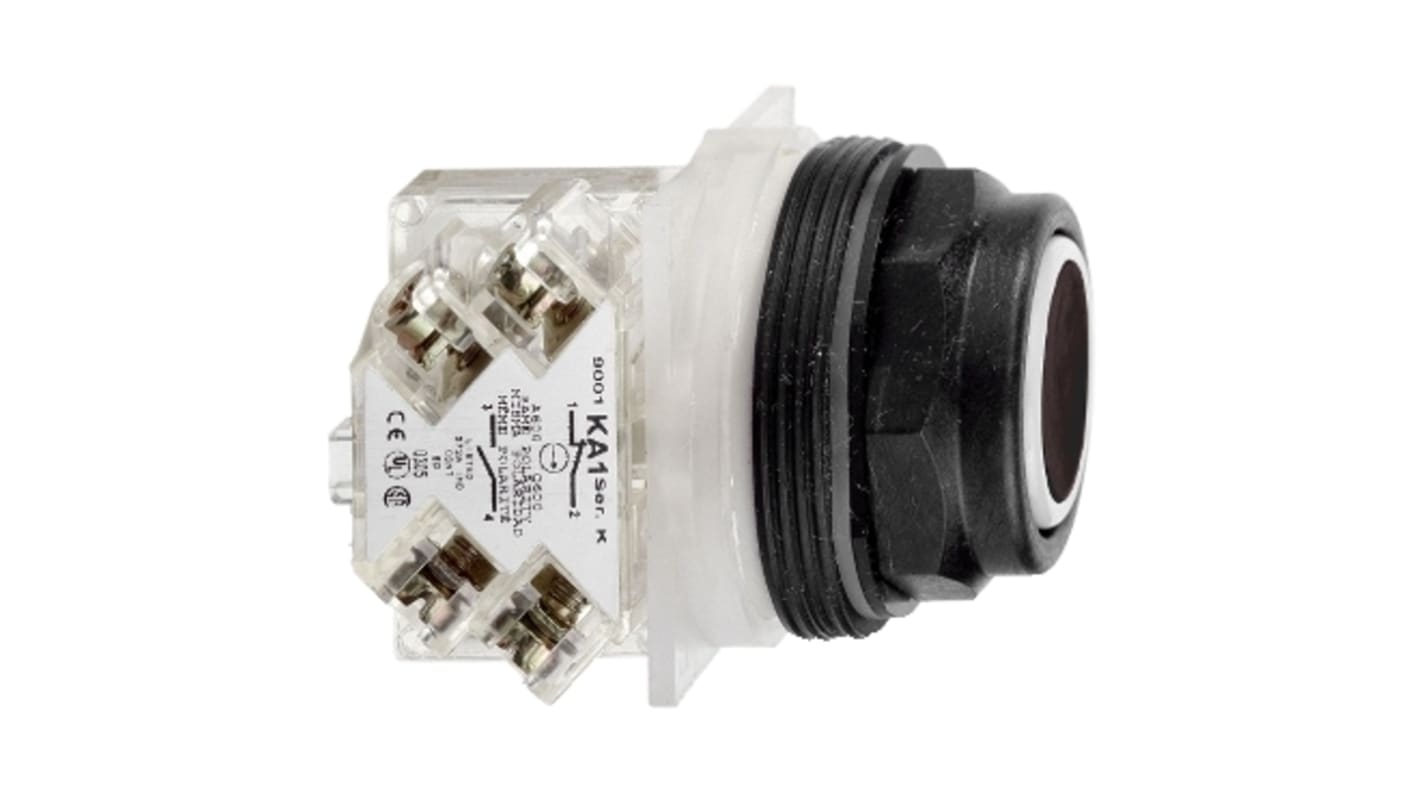

Schneider Electric Harmony 9001SK Series Illuminated Push Button Switch, Spring Return, Panel, 30 mm Cutout, SPDT, Black
- N° de stock RS:
- 746-4684
- Référence fabricant:
- 9001SKR1BH13
- Fabricant:
- Schneider Electric
Offre groupée disponible
Sous-total (1 unité)*
36,77 €
(TVA exclue)
44,49 €
(TVA incluse)
Ajouter 3 unités pour bénéficier d'une livraison gratuite
Temporairement en rupture de stock
- 2 unité(s) expédiée(s) à partir du 20 mars 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 36,77 € |
| 5 - 9 | 35,75 € |
| 10 + | 34,79 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 746-4684
- Référence fabricant:
- 9001SKR1BH13
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Switch Operation | Spring Return | |
| Illuminated | Yes | |
| Panel Cutout Size | 30 mm | |
| Series | Harmony 9001SK | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Screw | |
| LED Colour | Black | |
| IP Rating | IP66 | |
| Actuator Style | Octagonal | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520 and 852UL 508CSA C22-2 n° 14UL508NEMA A600-Q600EN/IEC 60204-1EN/ISO 13850 | |
| Legend | Blank | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Switch Operation Spring Return | ||
Illuminated Yes | ||
Panel Cutout Size 30 mm | ||
Series Harmony 9001SK | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Screw | ||
LED Colour Black | ||
IP Rating IP66 | ||
Actuator Style Octagonal | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C 4520 and 852UL 508CSA C22-2 n° 14UL508NEMA A600-Q600EN/IEC 60204-1EN/ISO 13850 | ||
Legend Blank | ||
Pushbuttons
The Harmony 9001SK series of round head pushbuttons provide a robust and reliable solution for a wide range of heavy industry applications.
Integrated earth ground connection (no ground wires required)
Easy installation with octagonal ring nut
Round head
Spring return operation
Rated to IP66
Schneider Electric Style 9 Harmony® Plastic 30mm Range
The Harmony 9001SK push buttons, pilot lights and selector switches are heavy duty products designed for heavy duty applications.
The SK series of push buttons offer interchangeable colour inserts, contact blocks and light modules for flexibility and to reduce inventory.
9001SK series are black plastic for corrosion resistant applications
Enhanced oil, dust and water tight protection
Fast installation - one screw for mounting of contact blocks
Finger safe contact blocks and light modules for improved safety
