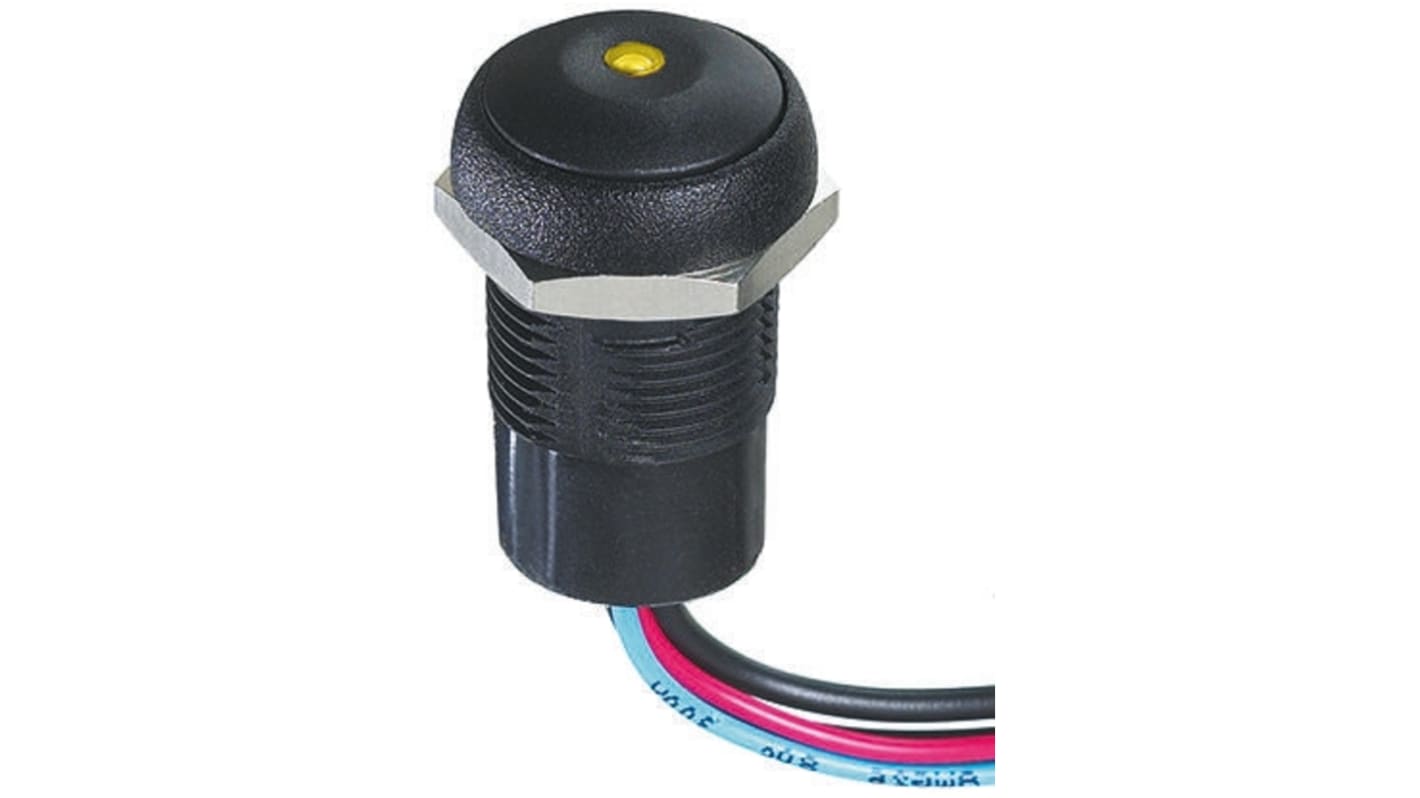

APEM IR Series Illuminated Push Button Switch, Momentary, Panel, 16 mm Cutout, SPST, Yellow LED, IP67, 48 V dc 250 V ac
- N° de stock RS:
- 691-1619
- Référence fabricant:
- IRR3F422LOY
- Fabricant:
- APEM
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
46,18 €
(TVA exclue)
55,88 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 119 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 46,18 € |
| 10 - 49 | 41,57 € |
| 50 - 99 | 34,64 € |
| 100 - 249 | 32,31 € |
| 250 + | 29,56 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 691-1619
- Référence fabricant:
- IRR3F422LOY
- Fabricant:
- APEM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | APEM | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | IR | |
| Panel Cutout Size | 16 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Through Hole | |
| LED Colour | Yellow | |
| IP Rating | IP67 | |
| Actuator Style | Button | |
| Contact AC Voltage | 250V ac | |
| Contact DC Voltage | 48V dc | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | Momentary | |
| Switch Contact Current | 200mA | |
| Standards/Approvals | RoHS | |
| Legend | Plunger Marking Available on Request for Models with Flat Round Actuator | |
| Sélectionner tout | ||
|---|---|---|
Marque APEM | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series IR | ||
Panel Cutout Size 16 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Through Hole | ||
LED Colour Yellow | ||
IP Rating IP67 | ||
Actuator Style Button | ||
Contact AC Voltage 250V ac | ||
Contact DC Voltage 48V dc | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration Momentary | ||
Switch Contact Current 200mA | ||
Standards/Approvals RoHS | ||
Legend Plunger Marking Available on Request for Models with Flat Round Actuator | ||
- Pays d'origine :
- FR
Illuminated momentary pushbutton switches,16mm, IP67, IRR Series
Red, Yellow and Green LEDs have a Forward Current of 20mA and a maximum Forward Voltage of 2.3V
Blue LEDs have a Forward Current of 20mA and a maximum Forward Voltage of 3.8V
White LEDs have a Forward Current of 20mA and a maximum Forward Voltage of 4.25V
