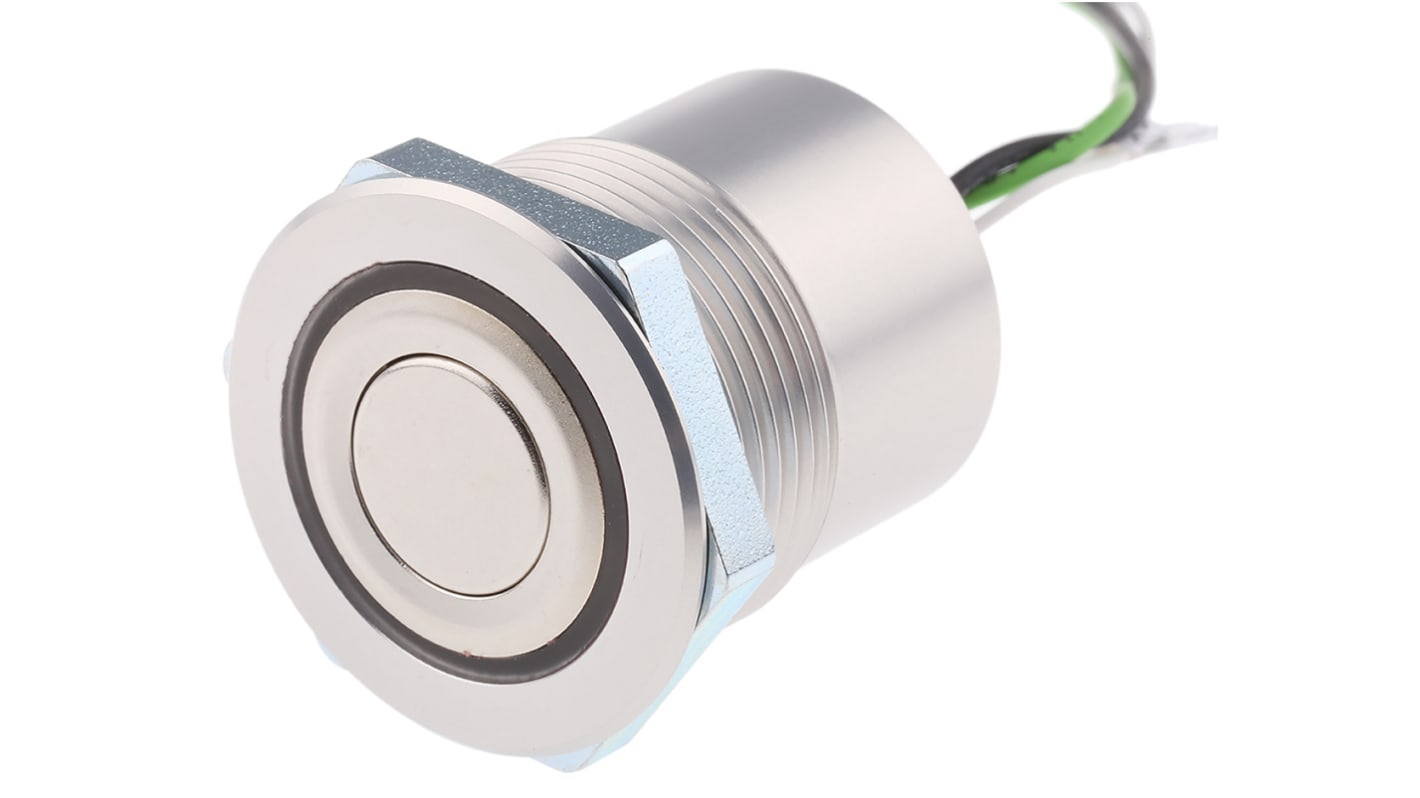

Schurter MCS 30 Series Illuminated Push Button Switch, Latching, Panel, 30 mm Cutout, SPST, Green LED, IP65, 48 V dc
- N° de stock RS:
- 441-3034
- Référence fabricant:
- 1241.6401
- Fabricant:
- Schurter
Offre groupée disponible
Sous-total (1 unité)*
68,15 €
(TVA exclue)
82,46 €
(TVA incluse)
Ajouter 2 unités pour bénéficier d'une livraison gratuite
En stock
- 39 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 10 unité(s) expédiée(s) à partir du 24 février 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 68,15 € |
| 5 - 9 | 63,31 € |
| 10 + | 61,27 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 441-3034
- Référence fabricant:
- 1241.6401
- Fabricant:
- Schurter
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schurter | |
| Switch Operation | Latching | |
| Product Type | Push Button Switch | |
| Actuator Colour | Silver | |
| Illuminated | Yes | |
| Panel Cutout Size | 30 mm | |
| Series | MCS 30 | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| LED Colour | Green | |
| Terminal Type | Screw | |
| IP Rating | IP65 | |
| Contact DC Voltage | 48V dc | |
| Minimum Operating Temperature | -20°C | |
| Actuator Style | Flush | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Switch Contact Current | 125 mA | |
| Legend | Lettering Possible | |
| Sélectionner tout | ||
|---|---|---|
Marque Schurter | ||
Switch Operation Latching | ||
Product Type Push Button Switch | ||
Actuator Colour Silver | ||
Illuminated Yes | ||
Panel Cutout Size 30 mm | ||
Series MCS 30 | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
LED Colour Green | ||
Terminal Type Screw | ||
IP Rating IP65 | ||
Contact DC Voltage 48V dc | ||
Minimum Operating Temperature -20°C | ||
Actuator Style Flush | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Switch Contact Current 125 mA | ||
Legend Lettering Possible | ||
Anti-Vandal M30 Push Button Switches - MCS 30 RI Series
Product Description
Schurter Anti-Vandal switches offer a mechanical ruggedised switch which is ideal for challenging environments. These high-quality switches offer a long lifetime and a reliable tactile feel.
30mm switches providing good tactile feeling when actuated
Intergrated ring illumination available in four colours
The supplied nut and sealing ring enables quick and sealed installation into a front panel
Silver contacts
Contact Rating: 125mA / 48Vdc (SPNO)
LED voltage 24Vdc
