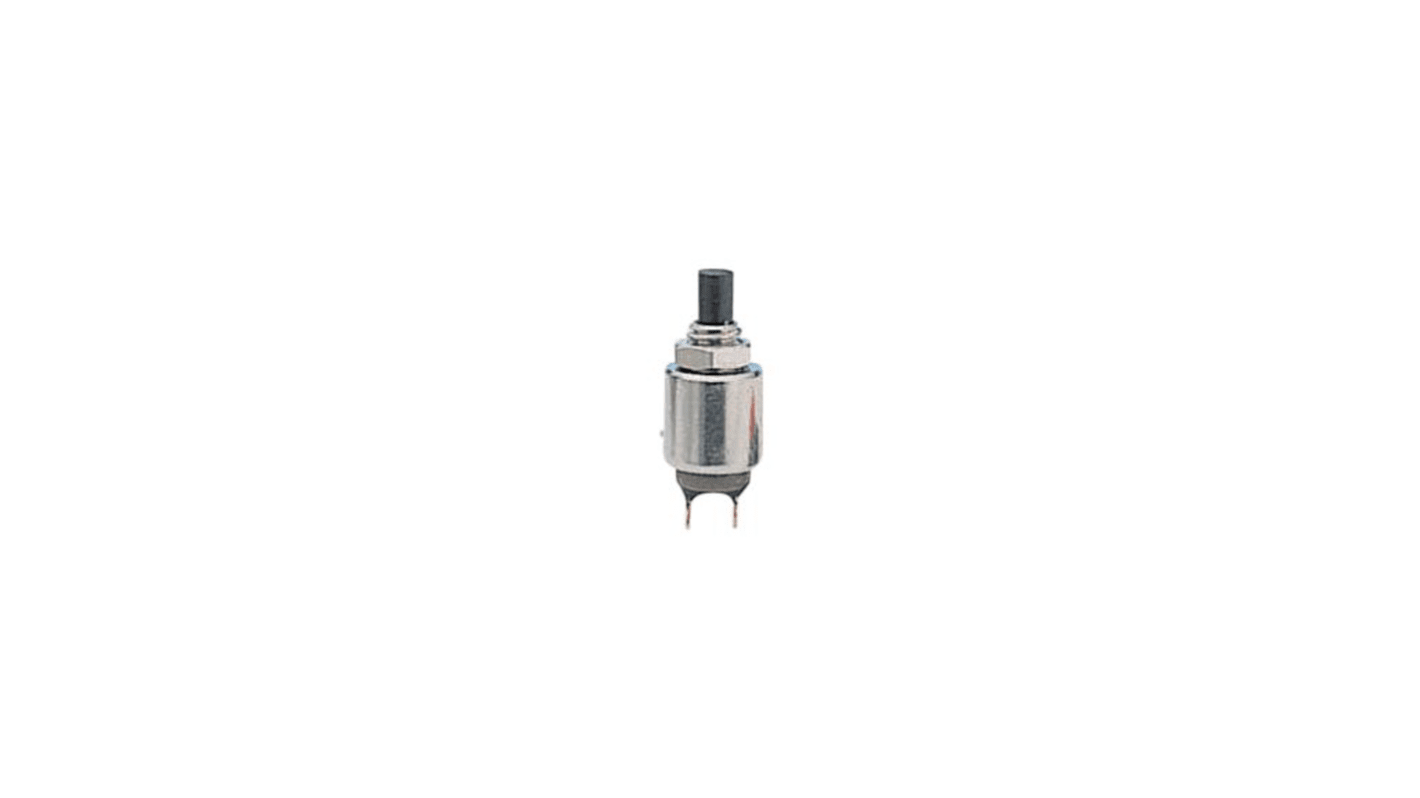

APEM 9000 Series Push Button Switch, Momentary, Panel, 8.15 mm Cutout, 30 V dc
- N° de stock RS:
- 283-7957
- Numéro d'article Distrelec:
- 135-08-058
- Référence fabricant:
- 9533CD
- Fabricant:
- APEM
Sous-total (1 unité)*
5,08 €
(TVA exclue)
6,15 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 435 unité(s) expédiée(s) à partir du 29 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 5,08 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 283-7957
- Numéro d'article Distrelec:
- 135-08-058
- Référence fabricant:
- 9533CD
- Fabricant:
- APEM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | APEM | |
| Product Type | Push Button Switch | |
| Actuator Colour | Black | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Series | 9000 | |
| Panel Cutout Size | 8.15 mm | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| Minimum Operating Temperature | -30°C | |
| Contact DC Voltage | 30V dc | |
| Actuator Style | Plunger | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 65°C | |
| Switch Contact Current | 100mA | |
| Standards/Approvals | REACH, RoHS | |
| Legend | Blank | |
| Sélectionner tout | ||
|---|---|---|
Marque APEM | ||
Product Type Push Button Switch | ||
Actuator Colour Black | ||
Switch Operation Momentary | ||
Illuminated No | ||
Series 9000 | ||
Panel Cutout Size 8.15 mm | ||
Mount Type Panel | ||
Terminal Type Solder | ||
Minimum Operating Temperature -30°C | ||
Contact DC Voltage 30V dc | ||
Actuator Style Plunger | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 65°C | ||
Switch Contact Current 100mA | ||
Standards/Approvals REACH, RoHS | ||
Legend Blank | ||
- Pays d'origine :
- FR
The 9000 series sub miniature momentary pushbutton switch with CD gold-plated brass contacts offers a reliable solution for various electrical applications. With self-cleaning and butt action contacts, this switch ensures optimal performance and longevity in operation.
Panel and PC mount models available for flexible installation options
Various plunger options to suit different user preferences
Max. current/voltage rating of 100mA 30VDC for efficient power delivery
Insulation resistance of 1.000 MΩ min. at 500VDC for safe operation
Electrical life of up to 250,000 cycles for long-lasting use
