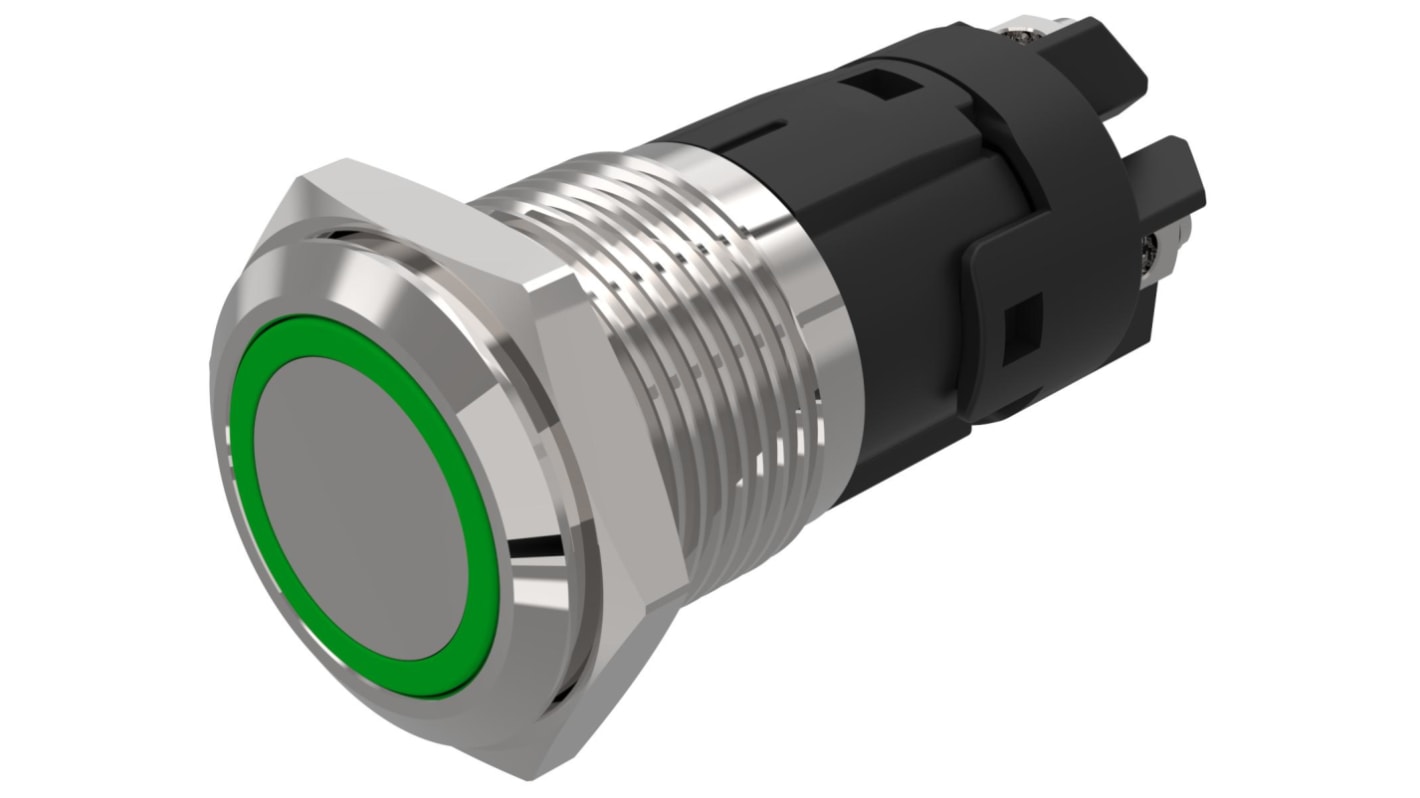

EAO 82 Series Illuminated Illuminated Push Button, Latching, Panel, 16 mm Cutout, SPDT, Green LED, IP65, IP67, 12 V dc
- N° de stock RS:
- 247-8841
- Numéro d'article Distrelec:
- 303-16-269
- Référence fabricant:
- 82-4552.2133
- Fabricant:
- EAO
Offre groupée disponible
Sous-total (1 unité)*
22,24 €
(TVA exclue)
26,91 €
(TVA incluse)
Ajouter 4 unités pour bénéficier d'une livraison gratuite
En stock
- 6 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 22,24 € |
| 10 - 99 | 21,70 € |
| 100 + | 19,62 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 247-8841
- Numéro d'article Distrelec:
- 303-16-269
- Référence fabricant:
- 82-4552.2133
- Fabricant:
- EAO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | EAO | |
| Product Type | Illuminated Push Button | |
| Actuator Colour | Silver | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Panel Cutout Size | 16 mm | |
| Series | 82 | |
| Mount Type | Panel | |
| Contact Configuration | SPDT | |
| Terminal Type | Screw | |
| LED Colour | Green | |
| IP Rating | IP65, IP67 | |
| Minimum Operating Temperature | 70°C | |
| Actuator Style | Flat | |
| Contact DC Voltage | 12V dc | |
| Contact AC Voltage | 12V ac | |
| Maximum Operating Temperature | -30°C | |
| Switch Configuration | Off-On | |
| Standards/Approvals | UL, CB, CCC, cUL | |
| Switch Contact Current | 3 A | |
| Width | 16 mm | |
| Length | 18mm | |
| Height | 39.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque EAO | ||
Product Type Illuminated Push Button | ||
Actuator Colour Silver | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Panel Cutout Size 16 mm | ||
Series 82 | ||
Mount Type Panel | ||
Contact Configuration SPDT | ||
Terminal Type Screw | ||
LED Colour Green | ||
IP Rating IP65, IP67 | ||
Minimum Operating Temperature 70°C | ||
Actuator Style Flat | ||
Contact DC Voltage 12V dc | ||
Contact AC Voltage 12V ac | ||
Maximum Operating Temperature -30°C | ||
Switch Configuration Off-On | ||
Standards/Approvals UL, CB, CCC, cUL | ||
Switch Contact Current 3 A | ||
Width 16 mm | ||
Length 18mm | ||
Height 39.5mm | ||
- Pays d'origine :
- CH
The EAO pushbutton has snap-action switching element system. It has operating temperature range from -30 °C to + 70 °C. It is damp heat resistant for 21 days according to IEC 60512-11.
Silver contacts
CB, CCC, C UL, and UL approved
