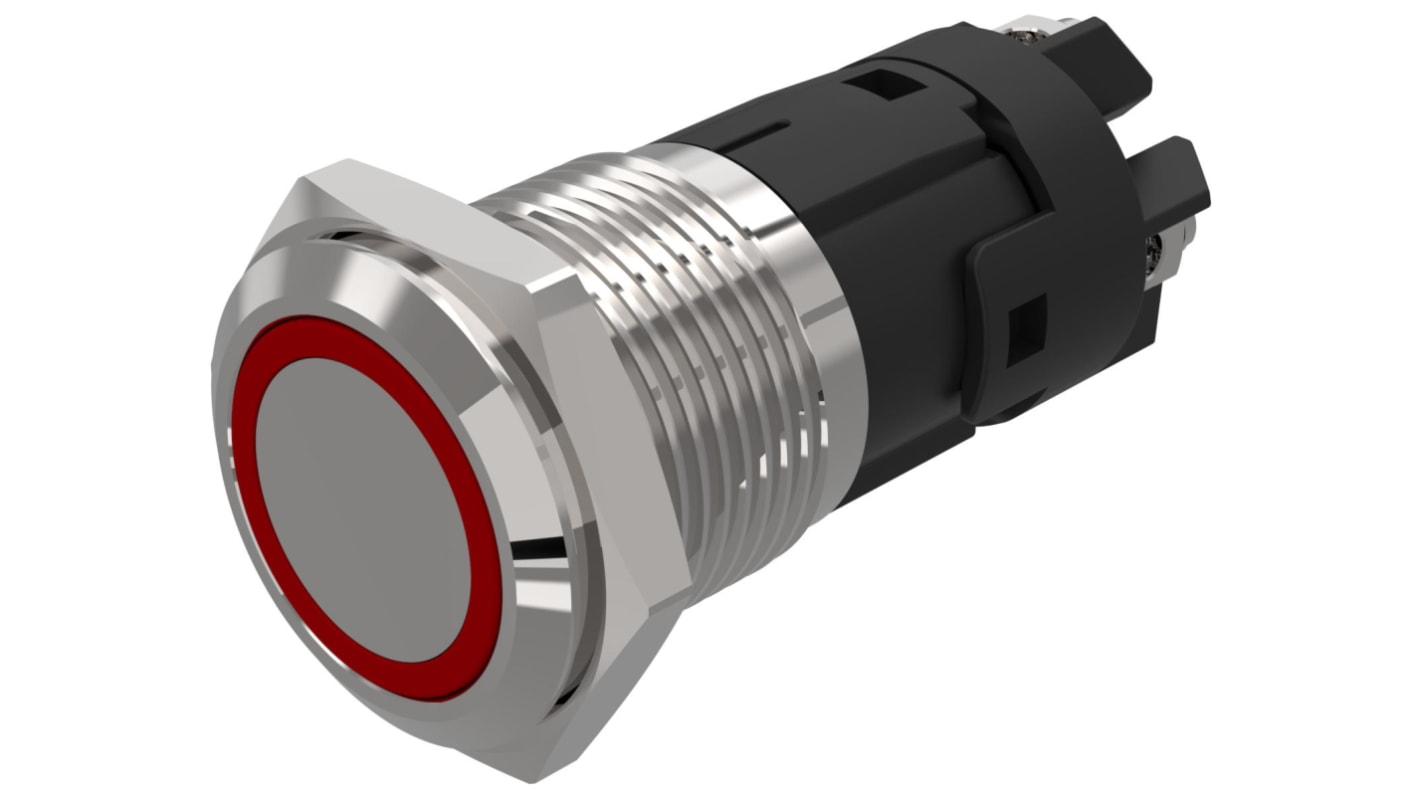

EAO 82 Series Illuminated Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Red LED, 24V,
- N° de stock RS:
- 247-8780
- Numéro d'article Distrelec:
- 303-16-213
- Référence fabricant:
- 82-4152.1114
- Fabricant:
- EAO
Offre groupée disponible
Sous-total (1 unité)*
22,24 €
(TVA exclue)
26,91 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- Plus 22 unité(s) expédiée(s) à partir du 15 décembre 2025
- Plus 44 unité(s) expédiée(s) à partir du 15 décembre 2025
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 22,24 € |
| 10 - 99 | 21,70 € |
| 100 + | 19,62 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 247-8780
- Numéro d'article Distrelec:
- 303-16-213
- Référence fabricant:
- 82-4152.1114
- Fabricant:
- EAO
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | EAO | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Panel Cut Out Diameter | 16mm | |
| Series | 82 | |
| Mounting Type | Panel Mount | |
| Contact Configuration | SPDT | |
| Voltage Rating | 24V | |
| LED Colour | Red | |
| IP Rating | IP65, IP67 | |
| Push Button Material | Stainless Steel | |
| Contact Current Rating | 3A | |
| Contact Material | Silver Alloy | |
| Manufacturer Part No. | 82-4152.1114 | |
| Contact AC Voltage Rating | 24V | |
| Contact DC Voltage Rating | 24V | |
| Case Colour | Silver | |
| Operating Temperature Range | -30°C to +70°C | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -30°C | |
| Sélectionner tout | ||
|---|---|---|
Marque EAO | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Panel Cut Out Diameter 16mm | ||
Series 82 | ||
Mounting Type Panel Mount | ||
Contact Configuration SPDT | ||
Voltage Rating 24V | ||
LED Colour Red | ||
IP Rating IP65, IP67 | ||
Push Button Material Stainless Steel | ||
Contact Current Rating 3A | ||
Contact Material Silver Alloy | ||
Manufacturer Part No. 82-4152.1114 | ||
Contact AC Voltage Rating 24V | ||
Contact DC Voltage Rating 24V | ||
Case Colour Silver | ||
Operating Temperature Range -30°C to +70°C | ||
Terminal Type Screw | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -30°C | ||
- Pays d'origine :
- CH
The EAO pushbutton has snap-action switching element system. It has operating temperature range from -30 °C to + 70 °C. It is damp heat resistant for 21 days according to IEC 60512-11.
Silver contacts
CB, CCC, C UL, and UL approved
CB, CCC, C UL, and UL approved
