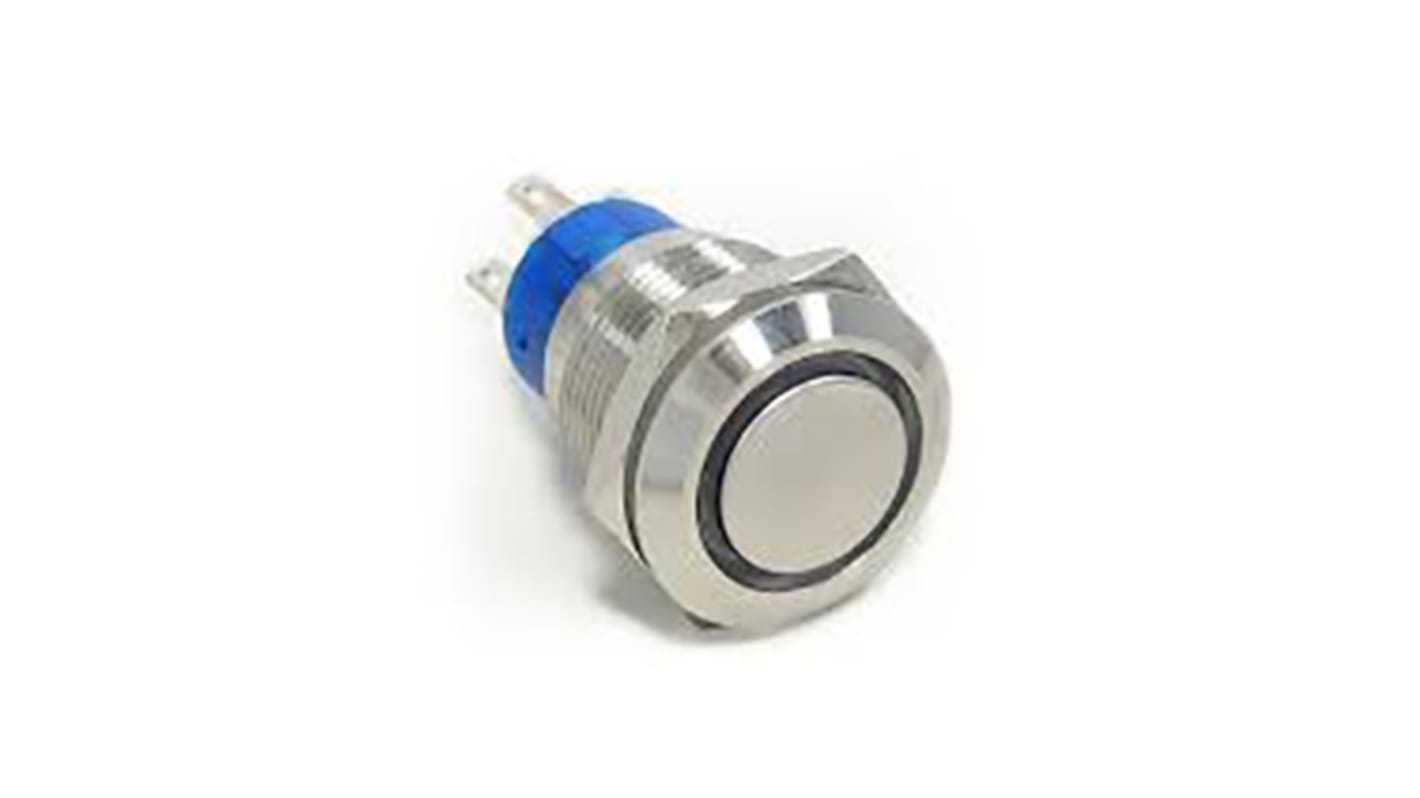

TE Connectivity AV22 Series Push Button Switch, Momentary, Panel, 22.2 mm Cutout, DPDT, IP67 250 V

Voir la catégorie
Temporairement en rupture de stock
N° de stock RS:
123-6255
Référence fabricant:
AV2220000Q04
Fabricant:
TE Connectivity
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

TE Connectivity

Actuator Colour

Silver

Switch Operation

Momentary

Product Type

Push Button Switch

Illuminated

No

Panel Cutout Size

22.2 mm

Series

AV22

Mount Type

Panel

Contact Configuration

DPDT

Terminal Type

Wire Lug

IP Rating

IP67

Actuator Style

Push Button

Minimum Operating Temperature

-20°C

Contact AC Voltage

250V

Switch Configuration

DPST

Maximum Operating Temperature

55°C

Length

22mm

Standards/Approvals

UL (E46765), REACH Compliant, EU ELV Compliant

Switch Contact Current

3 A

TE Connectivity AV22 Series Anti Vandal Switches


TE Alcoswitch anti-vandal switches have been designed with industrial security & reliability in mind. The AV22 series are a 22 mm panel-mounting product, available in a variety of combinations such as momentary & latching, with optional LED indication. The TE Alcoswitch series provides a long-lasting and premium user Interface solution for your panel mounting applications.

Features and Benefits

Provides a highly customisable vandal-proof product with premium look & feel.

Vandal-proof design with rear mounting jam nut.

Various pushbutton symbols including plain, ring & power logo.

Typical Applications include:

Control & communications equipment.

Elevators & escalators.

Instrumentation equipment.

Standards

RoHS, REACH & UL Approved
