APEM IS Series Push Button Switch, Momentary, Panel, 13.6 mm Cutout, SPST, IP67, 32 V 32 V ac
- N° de stock RS:
- 122-6270
- Référence fabricant:
- ISR3SADA00
- Fabricant:
- APEM
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
26,37 €
(TVA exclue)
31,91 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 79 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 26,37 € |
| 10 - 49 | 23,73 € |
| 50 - 99 | 19,78 € |
| 100 - 249 | 18,46 € |
| 250 + | 16,89 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 122-6270
- Référence fabricant:
- ISR3SADA00
- Fabricant:
- APEM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | APEM | |
| Switch Operation | Momentary | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | IS | |
| Panel Cutout Size | 13.6 mm | |
| Mount Type | Panel | |
| Contact Configuration | SPST | |
| Terminal Type | Solder Lug | |
| IP Rating | IP67 | |
| Contact DC Voltage | 32V | |
| Contact AC Voltage | 32V ac | |
| Actuator Style | Round | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | NO | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 100mA | |
| Standards/Approvals | IEC 512-4, IEC 512-6, IEC 60529, UL, UL Recognised File E-83438 | |
| Legend | Actuator Marking Available (Symbol 10 mm max) | |
| Sélectionner tout | ||
|---|---|---|
Marque APEM | ||
Switch Operation Momentary | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series IS | ||
Panel Cutout Size 13.6 mm | ||
Mount Type Panel | ||
Contact Configuration SPST | ||
Terminal Type Solder Lug | ||
IP Rating IP67 | ||
Contact DC Voltage 32V | ||
Contact AC Voltage 32V ac | ||
Actuator Style Round | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration NO | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 100mA | ||
Standards/Approvals IEC 512-4, IEC 512-6, IEC 60529, UL, UL Recognised File E-83438 | ||
Legend Actuator Marking Available (Symbol 10 mm max) | ||
- Pays d'origine :
- FR

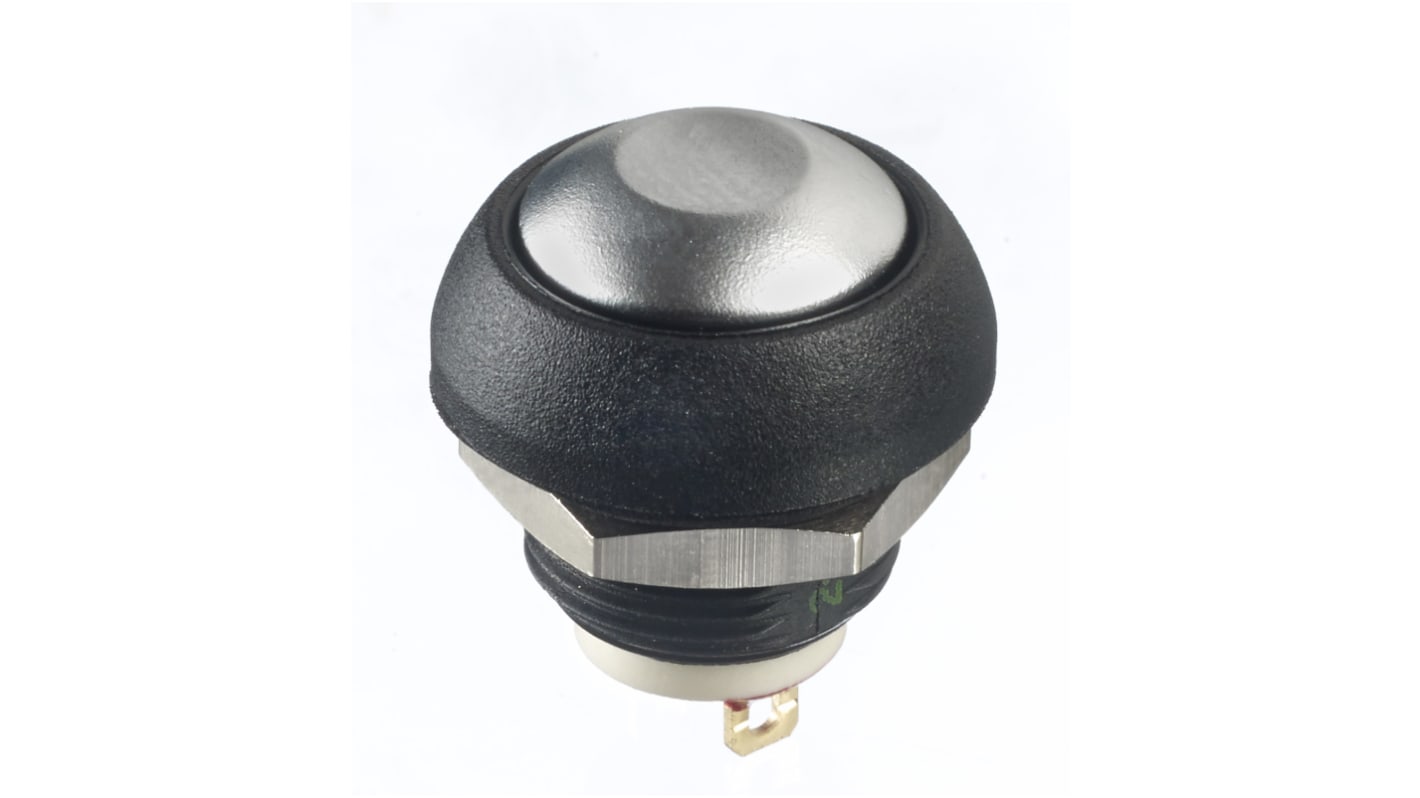

Momentary pushbutton switches IS 67 Series IP – lug terminals, ø 12mm bushing
Thin behind-panel depth.
Compact and light.
Plastic button and case.
Excellent tactile feedback.
Standards
IEC 512-4 - IEC-512-6
