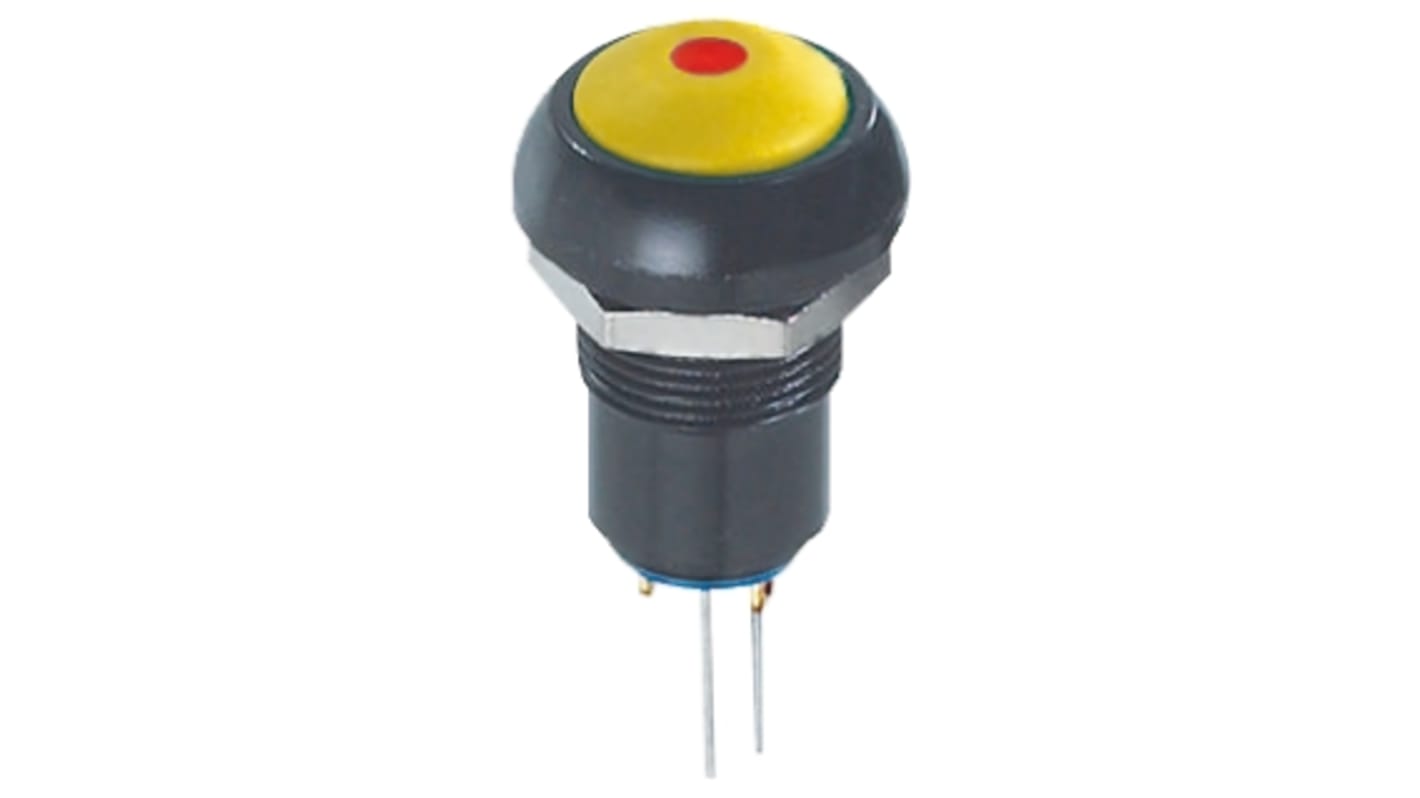

APEM IP Series Illuminated Push Button Switch, Latching, Panel, 13.6 mm Cutout, Red LED, IP67, 50 V dc 48 V ac
- N° de stock RS:
- 223-773
- Référence fabricant:
- IPR1SAD5L0S
- Fabricant:
- APEM
Offre groupée disponible
Sous-total (1 unité)*
33,81 €
(TVA exclue)
40,91 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 67 unité(s) prête(s) à être expédiée(s)
- Plus 178 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 33,81 € |
| 10 - 49 | 30,41 € |
| 50 - 99 | 25,38 € |
| 100 - 249 | 23,67 € |
| 250 + | 21,63 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 223-773
- Référence fabricant:
- IPR1SAD5L0S
- Fabricant:
- APEM
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | APEM | |
| Product Type | Push Button Switch | |
| Actuator Colour | Yellow | |
| Switch Operation | Latching | |
| Illuminated | Yes | |
| Series | IP | |
| Panel Cutout Size | 13.6 mm | |
| Mount Type | Panel | |
| Terminal Type | Solder | |
| LED Colour | Red | |
| IP Rating | IP67 | |
| Contact AC Voltage | 48V ac | |
| Actuator Style | Dome | |
| Contact DC Voltage | 50V dc | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 5 A | |
| Standards/Approvals | RoHS | |
| Height | 16.00mm | |
| Width | 17.5 mm | |
| Length | 27.6mm | |
| Sélectionner tout | ||
|---|---|---|
Marque APEM | ||
Product Type Push Button Switch | ||
Actuator Colour Yellow | ||
Switch Operation Latching | ||
Illuminated Yes | ||
Series IP | ||
Panel Cutout Size 13.6 mm | ||
Mount Type Panel | ||
Terminal Type Solder | ||
LED Colour Red | ||
IP Rating IP67 | ||
Contact AC Voltage 48V ac | ||
Actuator Style Dome | ||
Contact DC Voltage 50V dc | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 5 A | ||
Standards/Approvals RoHS | ||
Height 16.00mm | ||
Width 17.5 mm | ||
Length 27.6mm | ||
- Pays d'origine :
- FR
Illuminated ON/OFF latching action pushbutton switches IP 67 - Series IP – lug terminals, ø 12mm bushing
For harsh environments.
Resistant to salt spray.
Excellent tactile feedback.
Available in round or square version.
Standards
IEC 512-4 - IEC-512-6
