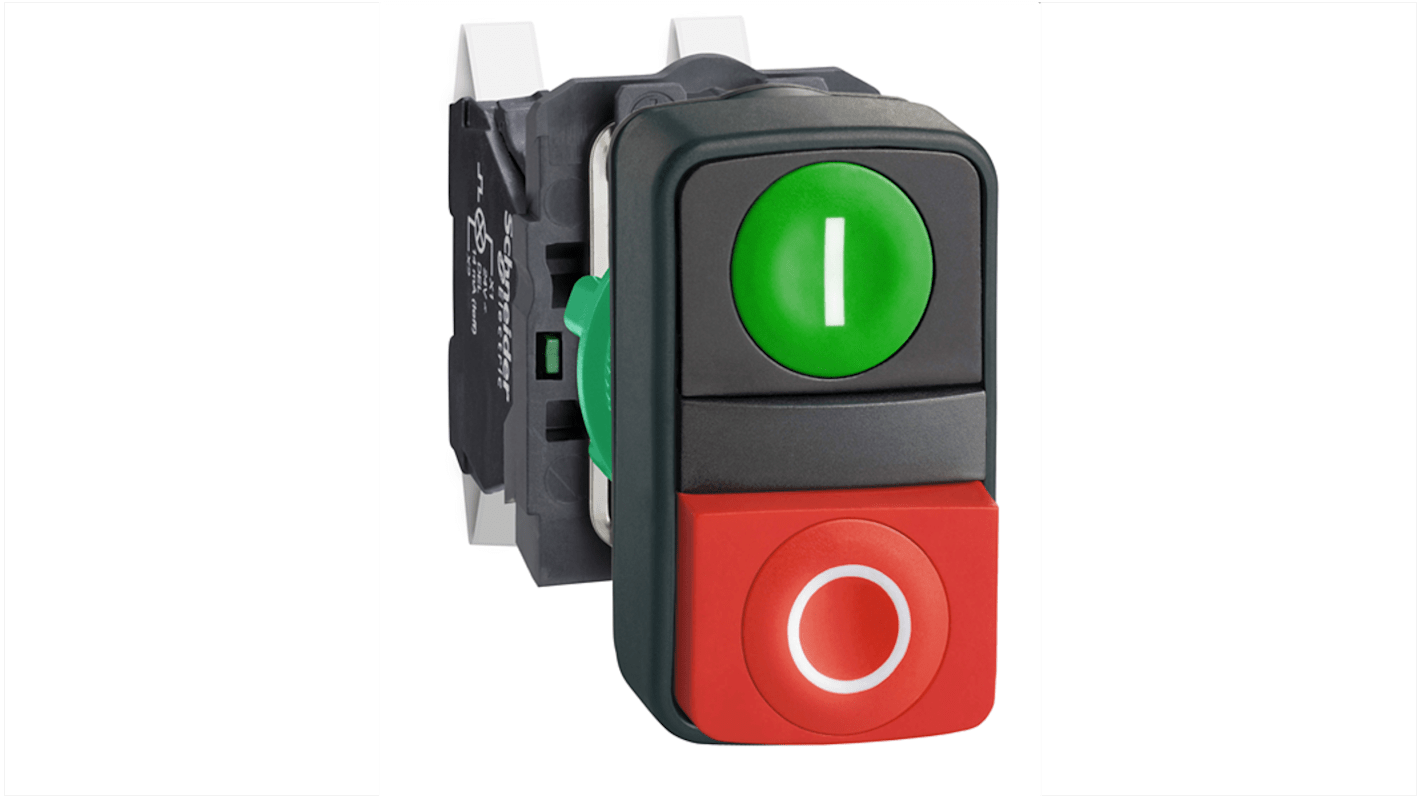

Schneider Electric Harmony Series Push Button Switch, 1 NO/1 NC, IP66, IP67, IP69, IP69K
- N° de stock RS:
- 207-284
- Référence fabricant:
- XB5AL734155
- Fabricant:
- Schneider Electric
Sous-total (1 unité)*
30,69 €
(TVA exclue)
37,13 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- 3 unité(s) expédiée(s) à partir du 26 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 30,69 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 207-284
- Référence fabricant:
- XB5AL734155
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | Harmony | |
| Contact Configuration | 1 NO/1 NC | |
| Push Button Style | Rectangular | |
| Terminal Type | Plug-In | |
| IP Rating | IP66, IP67, IP69, IP69K | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
| Standards/Approvals | IEC 60947-1IEC 60947-5-1 IEC 60947-5-4 IEC 60947-5-5 UL 60947-1 UL 60947-5-1 UL 60947-5-5 UL 1059 UL 486E CSA C22.2 No 60947-1 CSA C22.2 No 60947-5-1 CSA CNo 65IACS E10 | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series Harmony | ||
Contact Configuration 1 NO/1 NC | ||
Push Button Style Rectangular | ||
Terminal Type Plug-In | ||
IP Rating IP66, IP67, IP69, IP69K | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Standards/Approvals IEC 60947-1IEC 60947-5-1 IEC 60947-5-4 IEC 60947-5-5 UL 60947-1 UL 60947-5-1 UL 60947-5-5 UL 1059 UL 486E CSA C22.2 No 60947-1 CSA C22.2 No 60947-5-1 CSA CNo 65IACS E10 | ||
- Pays d'origine :
- FR
Schneider Electric Harmony Series Push Button Switch, 22mm Panel Cut Out Diameter, 10A Current Rating - XB5AL734155
This push button switch is an integral component for control systems in various applications. With a rectangular design and a panel cut-out diameter of 22mm, it is perfect for seamless integration into control panels. This device features a robust construction suitable for demanding environments, with an operating temperature range from -40°C to +70°C.
Features & Benefits
• Spring return mechanism ensures prompt reset after activation
• 10A contact rating supports substantial load requirements
• IP66, IP67, IP69, IP69K ratings provide excellent waterproofing
• Available in green, red, and black for versatile design options
• Durable silver alloy contact material enhances longevity
• Non-illuminated design reduces accidental activations
• 10A contact rating supports substantial load requirements
• IP66, IP67, IP69, IP69K ratings provide excellent waterproofing
• Available in green, red, and black for versatile design options
• Durable silver alloy contact material enhances longevity
• Non-illuminated design reduces accidental activations
Applications
• Used for panel controls in industrial machinery
• Utilised in electrical circuits for safe operation
• Implemented in automation systems for precise control
• Suitable for outdoor equipment requiring weather resistance
• Utilised in electrical circuits for safe operation
• Implemented in automation systems for precise control
• Suitable for outdoor equipment requiring weather resistance
What are the advantages of using this switch with automation systems?
Its quick response due to the spring return mechanism enhances operational efficiency, enabling precise control within automation setups. The IP ratings ensure it withstands harsh conditions, making it suitable for outdoor and dynamic applications.
How does the contact configuration support diverse electrical setups?
The configuration of 1NO + 1NC allows for both normally open and normally closed operations, facilitating versatile control options in electrical designs. This adaptability helps in creating complex control schemes.
What makes the construction suitable for low-temperature environments?
The switch operates effectively within a temperature range of -40°C to +70°C, ensuring reliable performance even in frigid conditions, VITAL for applications in colder climates.
Can this switch integrate easily into existing control panels?
With a 22mm panel cut-out, it is designed to fit standard installations, allowing for simple integration into various control panels without extensive modifications.
