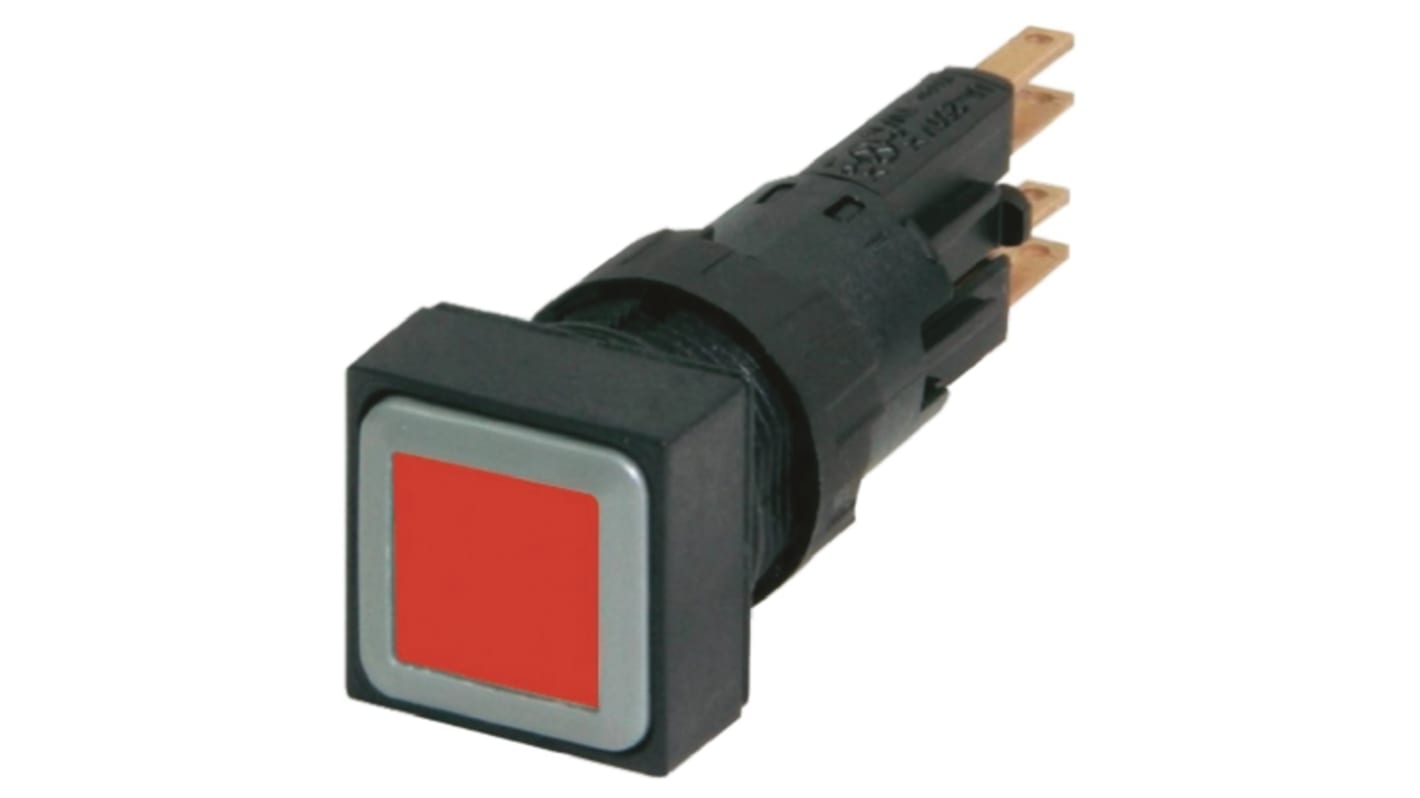

Eaton RMQ16 Series Red Momentary Push Button, 16mm Cutout, IP65
- N° de stock RS:
- 207-3044
- Référence fabricant:
- 086444 Q25D-RT
- Fabricant:
- Eaton
Indisponible
RS n'aura plus ce produit en stock.
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
la pièce
10,24 €
(TVA exclue)
12,39 €
(TVA incluse)
- N° de stock RS:
- 207-3044
- Référence fabricant:
- 086444 Q25D-RT
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Series | RMQ16 | |
| Cutout Diameter | 16mm | |
| Push Button Colour | Red | |
| Push Button Actuation | Momentary | |
| Push Button Style | Square | |
| Push Button Material | Plastic | |
| IP Rating | IP65 | |
| Push Button Diameter | 25mm | |
| Illuminated | No | |
| Maximum Operating Temperature | +60°C | |
| Terminal Type | Push In | |
| Mounting Type | Panel Mount | |
| Minimum Operating Temperature | -25°C | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Series RMQ16 | ||
Cutout Diameter 16mm | ||
Push Button Colour Red | ||
Push Button Actuation Momentary | ||
Push Button Style Square | ||
Push Button Material Plastic | ||
IP Rating IP65 | ||
Push Button Diameter 25mm | ||
Illuminated No | ||
Maximum Operating Temperature +60°C | ||
Terminal Type Push In | ||
Mounting Type Panel Mount | ||
Minimum Operating Temperature -25°C | ||
- Pays d'origine :
- CN
Momentary Action Pushbutton Switch
Available in 18mm and 25mm square bezel sizes
Note
Eaton formerly known as Moeller
Eaton RMQ 16mm Range
A range of control devices with an IP65 protection rating and conforming to IEC 947-5-1. The standard fixing aperture is 16mm. Behind panel depth (including terminals) is only 49mm. The devices can be butted together allowing a greater number of devices to be fitted into a smaller area compared to 22.5mm devices. One or two normally open or normally closed contacts, which are available separately in this range, can be fitted to each switch. Colour coded contacts 230V/4A, having low current voltage switching with a life expectancy of three million operations.
