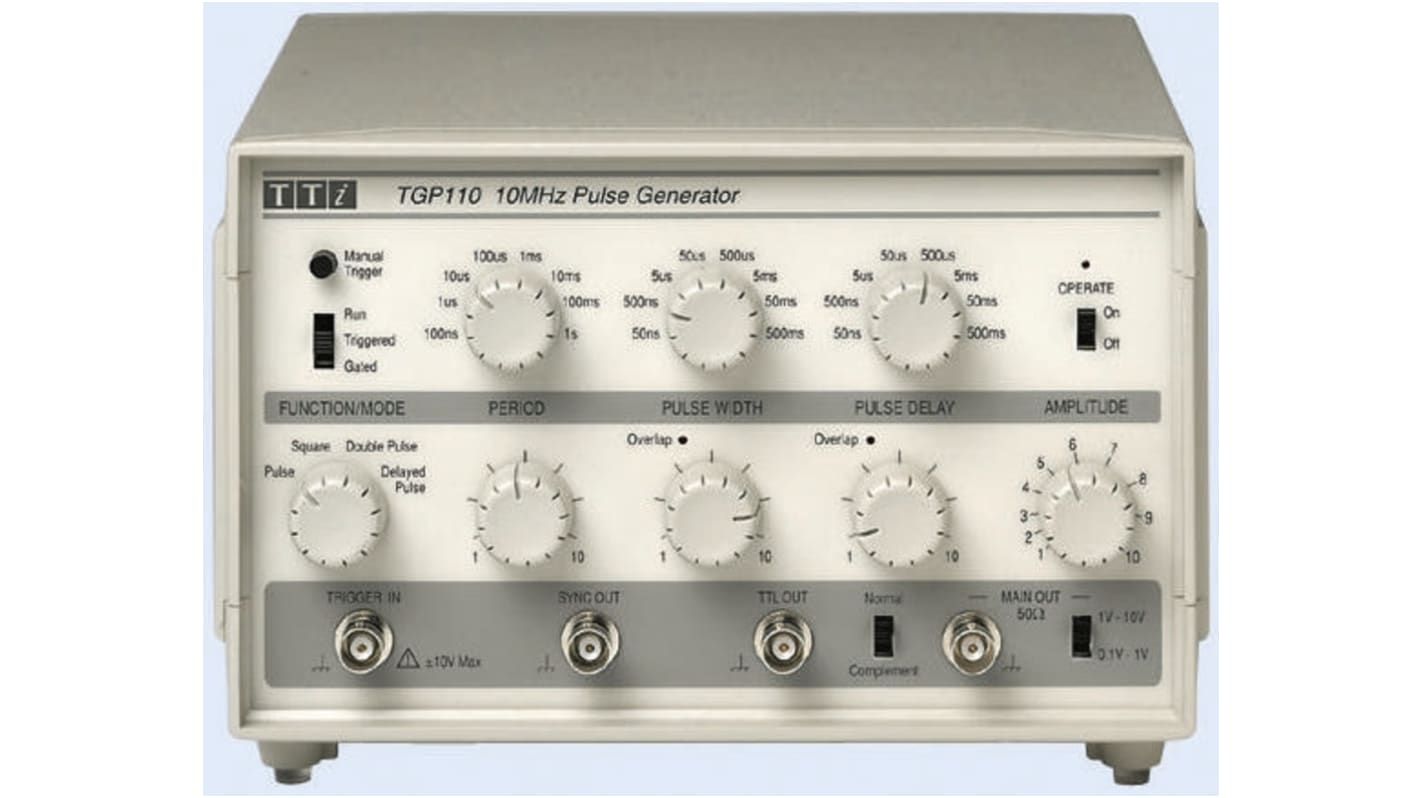

Aim-TTi TGP110 Pulse Generator, 0.1 Hz min, 10 MHz max, RSCAL
- N° de stock RS:
- 343-4872
- Référence fabricant:
- TGP110
- Fabricant:
- Aim-TTi
Sous-total (1 unité)*
530,27 €
(TVA exclue)
641,63 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 10 unité(s) expédiée(s) à partir du 01 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 530,27 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 343-4872
- Référence fabricant:
- TGP110
- Fabricant:
- Aim-TTi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Aim-TTi | |
| Product Type | Pulse Generator | |
| Maximum Frequency | 10MHz | |
| Minimum Frequency | 0.1Hz | |
| Maximum Pulse Width | 5 s | |
| Modes | Delayed Pulse, Double Pulse, Normal Pulse, Run, Square Pulse, Triggered | |
| Minimum Pulse Width | 50ns | |
| Maximum Pulse Delay | 5 s | |
| Minimum Pulse Delay | 50ns | |
| Adjustable Output Amplitude | Yes | |
| Jitter | 0.1% | |
| Rise - Fall Time | 15ns | |
| Plug Type | 3-Pin (Global), Type C | |
| Input Impedance | 10kΩ | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 40°C | |
| Length | 230mm | |
| Height | 140mm | |
| Standards/Approvals | No | |
| Width | 220mm | |
| Interface Type | GPIB, LAN, USB | |
| Weight | 1.6kg | |
| Calibrated | RSCAL | |
| Sélectionner tout | ||
|---|---|---|
Marque Aim-TTi | ||
Product Type Pulse Generator | ||
Maximum Frequency 10MHz | ||
Minimum Frequency 0.1Hz | ||
Maximum Pulse Width 5 s | ||
Modes Delayed Pulse, Double Pulse, Normal Pulse, Run, Square Pulse, Triggered | ||
Minimum Pulse Width 50ns | ||
Maximum Pulse Delay 5 s | ||
Minimum Pulse Delay 50ns | ||
Adjustable Output Amplitude Yes | ||
Jitter 0.1% | ||
Rise - Fall Time 15ns | ||
Plug Type 3-Pin (Global), Type C | ||
Input Impedance 10kΩ | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 40°C | ||
Length 230mm | ||
Height 140mm | ||
Standards/Approvals No | ||
Width 220mm | ||
Interface Type GPIB, LAN, USB | ||
Weight 1.6kg | ||
Calibrated RSCAL | ||
Statut RoHS : Exempté
- Pays d'origine :
- GB
Aim-TTi Pulse Generator, 10 kΩ Input Impedance, 10 MHz Maximum Frequency - TGP110
This pulse generator by Aim-TTi is an essential instrument designed for generating pulses with precision and control in electronic systems. With adjustable output amplitude and a wide frequency range of 0.1Hz to 10MHz, this generator offers high-precision pulse generation capabilities. The device is equipped with various modes such as delayed, triggered, and gated, allowing for versatile pulse waveform generation. Additionally, the pulse generator features high accuracy and reliability, making it suitable for a range of applications in different industries.
Features & Benefits
• Adjustable output amplitude for precise control
• Wide frequency range from 0.1Hz to 10MHz
• Various pulse modes including delayed and triggered
• High precision pulse generation for accurate results
• European and British plug types for versatile connectivity
Applications
• For precise timing control in electronic systems
• Used for generating trigger pulses with defined timing relationships
• Ideal for creating pulses with specific widths and delays
Can it generate pulses with a minimum width of 50ns?
Yes, the pulse generator can generate pulses with a minimum width of 50ns.
Will it provide high-frequency accuracy for precise pulse generation?
Yes, the device offers high-frequency accuracy for accurate pulse generation.
Is it suitable for applications requiring adjustable output amplitude?
Yes, the generator is suited for applications that require adjustable output amplitudes.
