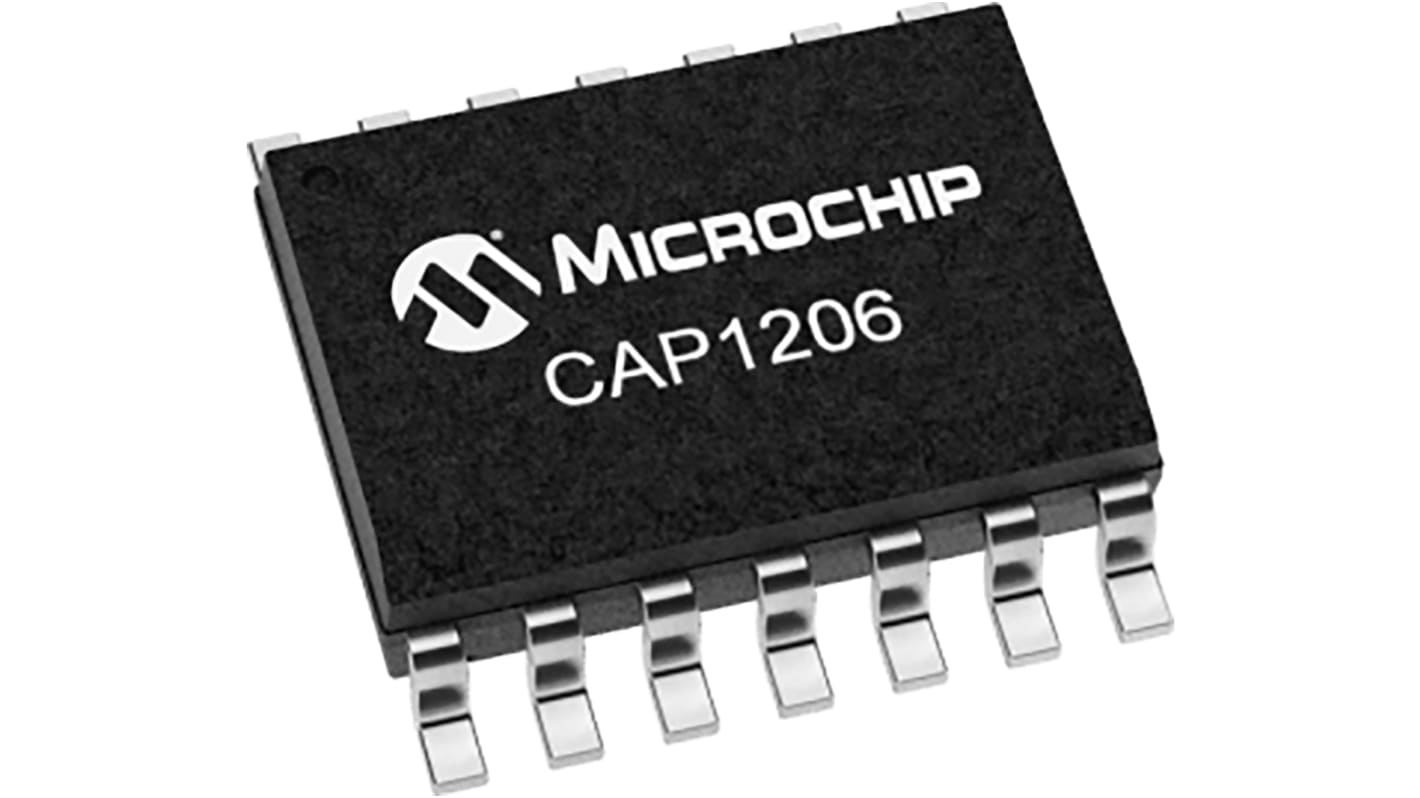

CAP1206-1-SL Microchip, CAP1206 Capacitive 3 V to 5.5 V 14-Pin SOIC

Voir la catégorie
Indisponible
RS n'aura plus ce produit en stock.
N° de stock RS:
177-1807
Référence fabricant:
CAP1206-1-SL
Fabricant:
Microchip
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Microchip

Sensor Type

Capacitive

Maximum Switching Frequency

400 kHz

Maximum Output Voltage

0.4 V

Output Type

Open Drain

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Maximum Supply Current

750 μA

Dimensions

8.65 x 3.9 x 1.5mm

Height

1.5mm

Length

8.65mm

Series

CAP1206

Minimum Operating Temperature

-40 °C

Maximum Operating Supply Voltage

5.5 V

Minimum Operating Supply Voltage

3 V

Width

3.9mm

Maximum Operating Temperature

+125 °C

The CAP1206 is a turnkey capacitive touch controller providing a wide variety of button and proximity functionality, and making it easy for designers to add aesthetically pleasing, low-cost and robust touch interfaces

Key Features:
6 Capacitive Touch Sensor inputs
Programmable sensitivity
Automatic recalibration
Low Power operations:
8kV protection
Communication interface
I²C™ and SMBus
Operating Conditions
3.0V to 5.5V
Package type
10-pin 3x3 DFN
