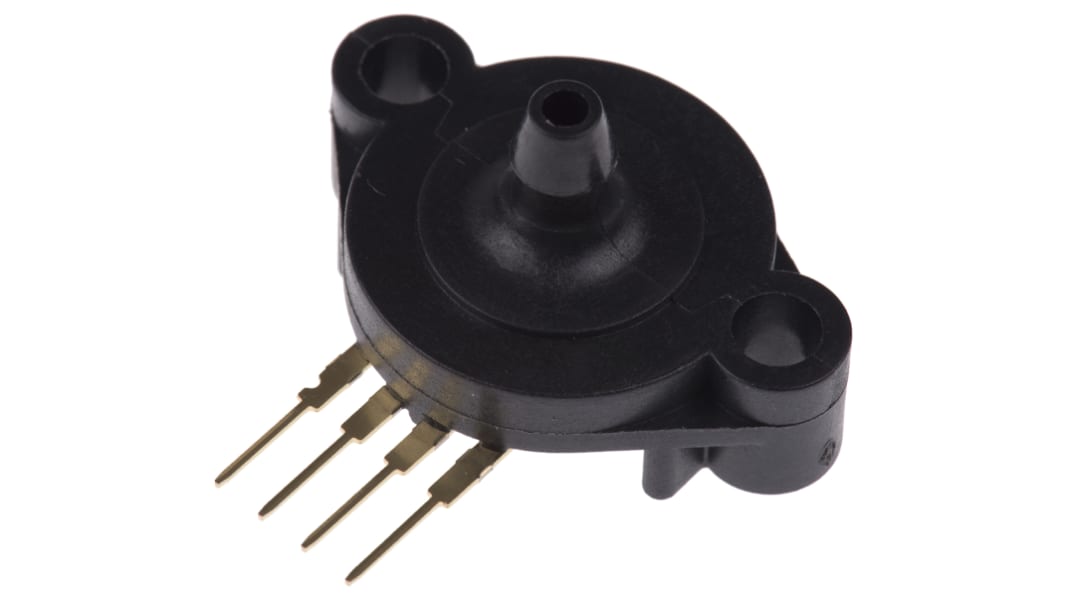

NXP MPX2102ASX Absolute Pressure SensorThrough Hole 4 Case 344F-01
- N° de stock RS:
- 821-2400
- Référence fabricant:
- MPX2102ASX
- Fabricant:
- NXP
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
15,42 €
(TVA exclue)
18,66 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 892 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 15,42 € |
| 5 - 9 | 15,00 € |
| 10 - 24 | 14,60 € |
| 25 - 49 | 14,23 € |
| 50 + | 13,88 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 821-2400
- Référence fabricant:
- MPX2102ASX
- Fabricant:
- NXP
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | NXP | |
| Product Type | Absolute Pressure Sensor | |
| Sensor Type | Absolute Pressure Sensor | |
| Maximum Overload Pressure | 400kPa | |
| Typical Sensitivity | 0.4mV/kPa | |
| Mount Type | Through Hole | |
| Package Type | Case 344F-01 | |
| Pin Count | 4 | |
| Minimum Supply Voltage | 10V | |
| Maximum Operating Pressure | 100 kPa | |
| Maximum Supply Voltage | 16V | |
| Port Type | Single Axial Barbed | |
| Maximum Operating Temperature | 125°C | |
| Maximum Output Voltage | 0.04V | |
| Height | 19.3mm | |
| Length | 28.45mm | |
| Standards/Approvals | No | |
| Series | MPX2102ASX | |
| Minimum Operating Pressure | 20kPa | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -40°C | |
| Minimum Output Voltage | -2mV | |
| Sélectionner tout | ||
|---|---|---|
Marque NXP | ||
Product Type Absolute Pressure Sensor | ||
Sensor Type Absolute Pressure Sensor | ||
Maximum Overload Pressure 400kPa | ||
Typical Sensitivity 0.4mV/kPa | ||
Mount Type Through Hole | ||
Package Type Case 344F-01 | ||
Pin Count 4 | ||
Minimum Supply Voltage 10V | ||
Maximum Operating Pressure 100 kPa | ||
Maximum Supply Voltage 16V | ||
Port Type Single Axial Barbed | ||
Maximum Operating Temperature 125°C | ||
Maximum Output Voltage 0.04V | ||
Height 19.3mm | ||
Length 28.45mm | ||
Standards/Approvals No | ||
Series MPX2102ASX | ||
Minimum Operating Pressure 20kPa | ||
Automotive Standard No | ||
Minimum Operating Temperature -40°C | ||
Minimum Output Voltage -2mV | ||
Differential/Gauge Pressure Sensors up to 115 kPa, NXP
High range pressure differential/gauge sensors measure the difference in pressure between sources when pressure is applied to both sides of the sensor (differential) and atmospheric pressure (gauged).
Pressure Sensors, NXP
