Nabic Valve Safety Products 5bar Pressure Relief Valve With Female BSP 1 in BSP Female Connection and a BSP 1 Exhaust

N° de stock RS:: 389-1506
Référence fabricant:: N-542-025 5 BAR
Fabricant:: Nabic Valve Safety Products

10 En stock pour livraison sous 1 jour(s)

Ajouté

Prix la pièce

584,22 €

(TVA exclue)

706,91 €

(TVA incluse)

Unité	Prix par unité
1 +	584,22 €

N° de stock RS:: 389-1506
Référence fabricant:: N-542-025 5 BAR
Fabricant:: Nabic Valve Safety Products

Documentation technique

Législations et de normes

Statut RoHS non applicable

Pays d'origine :: GB

Détails du produit

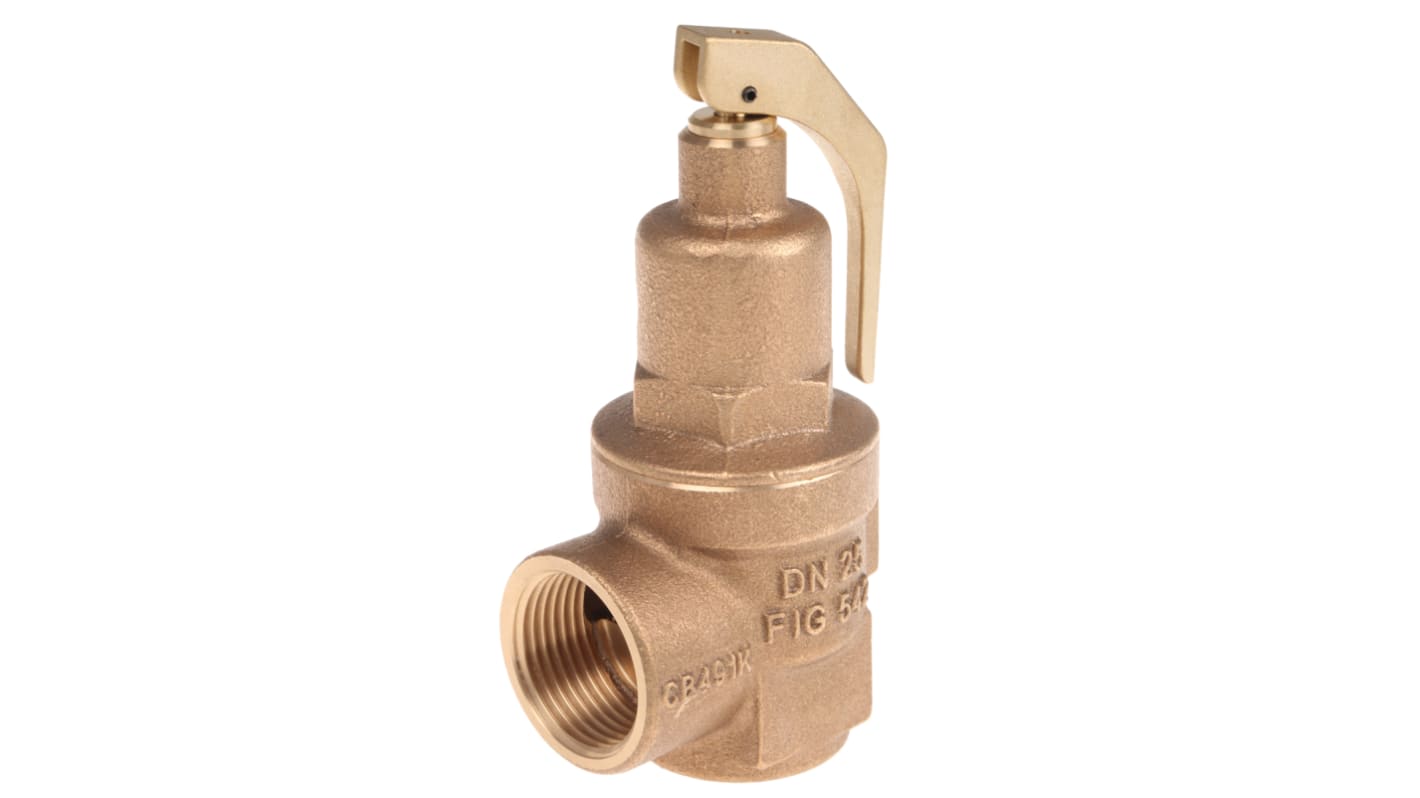

NABIC Pressure Relief Valve

The NABIC 5bar 1in BSP female pressure relief valve is designed for the protection of hot water boilers. This valve has gunmetal construction with diaphragm-protected working parts and has PTFE to metal seating. Its wide range of applications makes it a general-purpose safety valve. It is suitable for hot water, steam and air.

Features and Benefits

High degree of seat tightness
Safe manual testing
Easy inspection and cleaning
Pressure setting locked and sealed
Body material is bronze
Maximum operating temperature is 195°C

Certifications

UKWFBS approved
WRC approved
AOTC approved
BS6759
BS21

Approvals

WRC; AOTC; UKWFBS

Spécifications

Attribut	Valeur
Connection	1 in BSP Female
Maximum Set Pressure	5bar
Maximum Temperature	+195°C
For Use With	Air, Hot Water, Steam
Exhaust Port Size	BSP 1
Lockable	Yes
Body Material	Bronze
Connection Gender	Female
Thread Size	1in
Thread Standard or Connection Type	BSP
