- N° de stock RS:
- 431-8894
- Fabricant:
- RS PRO
8 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
47,64 €
(TVA exclue)
57,64 €
(TVA incluse)
Unité | Prix par unité |
1 - 9 | 47,64 € |
10 - 19 | 42,88 € |
20 + | 37,16 € |
- N° de stock RS:
- 431-8894
- Fabricant:
- RS PRO
Documentation technique
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- IT
Détails du produit

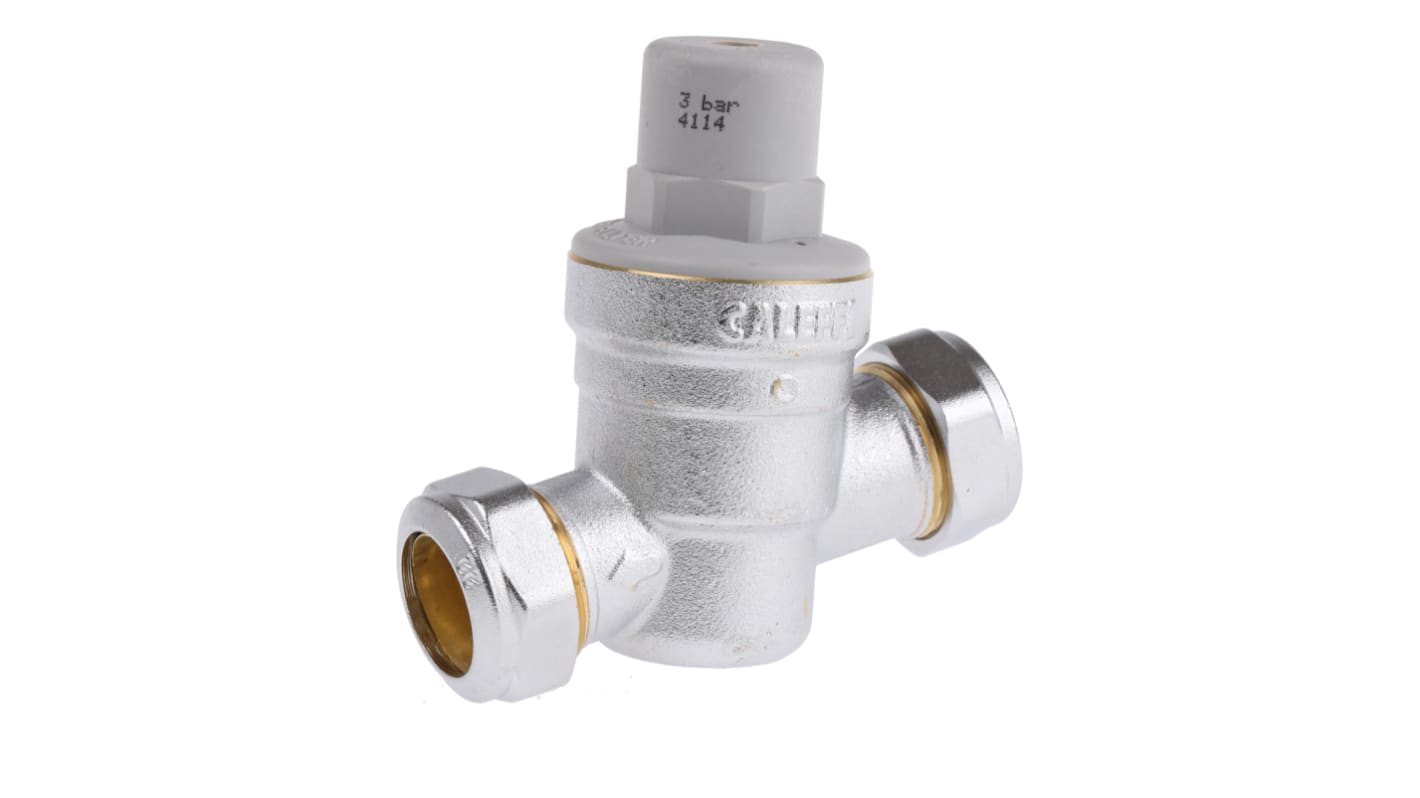

Pressure Reducing Valve - BSP Female
To avoid noise in long runs of pipework and equipment it is desirable to maintain the flow rate less than two litres per second
Suitable for use with water or compressed air
Can be installed in any position and serviced in situ
Single piece acetal resin cartridge
Preset pressure
40°C maximum operating temperature
Suitable for use with water or compressed air
Can be installed in any position and serviced in situ
Single piece acetal resin cartridge
Preset pressure
40°C maximum operating temperature
Note
To facilitate maintenance it is recommended that isolation valves are fitted before and after the pressure reducing valve.
No Gauge port
No Gauge port
Spécifications
Attribut | Valeur |
---|---|
Connection | 22 mm Compression |
Minimum Outlet Pressure | 1bar |
Maximum Outlet Pressure | 6bar |
Body Material | Chrome Plated Brass |
Maximum Flow Rate | 2L/s |
Connection Size | 22mm |
Thread Standard or Connection Type | Compression |
Outlet Pressure Range | 1 → 6bar |
