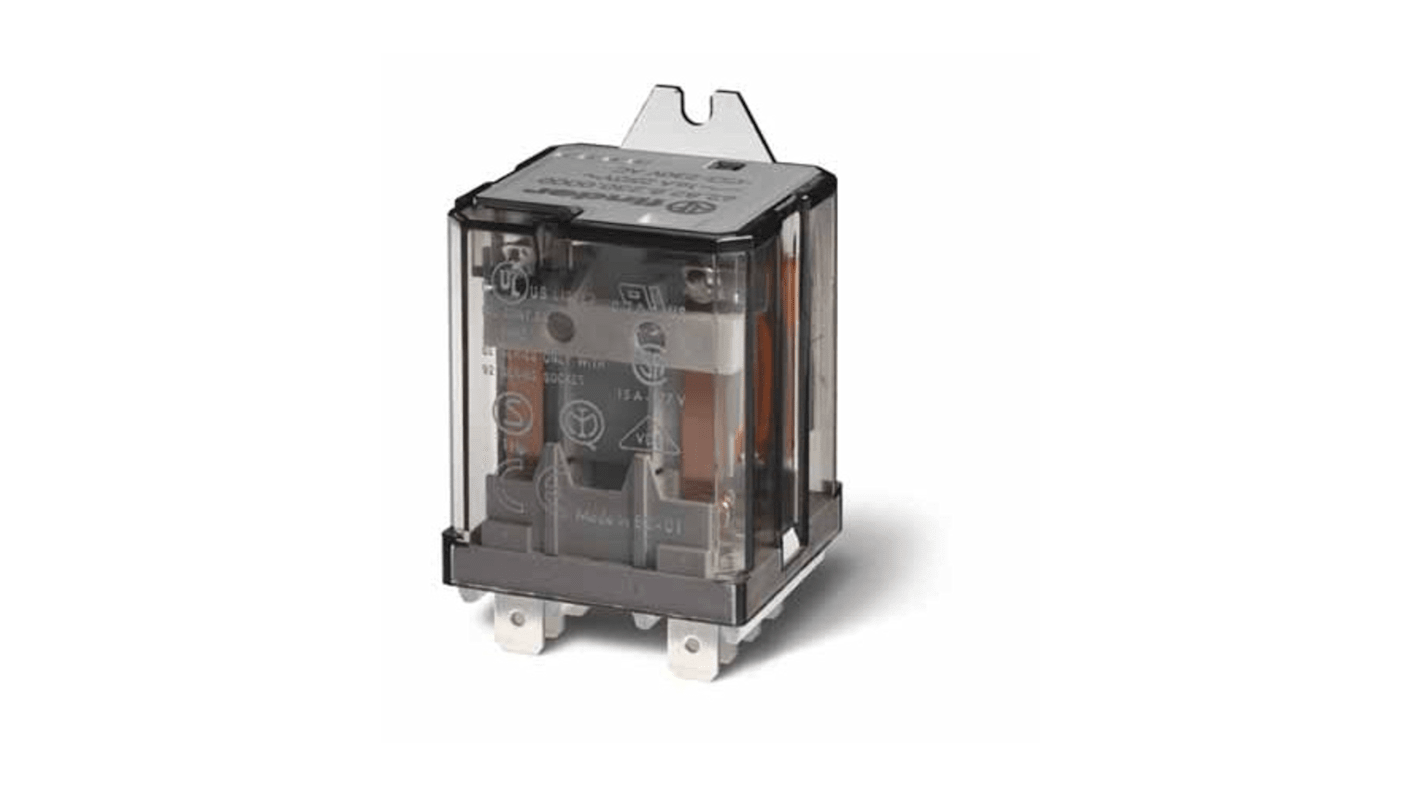

Name: Finder Flange Relay, 380V ac Coil, 16A Switching Current, 3PDT
Brand: Finder
SKU: 248-2607
Price: 24.61 EUR
Availability: InStock

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Finder
	Coil Voltage	380V ac
	Product Type	Relay
	Contact Configuration	3PDT
	Mount Type	Flange
	Series	62
	Terminal Type	Screw
	Switching Current	16A
	Switching AC Voltage	250V ac
	Minimum Operating Temperature	-40°C
	Coil Resistance	14.7kΩ
	Maximum Operating Temperature	70°C
	Length	38.2mm
	Width	35.8mm
	Standards/Approvals	CE, EAC
	Height	68mm
	Coil Power	2.2VA
	Contact Material	Silver Tin Oxide

	Sélectionner tout
	Marque Finder
	Coil Voltage 380V ac
	Product Type Relay
	Contact Configuration 3PDT
	Mount Type Flange
	Series 62
	Terminal Type Screw
	Switching Current 16A
	Switching AC Voltage 250V ac
	Minimum Operating Temperature -40°C
	Coil Resistance 14.7kΩ
	Maximum Operating Temperature 70°C
	Length 38.2mm
	Width 35.8mm
	Standards/Approvals CE, EAC
	Height 68mm
	Coil Power 2.2VA
	Contact Material Silver Tin Oxide

Datasheet - 628383804600

Pays d'origine :: IT

Finder Series 62 Power Relay, 3PDT Contact Configuration, 380V AC Coil Voltage - 628383804600

This power relay offers reliable switching capabilities for various industrial applications. Designed for a coil voltage of 380V AC, this relay features a robust flange mount design suitable for seamless integration into control and management systems. With a maximum switching current of 16A, it effectively handles substantial electrical loads.

Features & Benefits

• Maximum switching voltage of 400V AC enables high voltage requirements

• Equipped with AgSnO2 contact material for enhanced durability

• Rated for 100,000 cycles, ensuring long-lasting performance

• Reinforced insulation meets EN 60335-1 standards for safety

• Designed for ambient temperatures ranging from -40 to +70°C

• Compact design allows easy installation in control panels

Applications

• Used for road and tunnel lighting control

• Ideal for industrial furnaces and oven operations

• Suitable for burner and boiler management systems

• Essential for controlling industrial motors and mechanisms

• Suitable for integration in circuit breakers and switches

What is the significance of the high switching current rating?

The high switching current rating of 16A allows the relay to control larger loads, making it suitable for applications that require significant power handling, such as industrial machinery and heating systems.

How does reinforced insulation improve safety in use?

Reinforced insulation provides a robust barrier between the coil and contact sets, minimising the risk of arcing and ensuring compliance with safety standards, which is essential for protecting both equipment and users.

What types of environments can it operate in?

This relay can function efficiently in extreme conditions, operating within a temperature range of -40 to +70°C, making it ideal for harsh industrial settings where temperature fluctuations are common.

Can the relay accommodate different mounting options?

Yes, it features a flange mount design that allows for straightforward installation across various control panels, making it adaptable for different setups and configurations.
