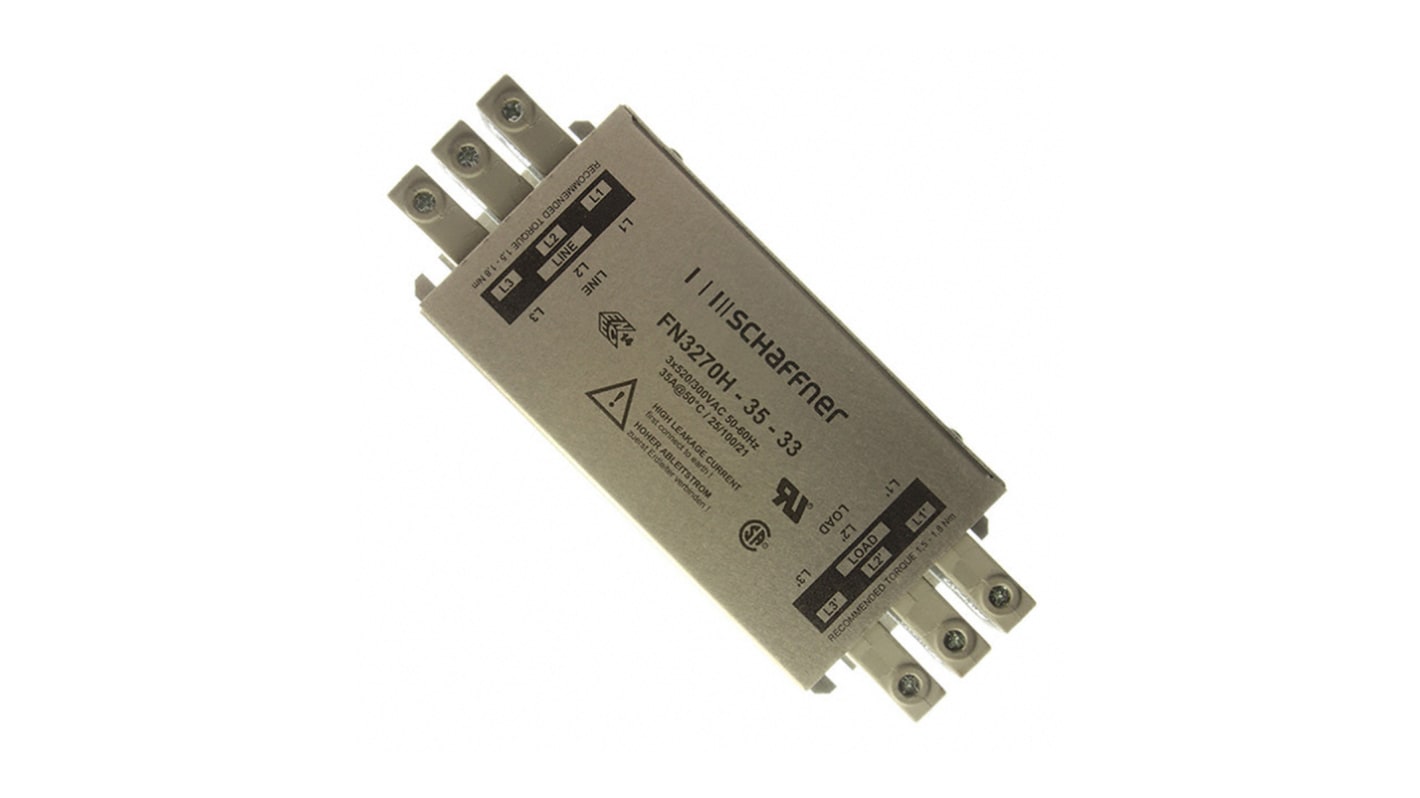

Schaffner, FN3270 35A 520/300 V ac 60Hz, Chassis Mount EMC Filter, Terminal Block 3 Phase

Voir la catégorie
Informations sur le stock actuellement non accessibles
N° de stock RS:
754-6086
Numéro d'article Distrelec:
304-02-093
Référence fabricant:
FN3270H-35-33
Fabricant:
Schaffner
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Schaffner

Maximum Current Rating

35A

Maximum Voltage Rating

520/300 V ac

Mounting Type

Chassis Mount

Termination Style

Terminal Block

Number of Phases

3

Number of Stages

Single Stage

Series

FN3270

Operating Frequency

60Hz

Length

130mm

Depth

70mm

Height

68mm

Dimensions

130 x 70 x 68mm

Minimum Operating Temperature

-25°C

Leakage Current

29.4 mA

Maximum Operating Temperature

+100°C

Power Loss

6.8W

Pays d'origine :
TH

FN3270 Series


Schaffner FN 3270 series 3-phase filters are an extremely compact and lightweight design requiring minimum mounting space in installations and cabinets. Installation is quick and simple – allowing for ease of access when fitting with automatic or with hand tools. Typical applications could be variable speed electrical power drive systems, motor drives for industry, frequency inverters and servo motors.

Compact design
Easy installation
Protective plastic covers optionally available for unsurpassed safety
