Références fabricant

Roxburgh EMC, PMF10 10A 250 V ac 60Hz, Freestanding RFI Filter, Connector, Single Phase

N° de stock RS:: 672-7023
Numéro d'article Distrelec:: 304-08-659
Référence fabricant:: PMF10
Fabricant:: Roxburgh EMC

Roxburgh EMC, PMF10 10A 250 V ac 60Hz, Freestanding RFI Filter, Connector, Single Phase

Offre groupée disponible

Sous-total (1 unité)*

84,59 €

(TVA exclue)

102,35 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 75,00 €

En stock

Plus 12 unité(s) expédiée(s) à partir du 15 décembre 2025
Plus 4 unité(s) expédiée(s) à partir du 15 décembre 2025

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 - 4	84,59 €
5 - 9	78,67 €
10 - 24	73,60 €
25 +	69,36 €

*Prix donné à titre indicatif

N° de stock RS:: 672-7023
Numéro d'article Distrelec:: 304-08-659
Référence fabricant:: PMF10
Fabricant:: Roxburgh EMC

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Roxburgh EMC
	Maximum Current Rating	10A
	Maximum Voltage Rating	250 V ac
	Mounting Type	Freestanding
	Termination Style	Connector
	Number of Phases	1
	Series	PMF10
	Operating Frequency	60Hz
	Length	112mm
	Depth	62mm
	Height	31mm
	Dimensions	112 x 62 x 31mm
	Minimum Operating Temperature	-25°C
	Leakage Current	0.35 mA
	Maximum Operating Temperature	+85°C
	Resistance	8mΩ
	Standards Met	EN 60939
	Power Loss	0.8W

	Sélectionner tout
	Marque Roxburgh EMC
	Maximum Current Rating 10A
	Maximum Voltage Rating 250 V ac
	Mounting Type Freestanding
	Termination Style Connector
	Number of Phases 1
	Series PMF10
	Operating Frequency 60Hz
	Length 112mm
	Depth 62mm
	Height 31mm
	Dimensions 112 x 62 x 31mm
	Minimum Operating Temperature -25°C
	Leakage Current 0.35 mA
	Maximum Operating Temperature +85°C
	Resistance 8mΩ
	Standards Met EN 60939
	Power Loss 0.8W

Datasheet - PMF10

Pays d'origine :: GB

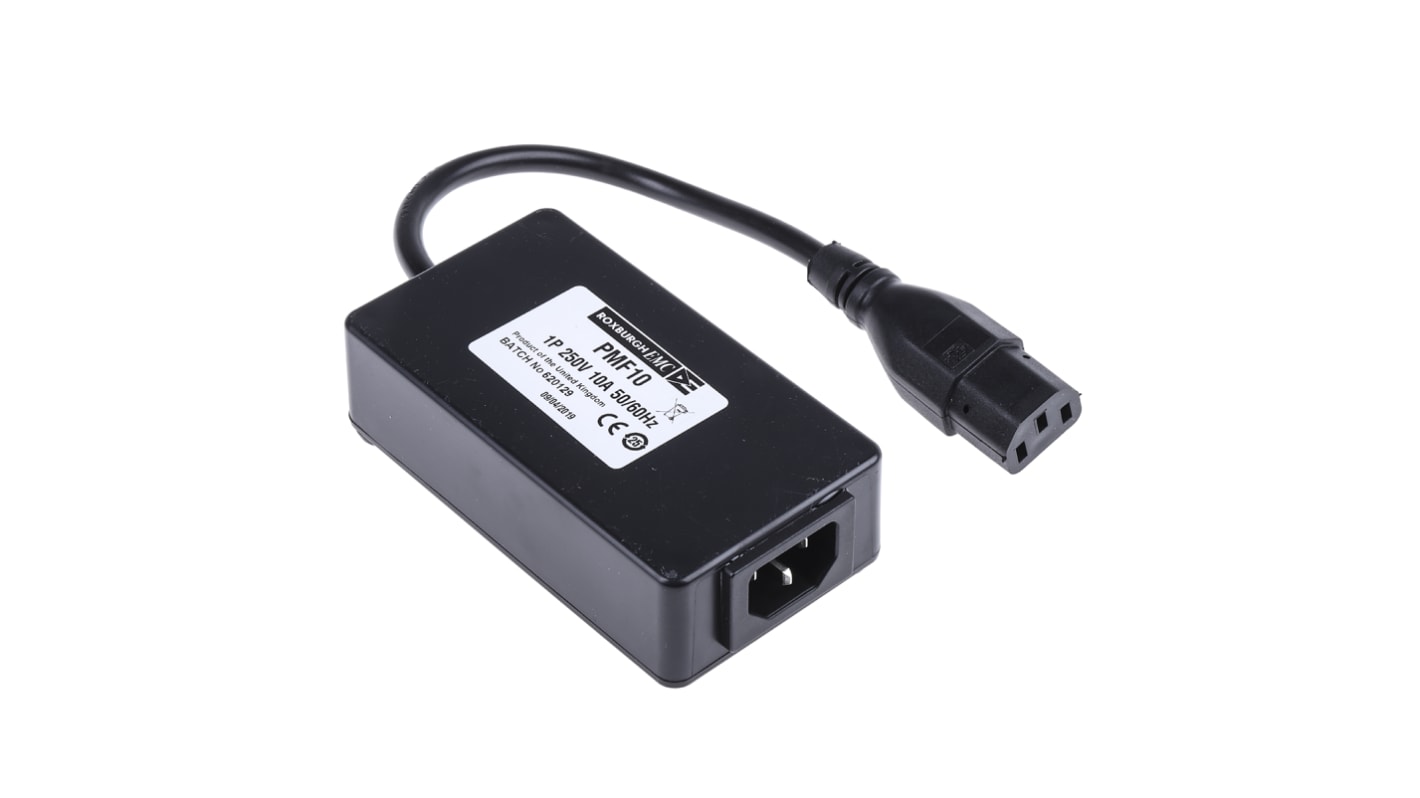

PMF10 Free Standing IEC In Line Filter - High Performance 10Amp

From Roxburgh EMC, this portable mains filter is equipped with a C14 input and C13 connecting lead, with 220mm wire.

10A free standing IEC320 style high performance filter network
Includes an earth line choke, and across the line VDR
Works along side electrical equipment where space is limited
For use with products which may be subject to high levels of mains borne interference and voltage spikes

Standards

BS EN 60950 EN60320 IEC320

Inlet Plugs with Filters

IEC Inlet plugs with integral mains filter. Designed to filter mains borne interference where capacitors alone may prove inadequate.Connection by 250 ( 1/4 in) receptacles. (For insulating boots see typically RS stock no. 526-0724).,Voltage 250Vac max. Operating frequency 50/60Hz.

Roxburgh EMC, PMF10 10A 250 V ac 60Hz, Freestanding RFI Filter, Connector, Single Phase

Frais de livraison offerts pour toute commande de plus de 75,00 €

PMF10 Free Standing IEC In Line Filter - High Performance 10Amp

10A free standing IEC320 style high performance filter networkIncludes an earth line choke, and across the line VDRWorks along side electrical equipment where space is limitedFor use with products which may be subject to high levels of mains borne interference and voltage spikes

Standards

Liens connexes

10A free standing IEC320 style high performance filter network
Includes an earth line choke, and across the line VDR
Works along side electrical equipment where space is limited
For use with products which may be subject to high levels of mains borne interference and voltage spikes
