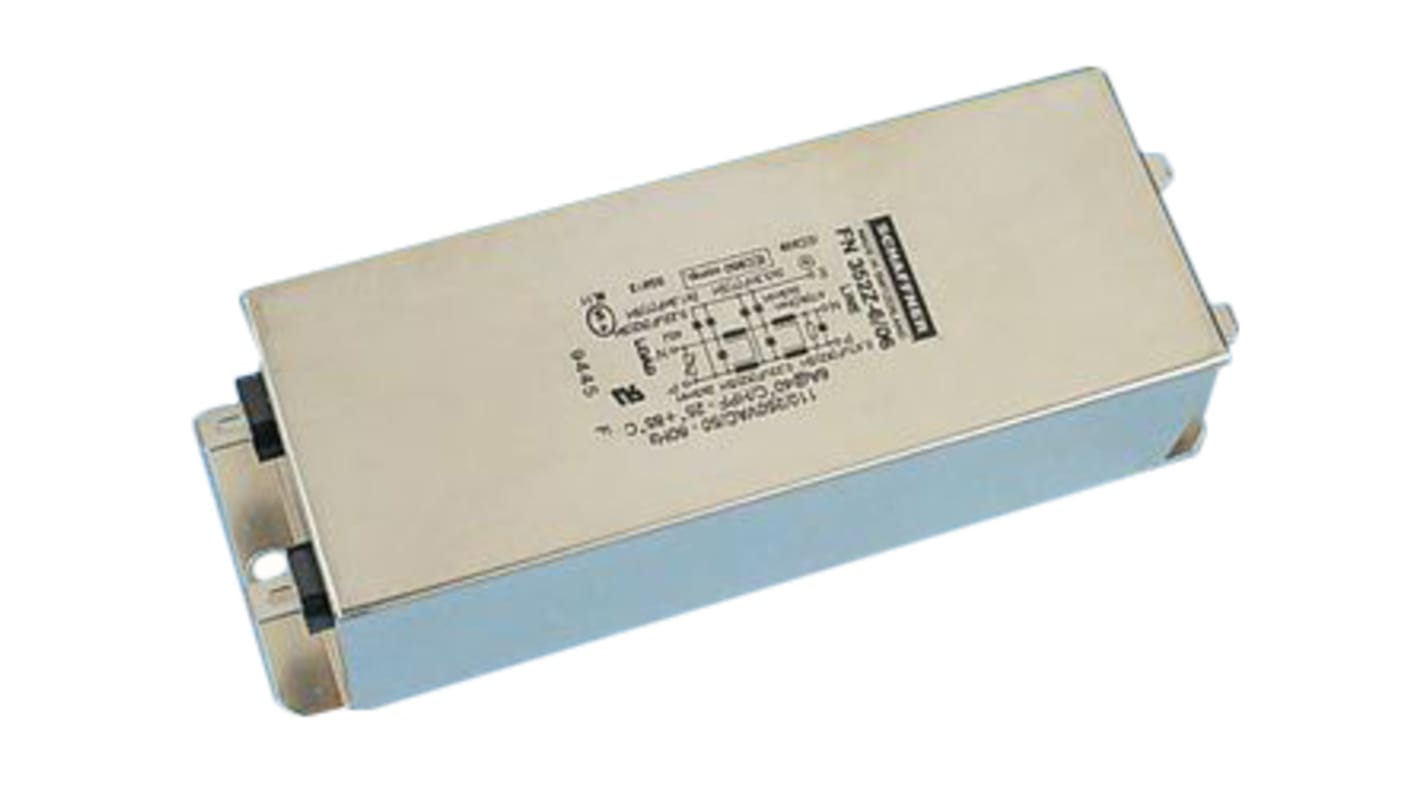

Schaffner, FN 352 Z 6A 250 V ac 400Hz, Chassis Mount EMI Filter, Tab, Single Phase
- N° de stock RS:
- 167-6816
- Numéro d'article Distrelec:
- 303-96-956
- Référence fabricant:
- FN352Z-6-06
- Fabricant:
- Schaffner
Offre groupée disponible
Sous-total (1 unité)*
148,48 €
(TVA exclue)
179,66 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 14 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 148,48 € |
| 5 - 9 | 138,07 € |
| 10 - 24 | 132,75 € |
| 25 + | 129,17 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 167-6816
- Numéro d'article Distrelec:
- 303-96-956
- Référence fabricant:
- FN352Z-6-06
- Fabricant:
- Schaffner
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schaffner | |
| Maximum Current Rating | 6A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Tab | |
| Number of Phases | 1 | |
| Series | FN 352 Z | |
| Number of Stages | Three Stage | |
| Operating Frequency | 400Hz | |
| Length | 51mm | |
| Depth | 152mm | |
| Capacitance | 15 nF, 220 nF, 470nF | |
| Height | 45mm | |
| Dimensions | 51 x 152 x 45mm | |
| Inductance | 3 x 2 mH | |
| Leakage Current | 0.42 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 470kΩ | |
| Sélectionner tout | ||
|---|---|---|
Marque Schaffner | ||
Maximum Current Rating 6A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Tab | ||
Number of Phases 1 | ||
Series FN 352 Z | ||
Number of Stages Three Stage | ||
Operating Frequency 400Hz | ||
Length 51mm | ||
Depth 152mm | ||
Capacitance 15 nF, 220 nF, 470nF | ||
Height 45mm | ||
Dimensions 51 x 152 x 45mm | ||
Inductance 3 x 2 mH | ||
Leakage Current 0.42 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 470kΩ | ||
FN352Z brings exceptional conducted attenuation performance, based on multi-stage design and chokes with high saturation resistance and excellent thermal behaviour. Additional high surge pulse voltage protection up to 2 kA is integrated to protect sensitive equipment.
Can be used in a wide range of applications such as facility management, industrial, telecommunications, data processing and electrical & electronic equipment.
Can be used in a wide range of applications such as facility management, industrial, telecommunications, data processing and electrical & electronic equipment.
Rated current 6 A
Surge pulse protection up to 2 kA
Surge pulse protection up to 2 kA
