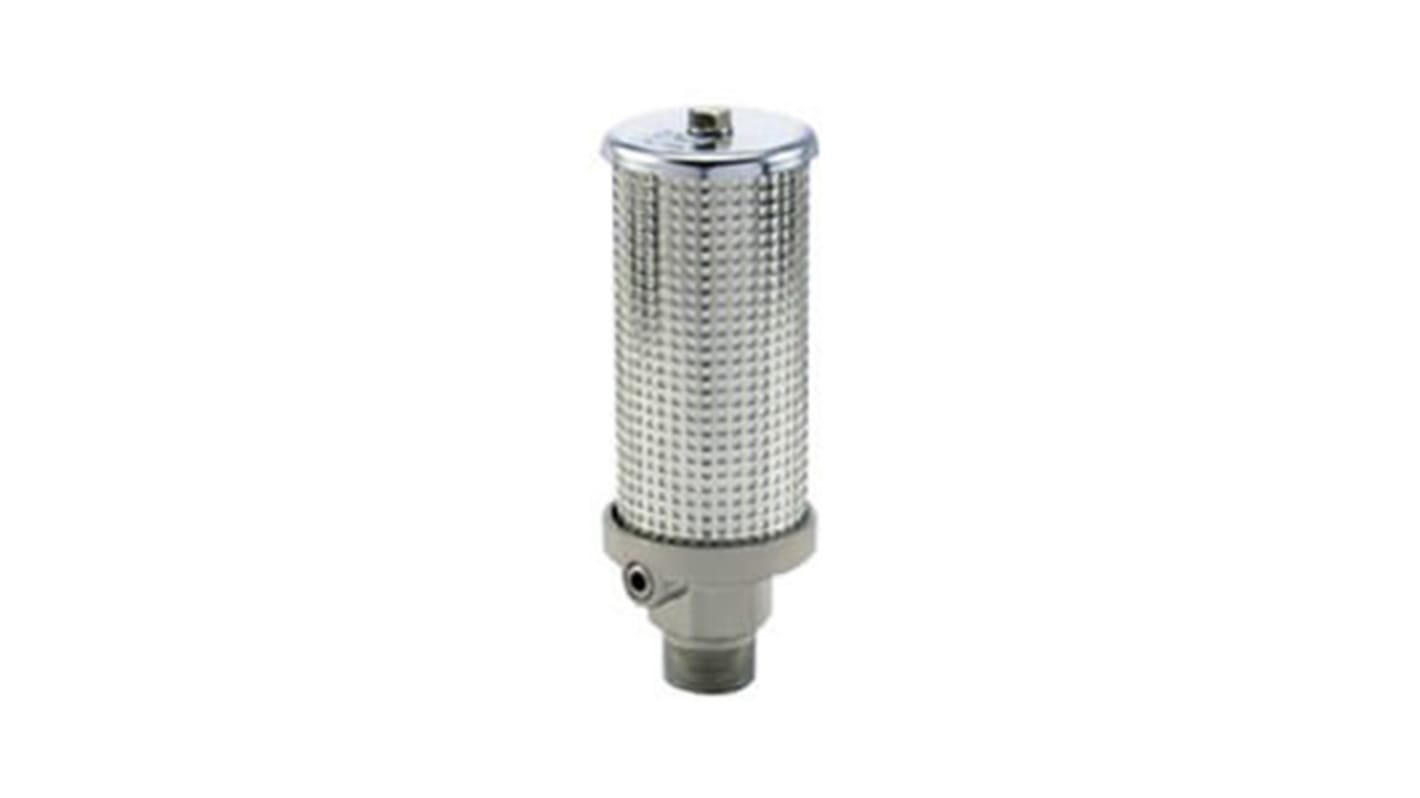

SMC VCHN Stainless Steel Pneumatic Silencer 50 bar Threaded R
- N° de stock RS:
- 233-7331
- Référence fabricant:
- VCHN4-14
- Fabricant:
- SMC
Sous-total (1 unité)*
151,40 €
(TVA exclue)
183,19 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 8 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 151,40 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 233-7331
- Référence fabricant:
- VCHN4-14
- Fabricant:
- SMC
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SMC | |
| Product Type | Pneumatic Silencer | |
| Connection Size | 1 1/2 in R | |
| Material | Stainless Steel | |
| Series | VCHN | |
| Thread Standard | R | |
| Connection Type | Threaded | |
| Noise Reduction | 35dB | |
| Overall Length | 240mm | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Pressure | 50 bar | |
| Maximum Operating Temperature | 80°C | |
| Silencer Diameter | 74 mm | |
| Thread Gender | Male | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque SMC | ||
Product Type Pneumatic Silencer | ||
Connection Size 1 1/2 in R | ||
Material Stainless Steel | ||
Series VCHN | ||
Thread Standard R | ||
Connection Type Threaded | ||
Noise Reduction 35dB | ||
Overall Length 240mm | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Pressure 50 bar | ||
Maximum Operating Temperature 80°C | ||
Silencer Diameter 74 mm | ||
Thread Gender Male | ||
Standards/Approvals RoHS | ||
SMC VCHN Series Pneumatic Silencer, 35dB Noise Reduction, 1 1/2 inch R Connection Size - VCHN4-14
This pneumatic silencer reduces exhaust noise and protects downstream components in compressed-air systems. Constructed from corrosion-resistant stainless steel, it is designed for threaded installation into R-standard ports and performs across typical workshop temperatures. The unit is suited to industrial environments where controlled venting and noise attenuation are required without compromising flow integrity.
Features and Benefits:
• Reduces acoustic emissions by 35 dB for quieter operation
• Withstands up to 50 bar allowing high-pressure system use
• Operates between 5°C and 80°C across duty cycles
• Male R-threaded connection ensures secure threaded fit
• Thread size 1 1/2 in R permits robust pipework integration
• RoHS compliance supports safe material selection
• Withstands up to 50 bar allowing high-pressure system use
• Operates between 5°C and 80°C across duty cycles
• Male R-threaded connection ensures secure threaded fit
• Thread size 1 1/2 in R permits robust pipework integration
• RoHS compliance supports safe material selection
Applications
• Suitable for compressor exhaust lines requiring noise control
• Ideal for pneumatic tool exhaust in manufacturing plants
• Used with high-pressure actuators needing vent silencing
• Can be used for laboratory test rigs with threaded ports
• Practical for maintenance rigs where corrosion resistance matters
• Ideal for pneumatic tool exhaust in manufacturing plants
• Used with high-pressure actuators needing vent silencing
• Can be used for laboratory test rigs with threaded ports
• Practical for maintenance rigs where corrosion resistance matters
What connection type does it require for installation?
It fits into a threaded R port using a male thread and mates with standard R female fittings.
How compact is the unit for confined installations?
The body spans 240mm overall length and has a 74mm external diameter, enabling installation in restricted runouts.
How does material selection affect longevity in harsh environments?
Stainless steel construction provides resistance to corrosive atmospheres and extends service life compared with non‑metallic alternatives.
Can the silencer cope with fluctuating system pressures?
Yes
it is rated to tolerate pressures up to 50 bar, accommodating intermittent high-pressure events without degradation.
