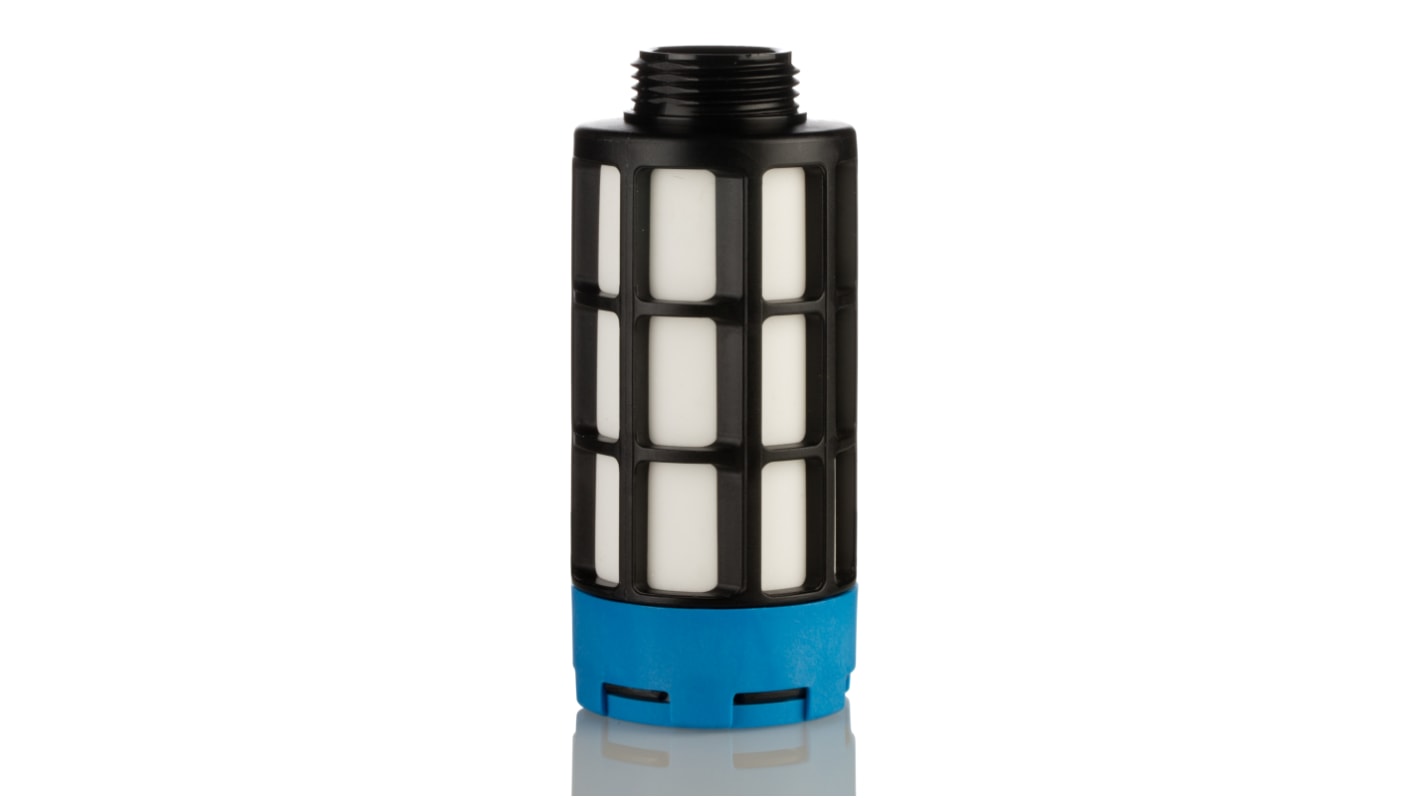

Festo U Polymer Pneumatic Silencer 10 bar Threaded G
- N° de stock RS:
- 175-4634
- Référence fabricant:
- U-1
- Fabricant:
- Festo
Sous-total (1 unité)*
43,96 €
(TVA exclue)
53,19 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 5 unité(s) prête(s) à être expédiée(s)
- Plus 12 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
- Plus 27 unité(s) expédiée(s) à partir du 16 juin 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 43,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 175-4634
- Référence fabricant:
- U-1
- Fabricant:
- Festo
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Festo | |
| Product Type | Pneumatic Silencer | |
| Connection Size | G 1 | |
| Material | Polymer | |
| Series | U | |
| Thread Standard | G | |
| Connection Type | Threaded | |
| Noise Reduction | 90dB | |
| Overall Length | 126.5mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Pressure | 10 bar | |
| Silencer Diameter | 25.4 mm | |
| Maximum Operating Temperature | 70°C | |
| Thread Gender | Male | |
| Standards/Approvals | ISO8573-1:2010, RoHS Compliant | |
| Sélectionner tout | ||
|---|---|---|
Marque Festo | ||
Product Type Pneumatic Silencer | ||
Connection Size G 1 | ||
Material Polymer | ||
Series U | ||
Thread Standard G | ||
Connection Type Threaded | ||
Noise Reduction 90dB | ||
Overall Length 126.5mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 10 bar | ||
Silencer Diameter 25.4 mm | ||
Maximum Operating Temperature 70°C | ||
Thread Gender Male | ||
Standards/Approvals ISO8573-1:2010, RoHS Compliant | ||
Statut RoHS : Exempté
- Pays d'origine :
- CN
Festo Pneumatic Silencer, 84dB Sound Pressure Level, G1 Connection Port - U-1
Reduce the exhaust sound of compressed air with this pneumatic silencer from Festo. It cuts down on noise pollution in your workplace by keeping exhaust volume levels below 84dB. The component's threaded connection means installation is easy, as it simply screws onto your equipment without needing tools. A polymer body makes the device robust, durable and able to withstand wear and tear from frequent use. The polymer material is also chemical-resistant, so contact with oils and grease won't impact performance.
• Copper-free for a reduced environmental impact
• Light weight of 140g, so puts minimal strain on a compressed air unit
• Wide operating temperature range between -10°C and +70°C for use in harsh environments
• Recyclable PE insert for a reduced carbon footprint
Applications
• Industrial automation
• Warehouses and packaging facilities
• Marine and offshore industries
How does a pneumatic silencer reduce the noise of exhaust air?
A pneumatic silencer reduces the noise of exhaust air by diffusing it over a larger surface area. This cuts down on air turbulence, which in turn lessens the sound of the exhausted air.
Where should I install this silencer?
You install this silencer directly onto the exhaust port of a pneumatic cylinder or valve.
