Festo UC Polyethylene Pneumatic Silencer 10 bar Threaded G
- N° de stock RS:
- 125-9908
- Numéro d'article Distrelec:
- 301-69-717
- Référence fabricant:
- UC-1/8
- Fabricant:
- Festo
Sous-total (1 unité)*
6,41 €
(TVA exclue)
7,76 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 725 unité(s) expédiée(s) à partir du 12 octobre 2026
- Plus 174 unité(s) expédiée(s) à partir du 12 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 6,41 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 125-9908
- Numéro d'article Distrelec:
- 301-69-717
- Référence fabricant:
- UC-1/8
- Fabricant:
- Festo
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Festo | |
| Product Type | Pneumatic Silencer | |
| Connection Size | 1/8 in G | |
| Material | Polyethylene | |
| Series | UC | |
| Thread Standard | G | |
| Connection Type | Threaded | |
| Noise Reduction | 59dB | |
| Overall Length | 38mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Pressure | 10 bar | |
| Maximum Operating Temperature | 70°C | |
| Thread Gender | Male | |
| Standards/Approvals | UL | |
| Model Number | 161419 | |
| Sélectionner tout | ||
|---|---|---|
Marque Festo | ||
Product Type Pneumatic Silencer | ||
Connection Size 1/8 in G | ||
Material Polyethylene | ||
Series UC | ||
Thread Standard G | ||
Connection Type Threaded | ||
Noise Reduction 59dB | ||
Overall Length 38mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature 70°C | ||
Thread Gender Male | ||
Standards/Approvals UL | ||
Model Number 161419 | ||
- Pays d'origine :
- DE

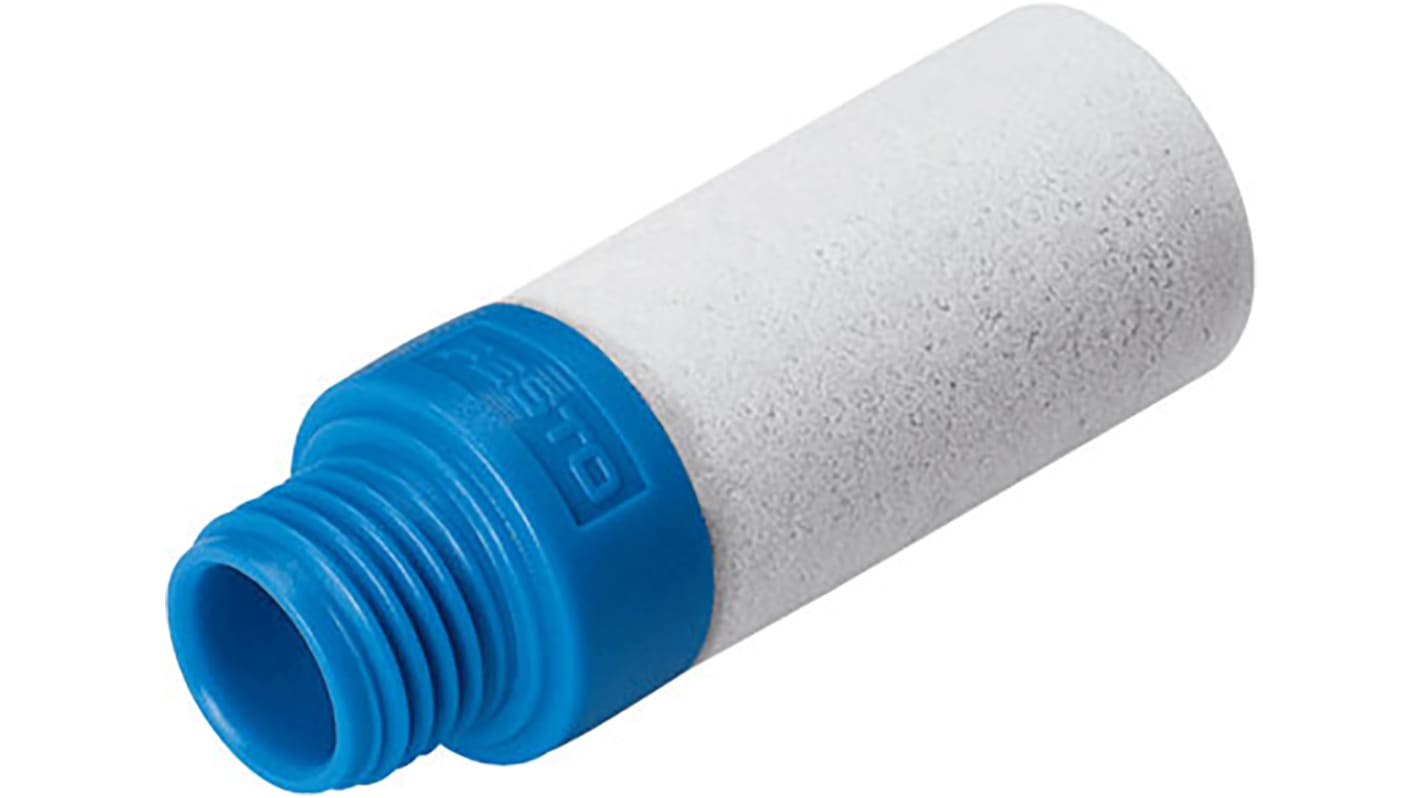

Festo Threaded Pneumatic Silencer, 10 Bar, G 1/8 Male - U Series - UC-1/8
Use this double-acting silencer from Festo to muffle pneumatic exhaust noise at the same time as filtering dirt from compressed air. The silencer keeps exhaust noise levels below 59 dB(A), which ensures operator comfort and safety. It also protects the good working function of compressed air systems by filtering air contaminants to prevent damage to pneumatic components. The silencer is made from polyethylene (PE), which is extremely strong and can withstand the demands of industrial pneumatic applications. This material also holds its shape well under high pressure.
• Operating pressure range of 0 to 10 bar
• Operating temperature range of -10°C to +70°C
• G 1/8 male threaded inlet connection
• Free from copper and polytetrafluoroethylene (PTFE) for high-pressure applications
• Can be assembled in any position
• Compatible with lubricated operation
Range Information
• The silencers in the Festo UC series are compatible with Festo CPE solenoid valves
• This range offers silencers with both threaded and push-in connectors, which are easy to use and form a secure join with pneumatic hoses
• These components are designed to be compact yet durable. This means they take up minimal space in compressed air systems while still providing reliable performance
