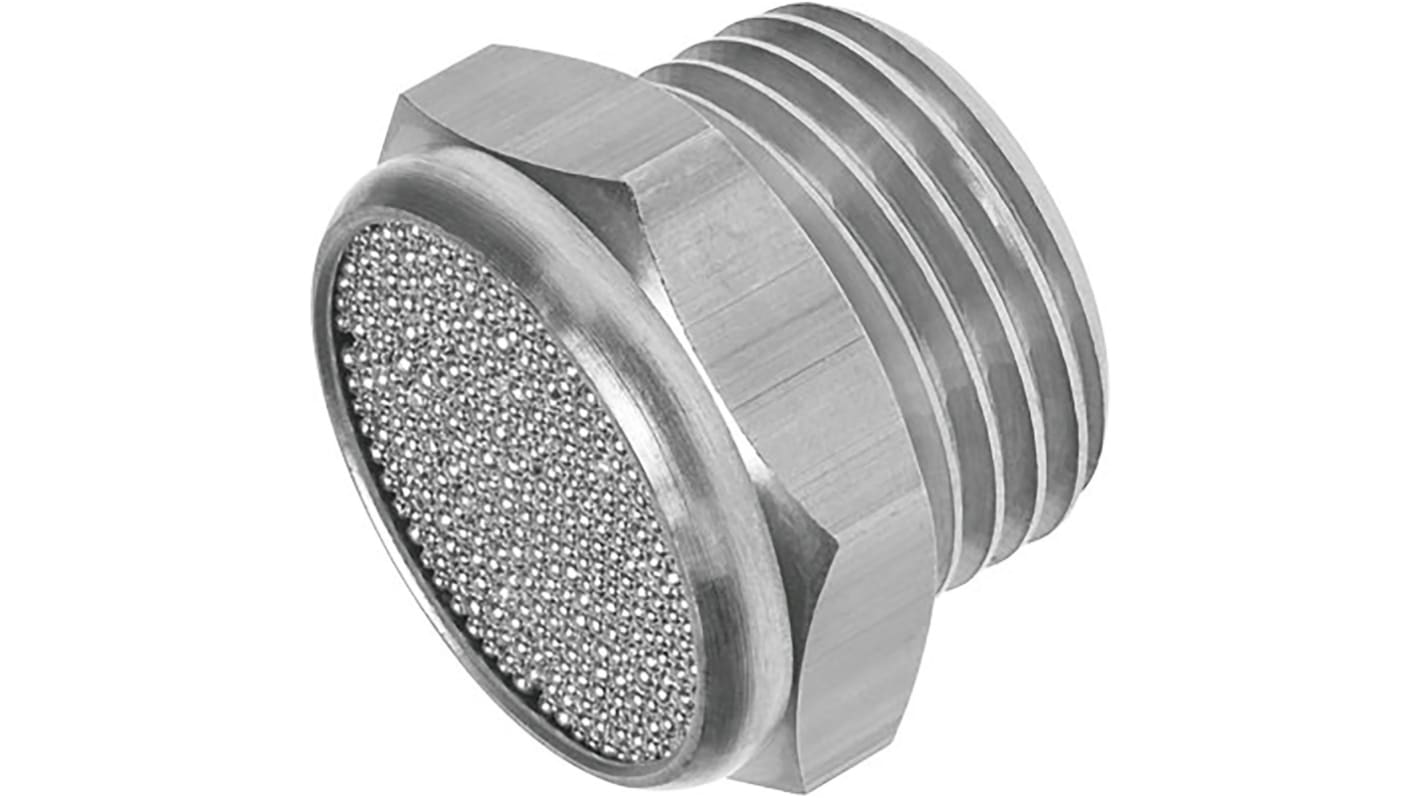

Festo AMTE-M-H Brass Pneumatic Silencer 10 bar Threaded Metric
- N° de stock RS:
- 125-9665
- Numéro d'article Distrelec:
- 304-29-479
- Référence fabricant:
- AMTE-M-H-M5
- Fabricant:
- Festo
Sous-total (1 sachet de 20 unités)*
28,60 €
(TVA exclue)
34,61 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 37 unité(s) expédiée(s) à partir du 23 novembre 2026
- Plus 21 unité(s) expédiée(s) à partir du 23 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Sachet(s) | Le Sachet | Prix par unité* |
|---|---|---|
| 1 + | 28,60 € | 1,43 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 125-9665
- Numéro d'article Distrelec:
- 304-29-479
- Référence fabricant:
- AMTE-M-H-M5
- Fabricant:
- Festo
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Festo | |
| Product Type | Pneumatic Silencer | |
| Connection Size | M5 | |
| Material | Brass | |
| Series | AMTE-M-H | |
| Connection Type | Threaded | |
| Thread Standard | Metric | |
| Noise Reduction | 71dB | |
| Overall Length | 8.7mm | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Pressure | 10 bar | |
| Silencer Diameter | 2.5 mm | |
| Maximum Operating Temperature | 80°C | |
| Thread Gender | Male | |
| Standards/Approvals | CRC1 940070 | |
| Model Number | 1206621 | |
| Sélectionner tout | ||
|---|---|---|
Marque Festo | ||
Product Type Pneumatic Silencer | ||
Connection Size M5 | ||
Material Brass | ||
Series AMTE-M-H | ||
Connection Type Threaded | ||
Thread Standard Metric | ||
Noise Reduction 71dB | ||
Overall Length 8.7mm | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 10 bar | ||
Silencer Diameter 2.5 mm | ||
Maximum Operating Temperature 80°C | ||
Thread Gender Male | ||
Standards/Approvals CRC1 940070 | ||
Model Number 1206621 | ||
- Pays d'origine :
- IT
Festo Pneumatic Silencer, 71dBA Sound Pressure Level, 1.1g Weight - AMTE-M-H-M5
Want to put a damper on noise from your exhaust port? Try this pneumatic silencer from Festo. You simply screw it directly onto your compressed air exhaust outlet for snappy, tool-free installation. As the unit's bronze insert absorbs shock, it helps to reduce the sound level of expelled air. This keeps operating noise levels safe for human hearing. The all-metal construction of the part makes it compatible with hot environments, so you can put it to the test in demanding temperatures from -40°C up to +80°C.
Features & Benefits
• Corrosion-resistant brass plug for an extended service life
• Conveniently assemble in any position to suit your setup
• Short length of 8.7mm makes it suitable for use in compact pneumatic circuits
• Applies little strain on an exhaust port, thanks to its light weight of 1.1g
Applications
• Packaging facilities
• Food and beverage production
• Automotive manufacturing
• Breweries
What's the operating pressure range of this pneumatic silencer?
Its wide operating pressure range between 0 and 10 bar makes it a practical choice for pneumatic equipment such as rotary actuators and compressed air cylinders.
Festo metal AMTE series pneumatic silencers are designed to reduce noise levels from air exhaust in pneumatic systems and pipes. Acting as a muffler which is essential for reducing sound to safe decibel levels within industrial work environments and improving user comfort. AMTE exhaust silencers have the ability to reduce noise to levels below 88dbA.
The AMTE-M-H-M5 is manufactured with a brass threaded body and bronze silencer insert which can be used in lubricated pneumatic systems.
• Bronze silencer insert
• Brass threaded plug
• Weight 1.1g
• Screw thread for simple connection
