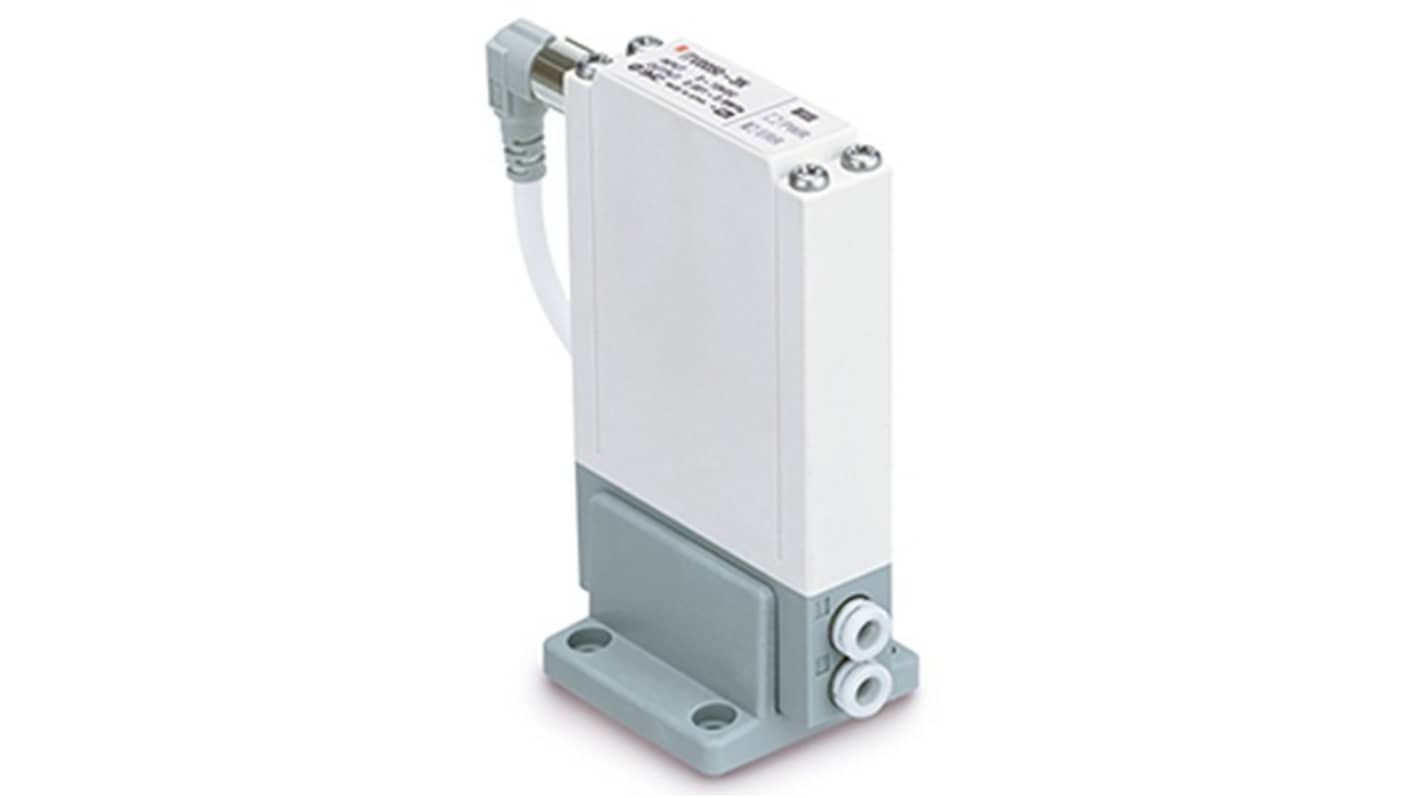

SMC 4 mm Pneumatic Regulator - 1 Mpa, ITV0050-0MN 4000 L/min ITV0000
- N° de stock RS:
- 426-329
- Référence fabricant:
- ITV0050-0MN
- Fabricant:
- SMC
Sous-total (1 unité)*
295,44 €
(TVA exclue)
357,48 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité |
|---|---|
| 1 + | 295,44 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 426-329
- Référence fabricant:
- ITV0050-0MN
- Fabricant:
- SMC
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SMC | |
| Product Type | Pneumatic Regulator | |
| Port Size | 4 mm | |
| Series | ITV0000 | |
| Overall Length | 50mm | |
| Maximum Flow Rate | 4000L/min | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Pressure Gauge Port Thread Standard | M8 | |
| Overall Width | 15mm | |
| Overall Height | 82mm | |
| Standards/Approvals | IP65, RoHS, CE/UKCA | |
| Pressure Setting Range | 0.001 to 0.9 MPa | |
| Sélectionner tout | ||
|---|---|---|
Marque SMC | ||
Product Type Pneumatic Regulator | ||
Port Size 4 mm | ||
Series ITV0000 | ||
Overall Length 50mm | ||
Maximum Flow Rate 4000L/min | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Pressure Gauge Port Thread Standard M8 | ||
Overall Width 15mm | ||
Overall Height 82mm | ||
Standards/Approvals IP65, RoHS, CE/UKCA | ||
Pressure Setting Range 0.001 to 0.9 MPa | ||
- Pays d'origine :
- JP
The SMC Electro Pneumatic Regulators control air pressure steplessly in proportion to an electric signal. They are light weight in design. The monitor output is available either as analog output or switch output. It is compact design.
IP65 equivalent rated protection
DIN rail mount design allows stations to be easily increased or decrease
RoHS compliant
