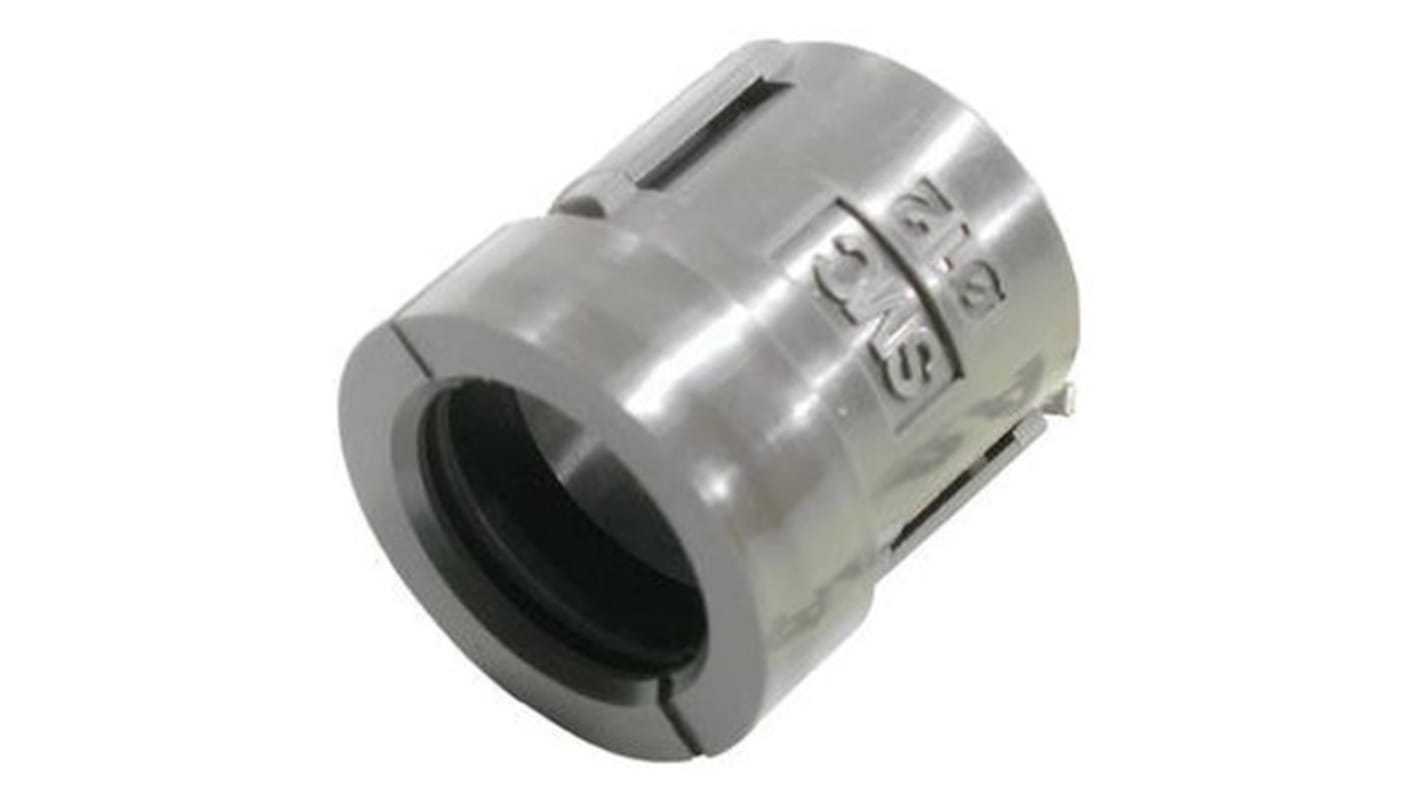

SMC JIS Spatter Cover
- N° de stock RS:
- 122-5601
- Référence fabricant:
- KR-06C
- Fabricant:
- SMC
Sous-total (1 sachet de 10 unités)*
4,80 €
(TVA exclue)
5,81 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 15 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Sachet(s) | Le Sachet | Prix par unité* |
|---|---|---|
| 1 + | 4,80 € | 0,48 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 122-5601
- Référence fabricant:
- KR-06C
- Fabricant:
- SMC
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | SMC | |
| Product Type | Spatter Cover | |
| Thread Standard | JIS | |
| Series | KR | |
| Connection Type | R Thread, Metric Fine Thread, Taper Pipe Thread | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL-94 Standard V-0, JIS B 0211 Class 2, JIS B 0203 | |
| Sélectionner tout | ||
|---|---|---|
Marque SMC | ||
Product Type Spatter Cover | ||
Thread Standard JIS | ||
Series KR | ||
Connection Type R Thread, Metric Fine Thread, Taper Pipe Thread | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL-94 Standard V-0, JIS B 0211 Class 2, JIS B 0203 | ||
- Pays d'origine :
- JP
Series KR - Spatter Cover
SMC's KR series of flame resistant, one-touch fittings are for use in environments where pneumatic piping and fixtures are open to sparks and spatter from welding equipment. SMC's flame resistant fittings are suitable for use up to a pressure of 145 psi and by allowing the body and threaded section to rotate when mounted are ideal for use in confined spaces. Spatter covers can be used to prevent against the tube being released because of intrusion or adhesion by covering by providing protective cover over the release button.
Suitable for pressure up to 145 psi
Supplied with sealant - no need for tape
Accepts flame resistant soft nylon tubing
Suitable for use in confined spaces
Low release force minimises damage to tubing when released
