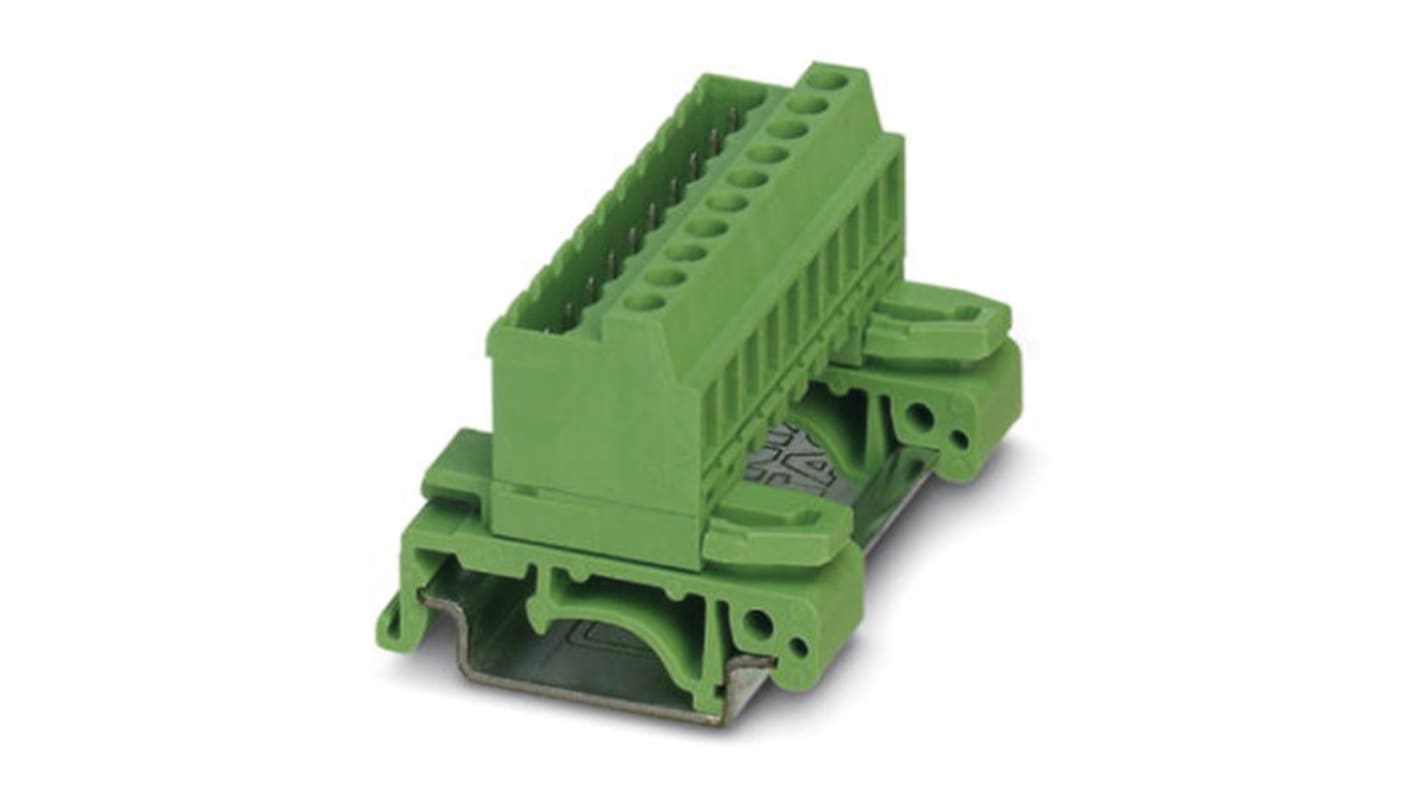

Phoenix Contact MSTBT 2.5/8-ST-5.08 Series Pluggable Terminal Block, 8-Contact, 5.08 mm Pitch, 1 Row, 1781043
- N° de stock RS:
- 882-5438
- Référence fabricant:
- 1781043
- Fabricant:
- Phoenix Contact
Sous-total (1 boîte de 50 unités)*
508,05 €
(TVA exclue)
614,75 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | La Boite* |
|---|---|---|
| 50 + | 10,161 € | 508,05 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 882-5438
- Référence fabricant:
- 1781043
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 24A | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Connector Gender | Female | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Horizontal | |
| Wire Connection Method | Screw | |
| Colour | Green | |
| Voltage | 320V | |
| Series | MSTBT 2.5/8-ST-5.08 | |
| Depth | 15mm | |
| Width | 40.64mm | |
| Standards/Approvals | No | |
| Length | 18.2mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 24A | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Connector Gender Female | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Horizontal | ||
Wire Connection Method Screw | ||
Colour Green | ||
Voltage 320V | ||
Series MSTBT 2.5/8-ST-5.08 | ||
Depth 15mm | ||
Width 40.64mm | ||
Standards/Approvals No | ||
Length 18.2mm | ||
- Pays d'origine :
- DE
Phoenix Contact Pluggable Terminal Block, 12A Current Rating, M3 Screw Thread - MSTBT 2,5/ 8-ST-5,08 - 1781043
Need to make connections between wires on your PCB? Use this pluggable terminal block from Phoenix Contact. Each of its eight contacts lets you plug in a single wire and secure it by screwing for a flexible but reliable setup in your electrical system. Thanks to compact dimensions of 18.2 (L) x 40.64 (W) x 15mm (H), this female unit's a space-saving choice.
It can withstand up to 4kV in the event of unplanned voltage surges, so you can rely on the block to help prevent harm to personnel and damage to equipment. Polyamide insulation adds an extra layer of electrical safety. As indicated by its broad operating temperature range between -40°C and +100°C, this is a suitable option for use in demanding industrial conditions.
Features & Benefits
• Screw clamp method lets you terminate various wire sizes for versatility
• Supplied in packs of 50 to ensure you have plenty on hand for multiple jobs
• Light weight of 13.38g for easy handling and strain-free installation
• Current rating of 12A, making this an energy-efficient component
• M3 screw thread to provide versatility
