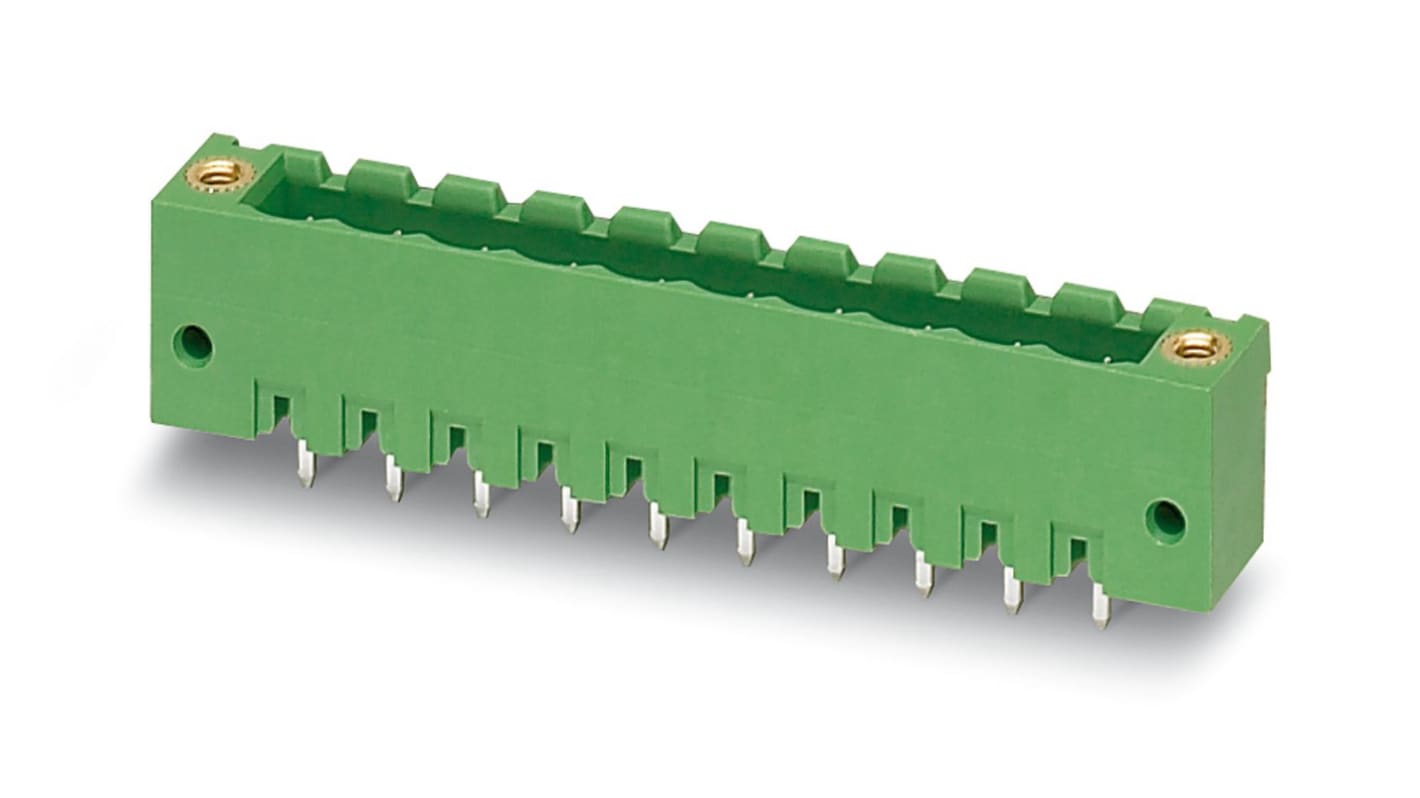

Phoenix Contact MSTBV 2.5/19-GF Series Straight Pluggable Terminal Block, 19 Contact(s), 5 mm Pitch, 1 Row
- N° de stock RS:
- 882-5052
- Référence fabricant:
- 1777057
- Fabricant:
- Phoenix Contact
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
- N° de stock RS:
- 882-5052
- Référence fabricant:
- 1777057
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Series | MSTBV 2.5/19-GF | |
| Current | 12A | |
| Pitch | 5mm | |
| Number of Contacts | 19 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Standards/Approvals | EU REACH SVHC, CSA, EU RoHS, cULus, CHINA RoHS | |
| Voltage | 400V | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Series MSTBV 2.5/19-GF | ||
Current 12A | ||
Pitch 5mm | ||
Number of Contacts 19 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 1 | ||
Orientation Straight | ||
Standards/Approvals EU REACH SVHC, CSA, EU RoHS, cULus, CHINA RoHS | ||
Voltage 400V | ||
- Pays d'origine :
- DE
PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, Number of potentials: 19, Number of rows: 1, Number of positions per row: 19, number of connections: 19, product range: MSTBV 2,5/..-GF, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, Stecksystem: CLASSIC COMBICON, Locking: Screw locking, type of packaging: packed in cardboard
