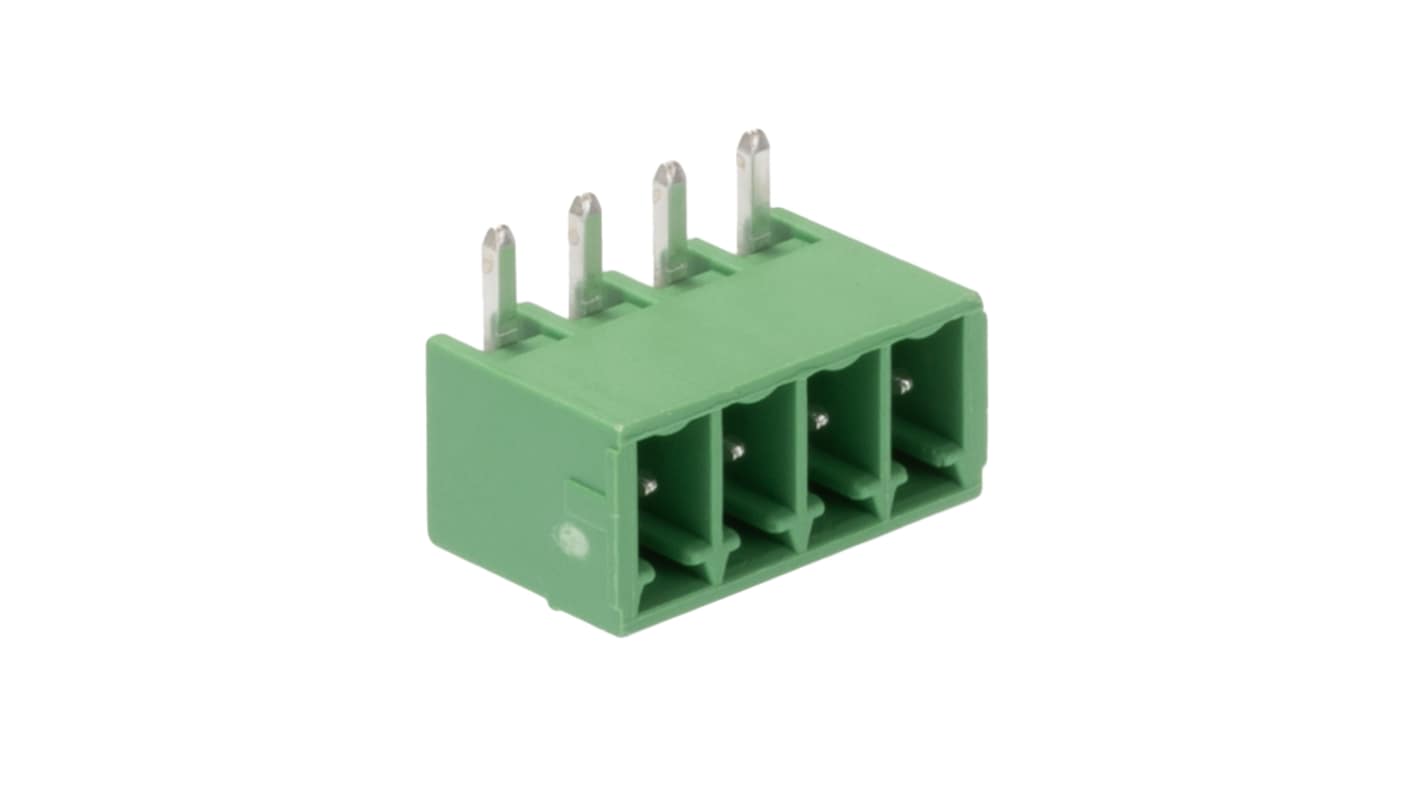

Phoenix Contact, 3.5mm Pitch, MC 1.5/4-G-3.5, 4 Way, , Pluggable Terminal Block, Header, Wave Soldering, Solder
- N° de stock RS:
- 804-2245
- Référence fabricant:
- 1844236
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Sous-total (1 unité)*
1,68 €
(TVA exclue)
2,03 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
En stock
- 58 unité(s) prête(s) à être expédiée(s)
- Plus 461 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 1,68 € |
| 10 - 24 | 1,50 € |
| 25 - 49 | 1,37 € |
| 50 - 99 | 1,22 € |
| 100 + | 1,11 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 804-2245
- Référence fabricant:
- 1844236
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Pluggable Terminal Block Type | Header | |
| Number of Contacts | 4 | |
| Pitch | 3.5mm | |
| Series | MC 1.5/4-G-3.5 | |
| Number of Rows | 1 | |
| Body Orientation | Straight | |
| Mounting Type | Wave Soldering | |
| Termination Method | Solder | |
| Current Rating | 8.0A | |
| Voltage Rating | 160 V | |
| Colour | Green | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Pluggable Terminal Block Type Header | ||
Number of Contacts 4 | ||
Pitch 3.5mm | ||
Series MC 1.5/4-G-3.5 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Mounting Type Wave Soldering | ||
Termination Method Solder | ||
Current Rating 8.0A | ||
Voltage Rating 160 V | ||
Colour Green | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
- Pays d'origine :
- DE
Phoenix Contact MC 1.5/4-G-3.5 Series Pluggable Terminal Block, 3.5mm Pitch, 8.0A Current Rating - 1844236
This pluggable terminal block presents a practical solution for efficiently connecting and disconnecting electrical circuits. It is particularly beneficial in automated systems, providing robust connectivity while allowing flexibility for maintenance and repairs. The design accommodates various applications, tackling wiring and connectivity challenges while enhancing overall system performance.
Features & Benefits
• Features a 3.5mm pitch connector for compact installations
• Straight body design simplifies mounting
• Supports wave soldering for efficient assembly
• Employs solder termination for durable connections
• Rated for 8A, suitable for high current Applications
• Straight body design simplifies mounting
• Supports wave soldering for efficient assembly
• Employs solder termination for durable connections
• Rated for 8A, suitable for high current Applications
Applications
• Compatible with automation devices for improved system integration
• Ideal for electrical panels requiring dependable connections
• Utilised in mechanical equipment to ensure optimal electrical flow
• Employed in control systems for precise functioning
• Accommodates various wiring configurations for adaptability
• Ideal for electrical panels requiring dependable connections
• Utilised in mechanical equipment to ensure optimal electrical flow
• Employed in control systems for precise functioning
• Accommodates various wiring configurations for adaptability
How should it be installed to ensure proper usage?
Follow the specified mounting guidelines and ensure all connections are securely soldered to prevent electrical issues.
Is it necessary to use specific tools for installation?
Utilising appropriate soldering equipment and tools for precise handling will optimise installation and performance.
What safety precautions should be considered during installation?
Ensure the power supply is disconnected, and use personal protective equipment for safety when handling the terminal block.
Phoenix Contact MINI COMBICON 3.5mm Two Part Terminal Blocks
