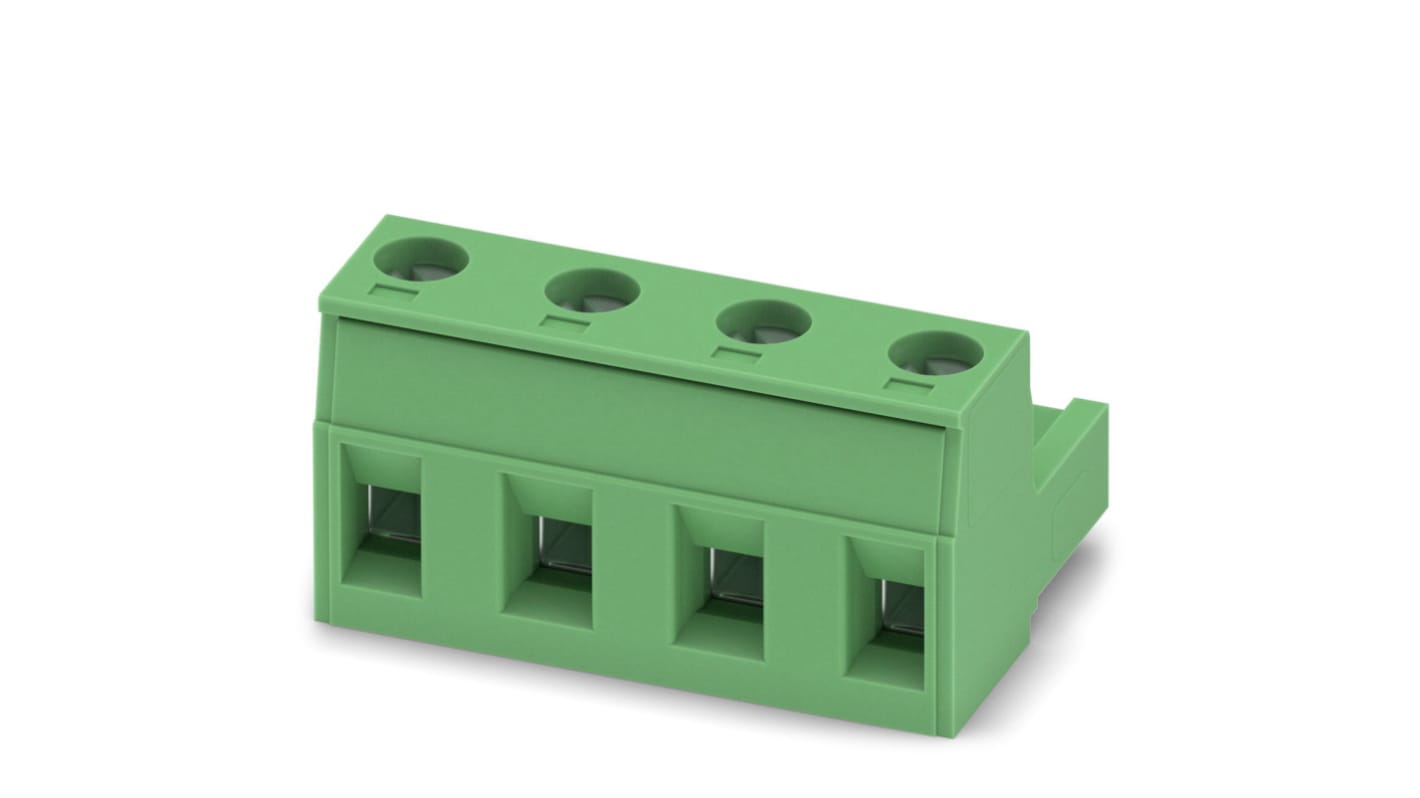

Phoenix Contact GMSTB 2.5/4-ST-7.62 Series Pluggable Terminal Block, 4-Contact, 7.62 mm Pitch, 1 Row
- N° de stock RS:
- 802-6205
- Numéro d'article Distrelec:
- 148-45-434
- Référence fabricant:
- 1767025
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
6,04 €
(TVA exclue)
7,31 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 25 unité(s) prête(s) à être expédiée(s)
- Plus 63 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 9 | 6,04 € |
| 10 - 24 | 5,44 € |
| 25 - 49 | 4,90 € |
| 50 - 99 | 4,39 € |
| 100 + | 3,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 802-6205
- Numéro d'article Distrelec:
- 148-45-434
- Référence fabricant:
- 1767025
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 4 | |
| Pitch | 7.62mm | |
| Current | 12A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Orientation | Straight | |
| Wire Connection Method | Screw Connection with Tension Sleeve | |
| Colour | Green | |
| Voltage | 630V | |
| Width | 18.2mm | |
| Length | 28.48mm | |
| Series | GMSTB 2.5/4-ST-7.62 | |
| Standards/Approvals | No | |
| Depth | 15mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 4 | ||
Pitch 7.62mm | ||
Current 12A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 12AWG | ||
Orientation Straight | ||
Wire Connection Method Screw Connection with Tension Sleeve | ||
Colour Green | ||
Voltage 630V | ||
Width 18.2mm | ||
Length 28.48mm | ||
Series GMSTB 2.5/4-ST-7.62 | ||
Standards/Approvals No | ||
Depth 15mm | ||
- Pays d'origine :
- DE
Phoenix Contact PCB Terminal Block, 1.3 mΩ Contact Resistance, 2.5 mm² Cross Section - GMSTB 2,5/ 4-ST-7,62 - 1767025
Want a tangle-free solution for your wiring setup? Choose this PCB Terminal Block from Phoenix Contact. As you can use it to connect up to four wires securely to your board, it streamlines operations. Copper alloy contacts are highly conductive and resistant to corrosion, which means minimal power loss and smooth performance. Thanks to 180° wire entry, the wires can be easily inserted and connected to the Terminal Block from either direction. This makes installation and maintenance simple.
This Block has PA insulators that are resistant to chemicals and wear, so it's a robust option that stands the test of time. With Compact dimensions of 28.48 (W) x 15 (H) x 18.2mm (L), it adds minimal bulk to your setup. A broad operating temperature between -40°C and +100°C ensures it's safe to use in harsh industrial environments to connect sensors and actuators to the control system.
Features & Benefits
• Wide pitch of 7.62mm means it's suitable for high-voltage applications
• Screw connection for secure and reliable setup
• 12A nominal current so it's widely compatible
• CSA, cULus, CB scheme, VDE and EAC certifications assure you of the unit's safety
