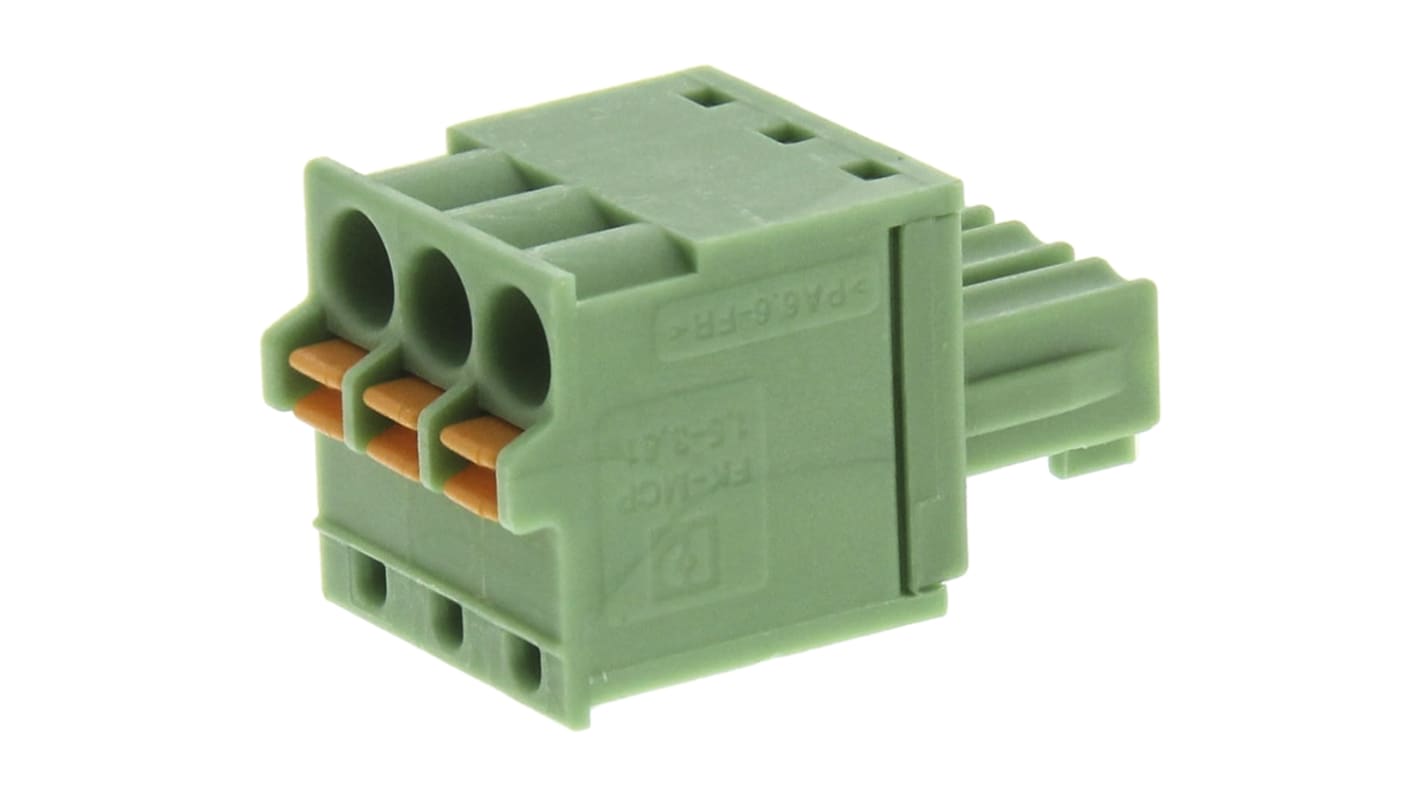

Phoenix Contact FK-MCP 1.5/3-ST-3.81 Series Pluggable Terminal Block, 3-Contact, 3.81 mm Pitch, 1 Row, 1851054
- N° de stock RS:
- 314-9811
- Référence fabricant:
- 1851054
- Fabricant:
- Phoenix Contact
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 5 unités)*
23,17 €
(TVA exclue)
28,04 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 70 unité(s) expédiée(s) à partir du 26 octobre 2026
- Plus 60 unité(s) expédiée(s) à partir du 26 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 120 | 4,634 € | 23,17 € |
| 125 - 370 | 3,874 € | 19,37 € |
| 375 - 995 | 3,588 € | 17,94 € |
| 1000 - 1995 | 3,192 € | 15,96 € |
| 2000 + | 3,036 € | 15,18 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 314-9811
- Référence fabricant:
- 1851054
- Fabricant:
- Phoenix Contact
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Phoenix Contact | |
| Product Type | Pluggable Terminal Block | |
| Number of Contacts | 3 | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 8A | |
| Minimum Wire Size mm² | 0.14mm² | |
| Housing Material | Nylon | |
| Connector Gender | Female | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | Straight | |
| Colour | Green | |
| Wire Connection Method | Spring Cage | |
| Voltage | 320V | |
| Depth | 12.4mm | |
| Standards/Approvals | RoHS | |
| Width | 12.22mm | |
| Series | FK-MCP 1.5/3-ST-3.81 | |
| Length | 21mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Phoenix Contact | ||
Product Type Pluggable Terminal Block | ||
Number of Contacts 3 | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 8A | ||
Minimum Wire Size mm² 0.14mm² | ||
Housing Material Nylon | ||
Connector Gender Female | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation Straight | ||
Colour Green | ||
Wire Connection Method Spring Cage | ||
Voltage 320V | ||
Depth 12.4mm | ||
Standards/Approvals RoHS | ||
Width 12.22mm | ||
Series FK-MCP 1.5/3-ST-3.81 | ||
Length 21mm | ||
- Pays d'origine :
- DE
Phoenix Contact MINI COMBICON FK-MCP 3.81mm Terminal Block Plug Connectors
The FK-MCP series from Phoenix Contact are MICRO COMBICON plug-in PCB connectors. These connectors are made user-friendly with no tools needed for installation as it is simply a push in technology, along with a defined contact force the ensures the connection remains stable over the long term. Not to mention, these PCB connectors are easily tested with a 1mm diameter test connector that simply plugs in, allowing for rapid testing. The FK-MCP series are rated for 8 A with a voltage of 160 V and boasts a 3.81mm pitch for versatile use.
The contact material is the FK-MCP connectors are Cu (Copper) alloy and they're built in a green polyamide housing. Colour coded actuation levers can be found on the front and allow you to form a strong connection without the need for any specialist tools.
Features and benefits:
Applications:
The MICRO COMBICON series can be used typically in applications such as, but not limited to, control wiring, instrumentation, control and measurement and industrial electronics.
Approvals
UL (E60425); CSA (LR13631)
