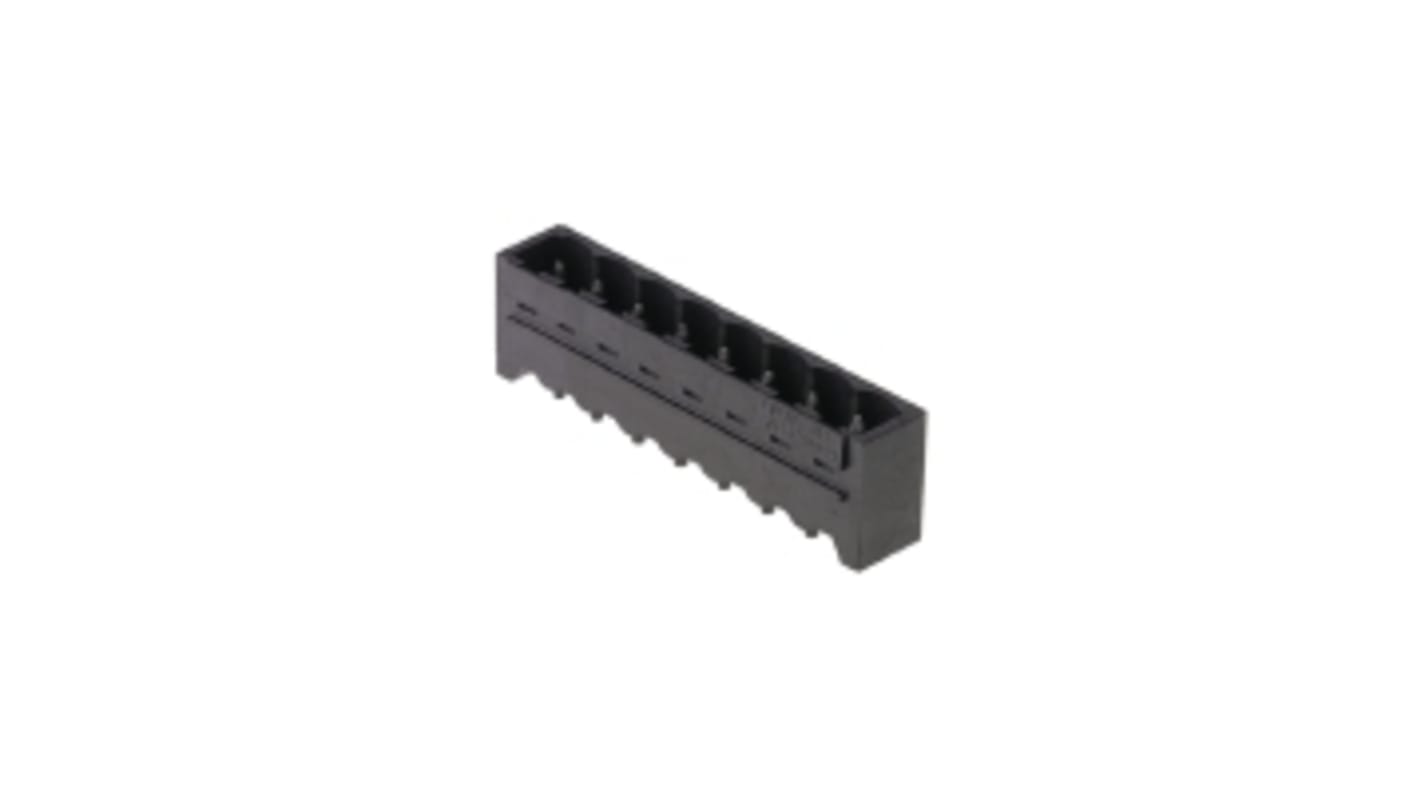

Weidmüller SL Series Pluggable Terminal Block, 7-Contact, 5.08 mm Pitch, 1 Row
- N° de stock RS:
- 176-7811
- Référence fabricant:
- 1838260000
- Fabricant:
- Weidmüller
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 5 unités)*
8,94 €
(TVA exclue)
10,815 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 23 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 5 | 1,788 € | 8,94 € |
| 10 - 20 | 1,622 € | 8,11 € |
| 25 - 45 | 1,542 € | 7,71 € |
| 50 - 95 | 1,462 € | 7,31 € |
| 100 + | 1,392 € | 6,96 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 176-7811
- Référence fabricant:
- 1838260000
- Fabricant:
- Weidmüller
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Weidmüller | |
| Number of Contacts | 7 | |
| Product Type | Pluggable Terminal Block | |
| Pitch | 5.08mm | |
| Number of Rows | 1 | |
| Current | 18.5A | |
| Housing Material | Copper Magnesium Alloy, Liquid Crystal Polymer Fibreglass | |
| Connector Gender | Male | |
| Orientation | Straight | |
| Wire Connection Method | Solder | |
| Colour | Black | |
| Voltage | 400V | |
| Length | 15.2mm | |
| Series | SL | |
| Standards/Approvals | No | |
| Width | 37.46mm | |
| Depth | 8.5mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Weidmüller | ||
Number of Contacts 7 | ||
Product Type Pluggable Terminal Block | ||
Pitch 5.08mm | ||
Number of Rows 1 | ||
Current 18.5A | ||
Housing Material Copper Magnesium Alloy, Liquid Crystal Polymer Fibreglass | ||
Connector Gender Male | ||
Orientation Straight | ||
Wire Connection Method Solder | ||
Colour Black | ||
Voltage 400V | ||
Length 15.2mm | ||
Series SL | ||
Standards/Approvals No | ||
Width 37.46mm | ||
Depth 8.5mm | ||
- Pays d'origine :
- DE
High-temperature-resistant, 180°-angled male header, optimised for SMT processing. The male headers can be manually coded or ordered as pre-coded headers.
Available in open, closed (G), with screw flange (F) or with solder Flange (LF).
The solder flange substitutes a screw fastening to the PCB and protects the solder joints aganist mechanical stress.
Available with 1.5 mm or 3.2 mm solder pins.
The short 1.5 mm pins enable a double-sided PCB mounting and reduce the needed amount of solder paste without losing holding force to the PCB.
Packed either in box (BX) or on anti-static roll (tape-on-reel, RL).
